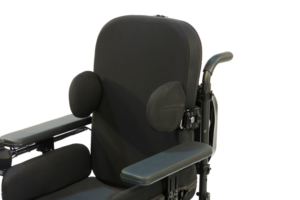

Spex lateral trunk supports offer adjustability, comfort and positioning
- Modular lateral supports provide optimum trunk control whilst improving balance, posture and comfort
- Offset correction can be applied to an asymmetric trunk to bring better trunk alignment for enhanced function
- Super comfortable pressure-reduction padding for moulding to user shape
- Removable and washable covers
- Brackets are adjustable in all planes: height, width, depth and lateral angle for ultimate trunk orientation
- Spex brings you modular creativity! Mix and match with different pad combinations
- Provide trunk control and stability with the ability to install a lateral in multiple positions on the back support
How to script Spex Lateral Trunk Supports
Select Hardware
Select Pad

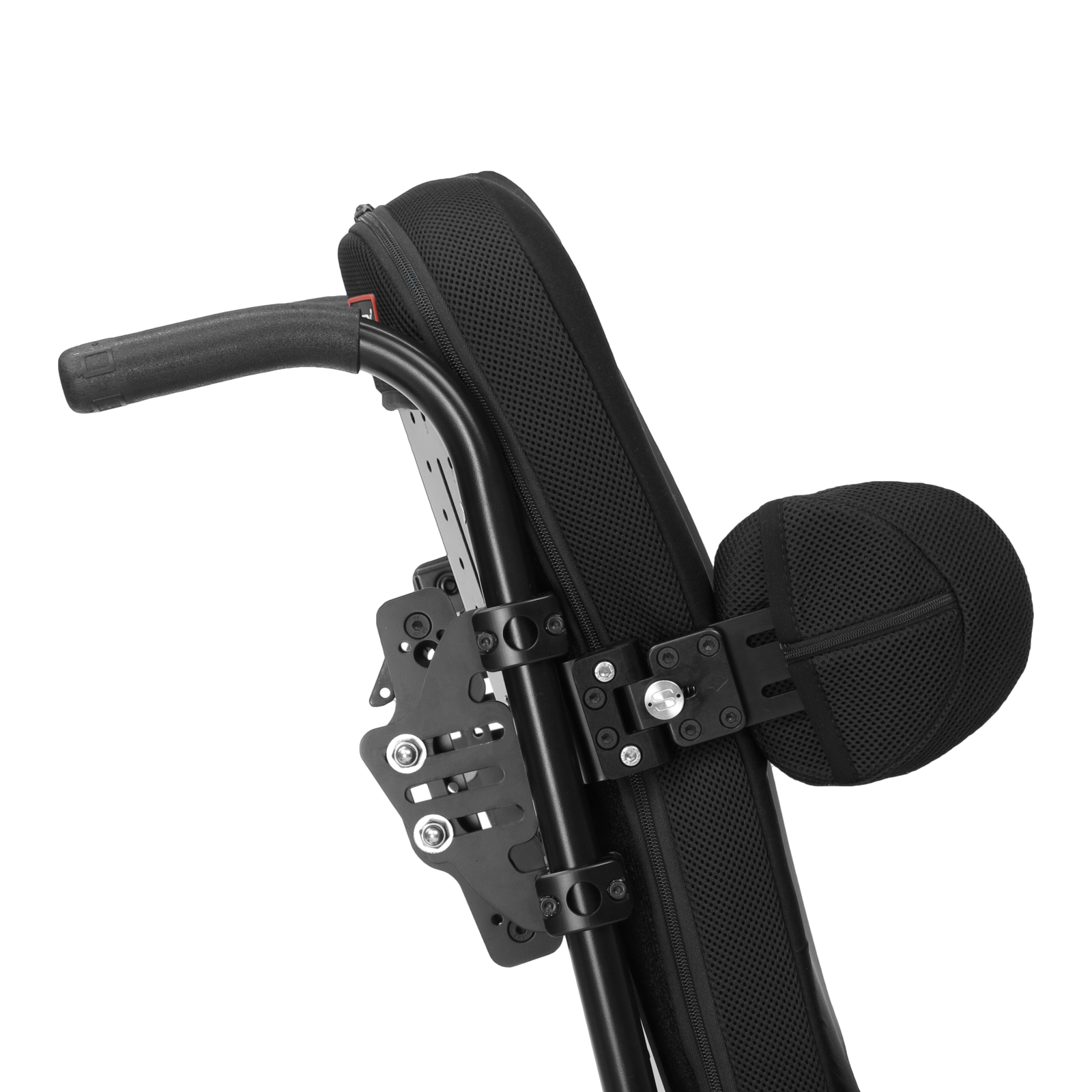

| Swing-Away, Straight Brackets | Code | Bracket length | Depth Adjustment |
|---|---|---|---|

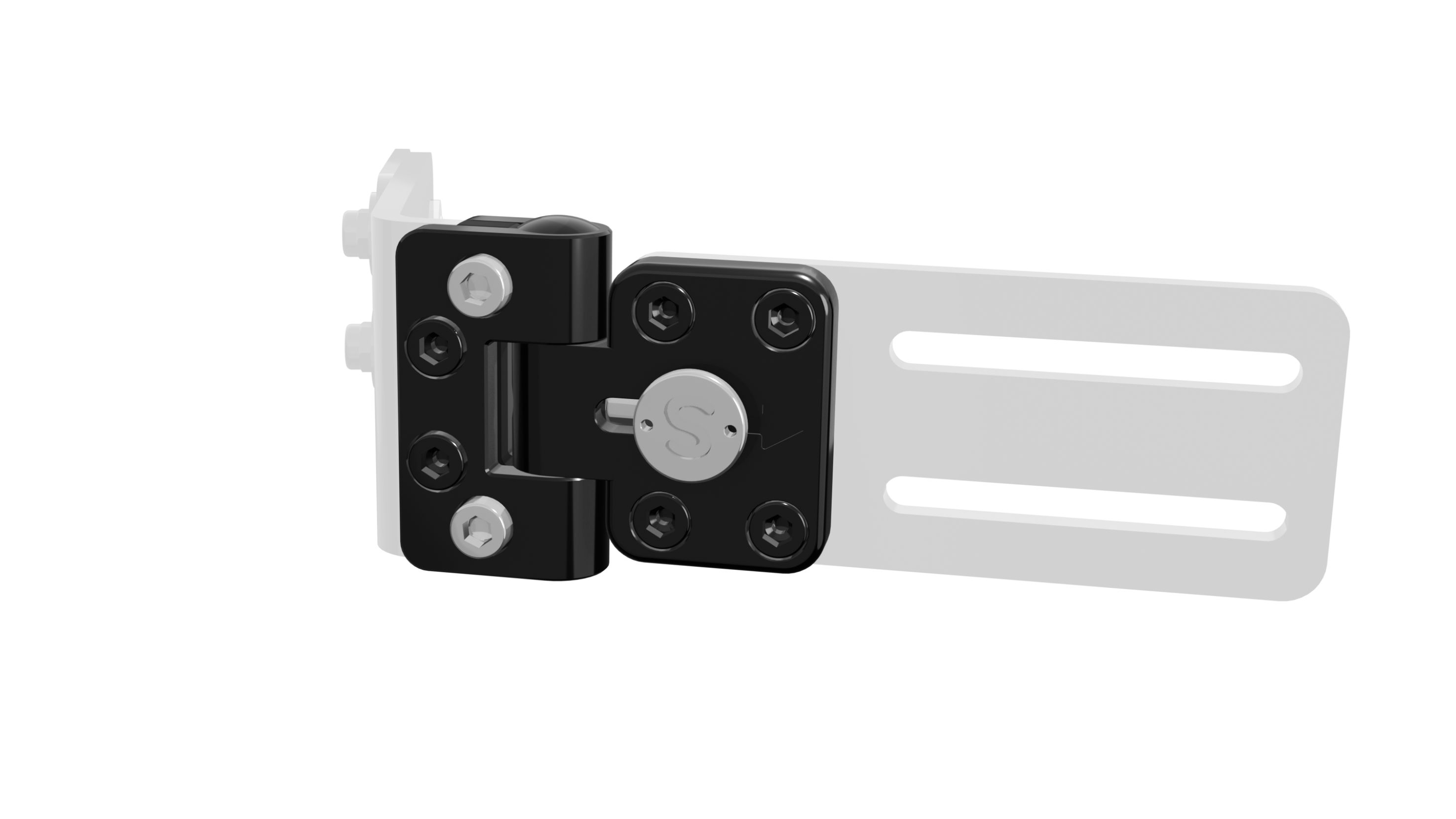

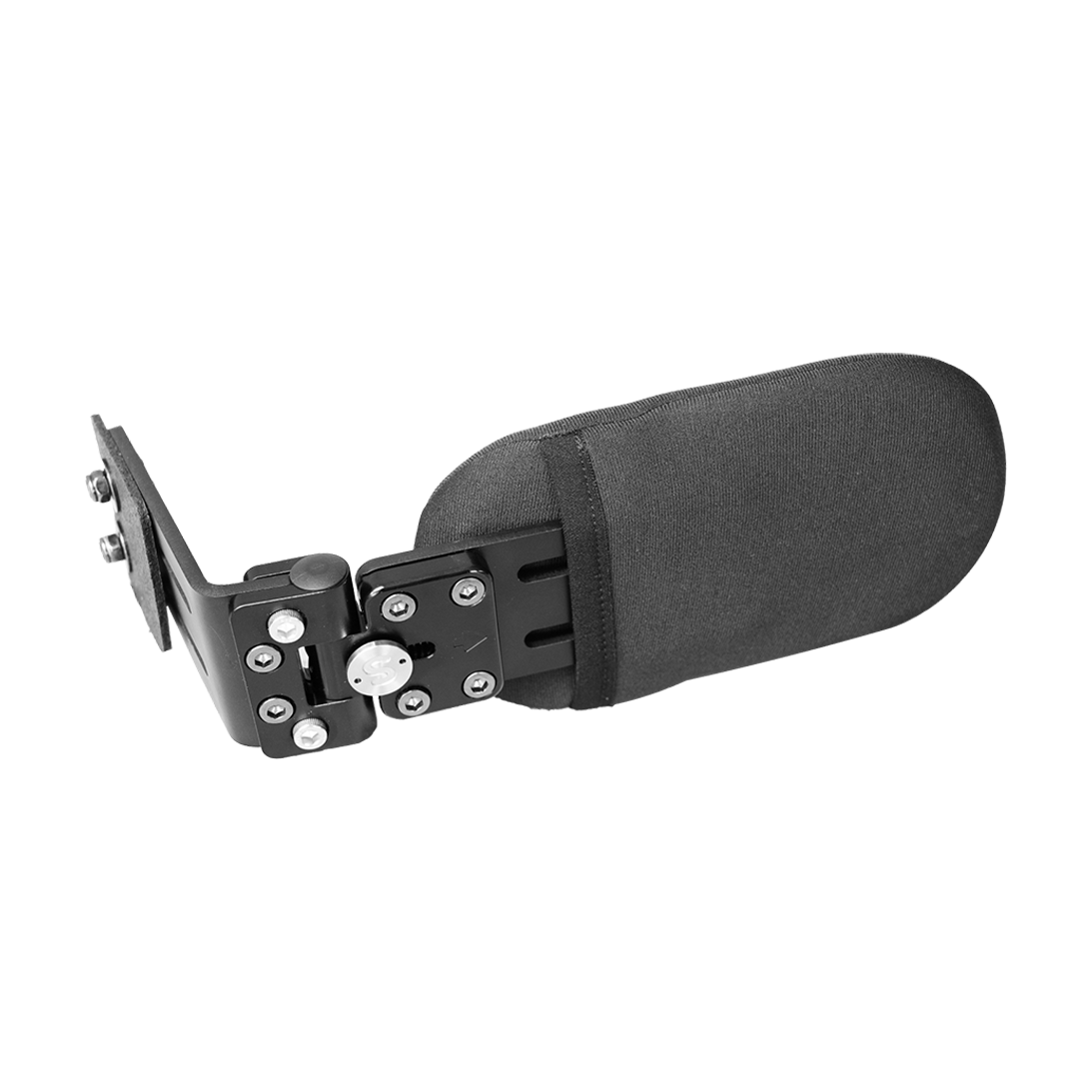

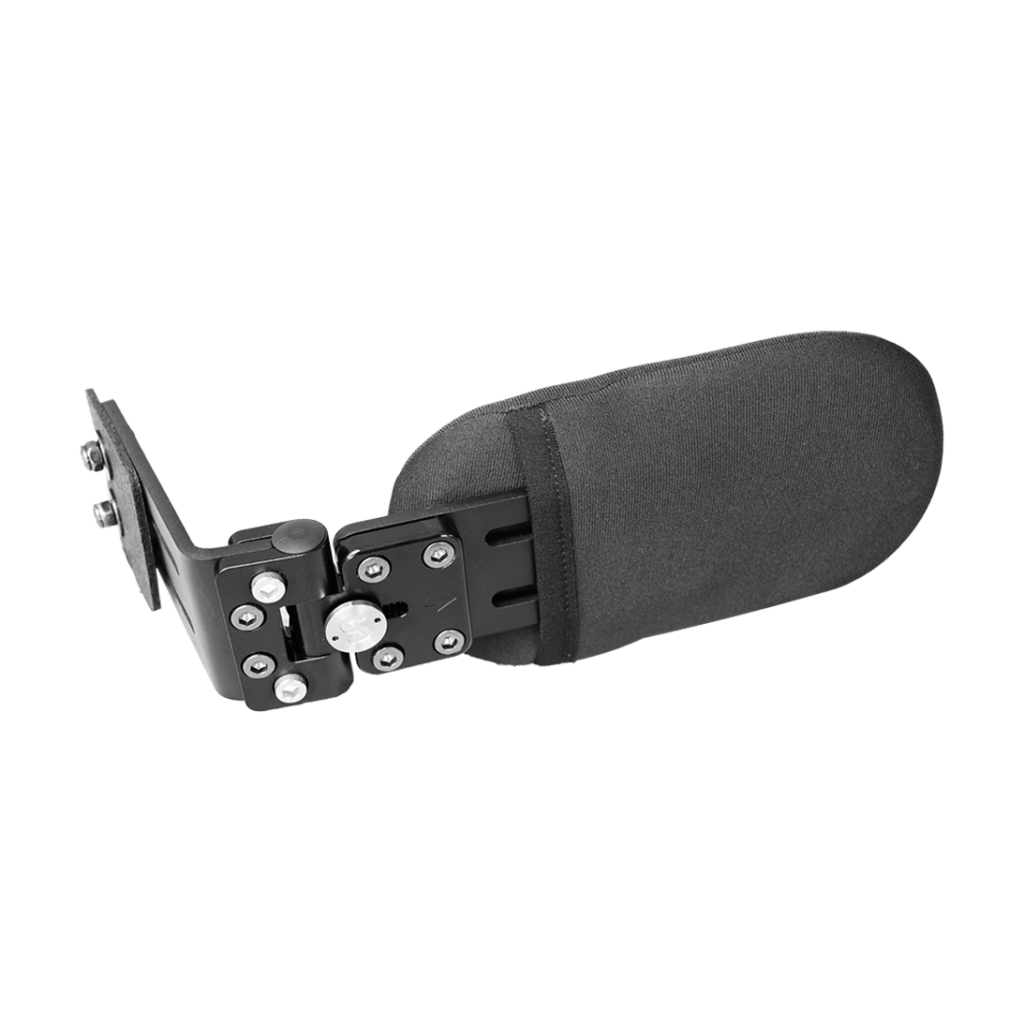

| Swing-Away | 1266-2201-100 | 175 mm | 60 mm |
| Kidz Swing-away | 1266-2211-100 | 134 mm | 31 mm |

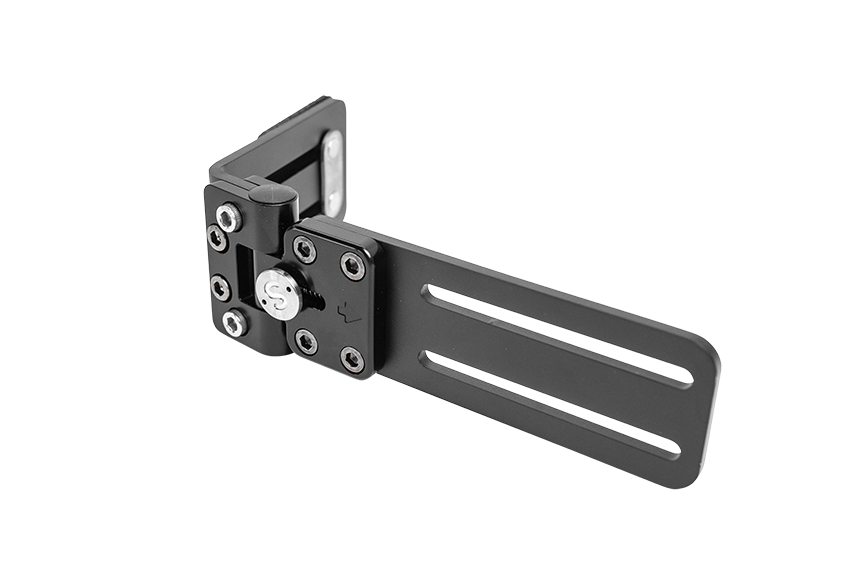

| Swing-Away, Extended | 1266-2202-100 | 205 mm | 85 mm |
| Swing-Away, Offset Brackets | Code | Bracket Length | Offset | Depth Adjustment |
|---|---|---|---|---|
| Swing-Away, Offset | 1266-2203-100 | 175 mm | 20 mm | 38 mm |
| Kidz Swing-Away, Offset | 1266-2213-100 | 134 mm | 15 mm | 32 mm |

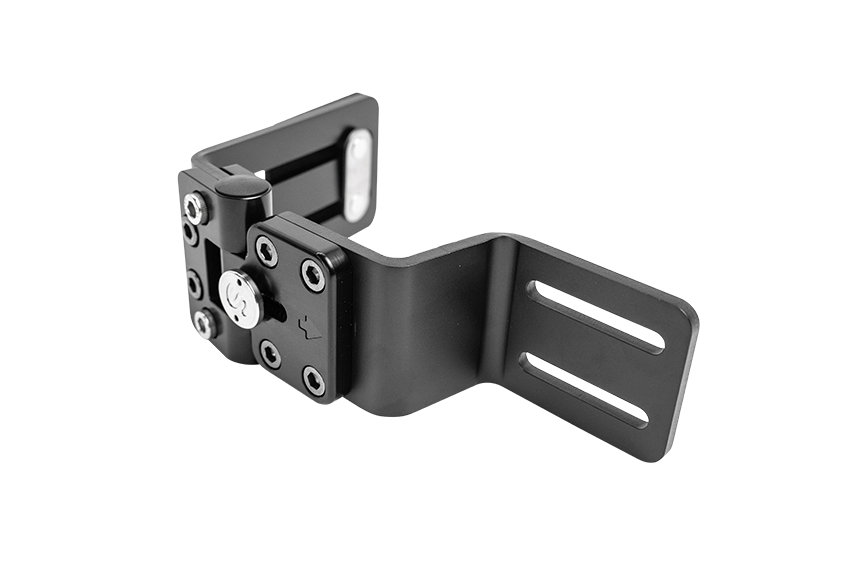

| Swing-Away, Offset Extended | 1266-2204-100 | 205 mm | 40 mm | 38 mm |
Select lateral support pad from Narrow Straight, Narrow Curved or Broad pad ranges here.

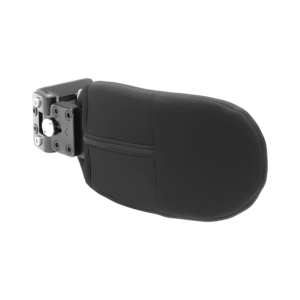

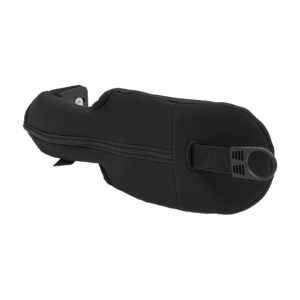

| Standard | Comfy-Cover |
|---|---|
 |
 |
| Pad Style | Height | Depth | Pad with Standard Cover | Pad with Comfy Cover |
|---|---|---|---|---|
| Narrow Straight 0 | 85 mm | 115 mm | 1266-3010-400 | 1266-3010-800 |
| Narrow Straight 1 | 95 mm | 145 mm | 1266-3011-400 | 1266-3011-800 |
| Narrow Straight 2 | 95 mm | 180 mm | 1266-3012-400 | 1266-3012-800 |
| Narrow Straight 3 | 115 mm | 210 mm | 1266-3013-400 | 1266-3013-800 |
| Narrow Straight 4 | 115 mm | 240 mm | 1266-3014-400 | 1266-3014-800 |
| Narrow Curved 1 | 95 mm | 145 mm | 1266-3021-400 | 1266-3021-800 |
| Narrow Curved 2 | 95 mm | 180 mm | 1266-3022-400 | 1266-3022-800 |
| Narrow Curved 3 | 115 mm | 210 mm | 1266-3023-400 | 1266-3023-800 |
| Narrow Curved 4 | 115 mm | 240 mm | 1266-3024-400 | 1266-3024-800 |
| Broad 1 | 105 mm | 130 mm | 1266-3031-400 | 1266-3031-800 |
| Broad 2 | 125 mm | 140 mm | 1266-3032-400 | 1266-3032-800 |
| Broad 3 | 140 mm | 150 mm | 1266-3033-400 | 1266-3033-800 |
| Broad 4 | 160 mm | 155 mm | 1266-3034-400 | 1266-3034-800 |
| Broad 5 | 195 mm | 165 mm | 1266-3035-400 | 1266-3035-800 |
| Broad 6 | 230 mm | 175 mm | 1266-3036-400 | 1266-3036-800 |
