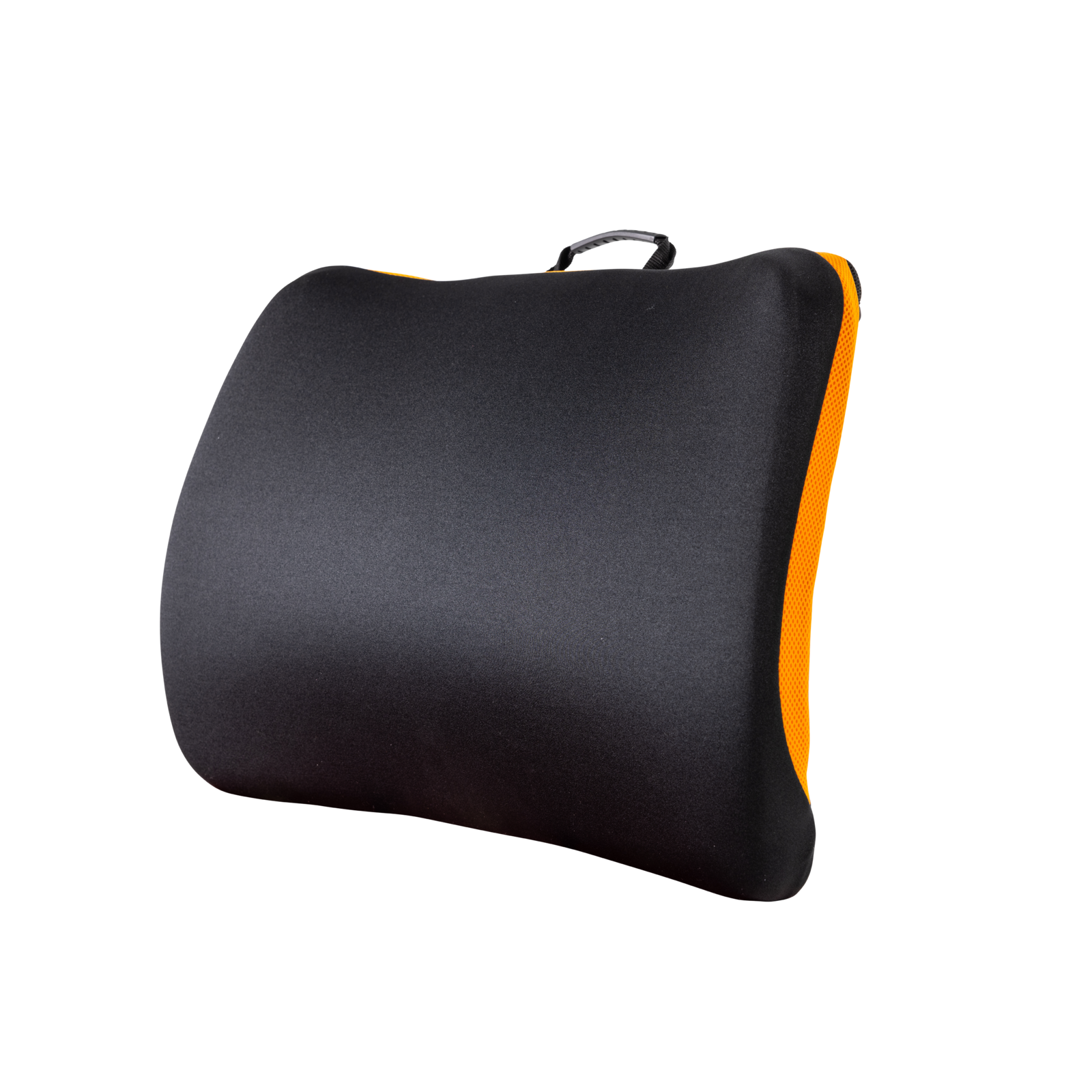

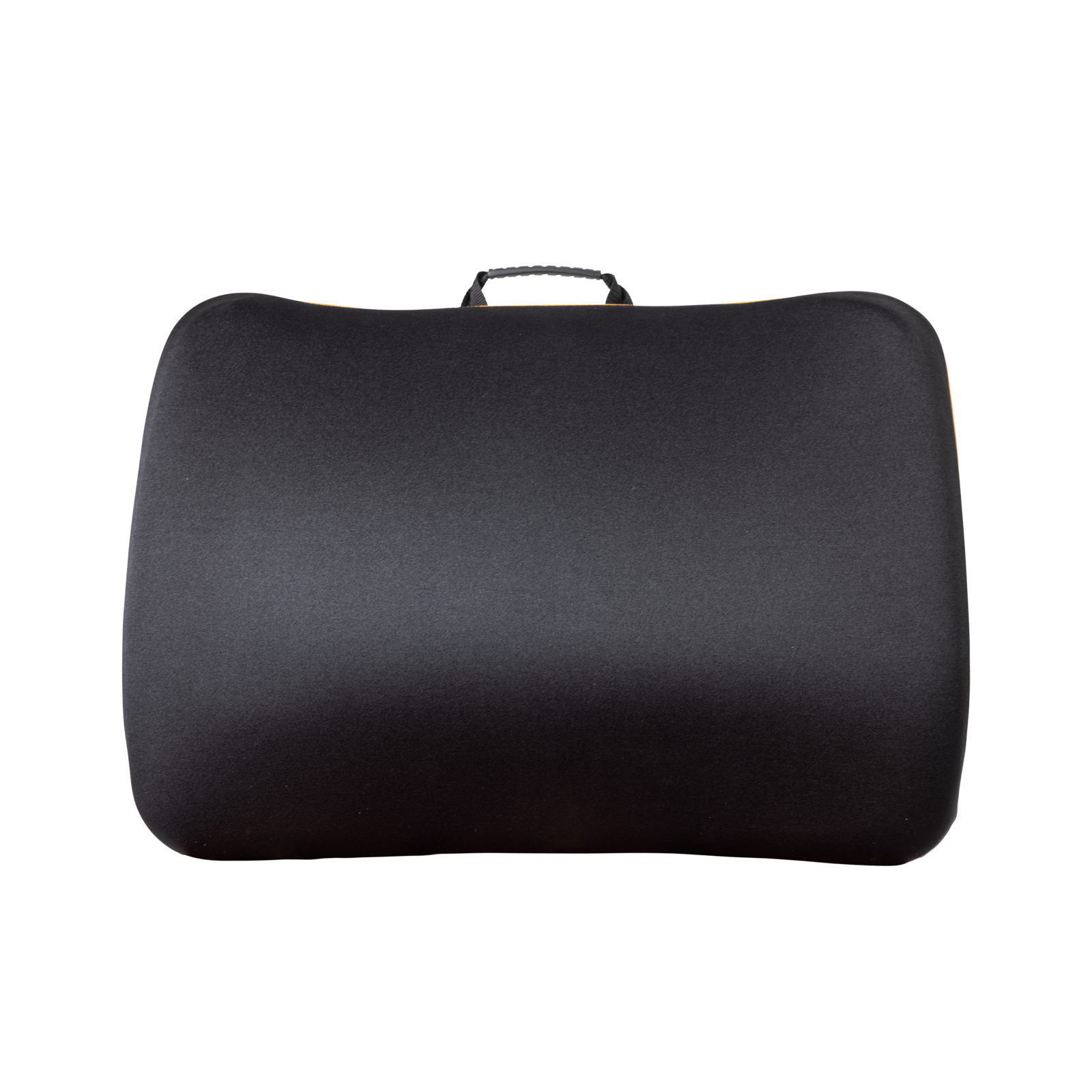

XLella2 Bariatric

Back Support

A biangular back support with two adjustable sections to accommodate gluteal shelf and excess adipose tissue, for bariatric wheelchair users up to 300kg.

The XLella² provides a higher degree of trunk support by offloading the posterior side of the pelvis to accommodate a gluteal shelf. Its lower section has a total of 85⁰ of adjustment, with 55⁰ posterior and 30⁰ anterior. This maximises pressure distribution and relief, to assure adequate postural support, and ultimately provide comfort.

The bariatric population presents specific seating challenges. Positioning the pelvis in neutral may not be possible because excessive soft tissue limits the ability to control the position of the pelvis and spine, therefore, it is essential to provide adequate pressure distribution and relief, heat and moisture control, and ultimately, comfort.

The excessive adipose tissue in the gluteal region (gluteal shelf) can also prevent bariatric users from sitting with adequate spinal support, which can contribute to back pain. Offering solutions to accommodate the unique posterior shape created by this redundant tissue is paramount.

XLella bariatric range consists of back supports and cushions, which span from 22” to 28” width, with options for custom items up to 32”.

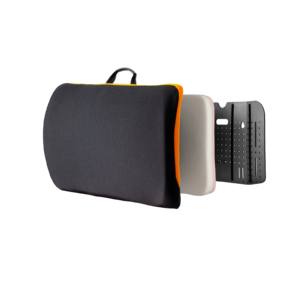

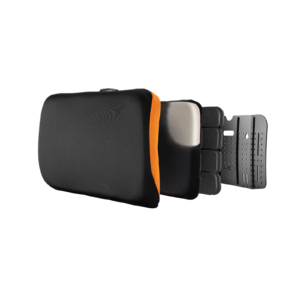

The XLella back supports provide an off-the-shelf solution, with integrated adjustability and adaptability for potential changing needs. These are available in three different styles to meet the individual requirements and body shapes of the user, XLella Vigour, XLella Classic, and XLella². All models are transport certified and have a weight capacity of up to 300kg.

Gallery

Functional

Benefits

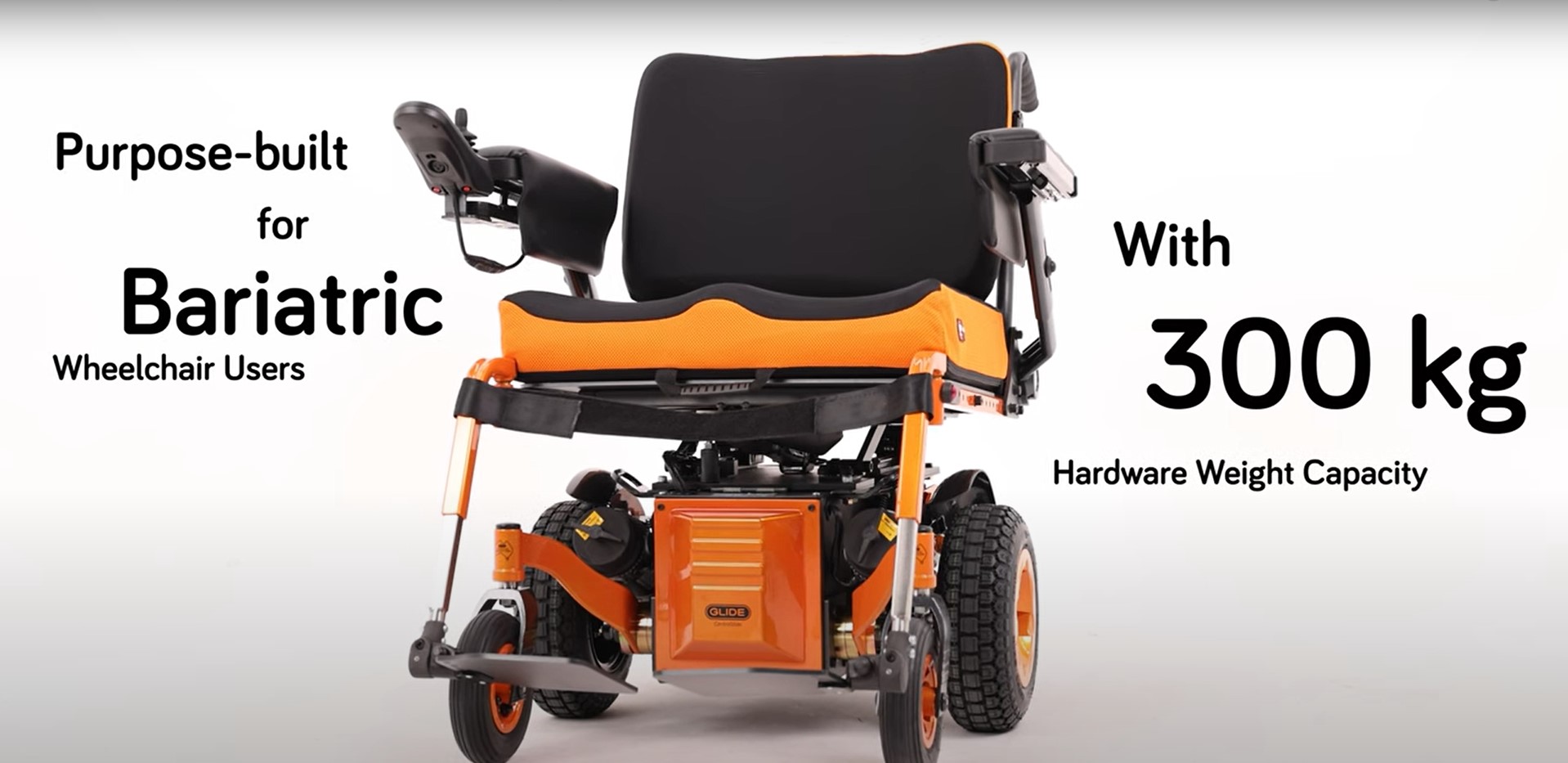

Purpose-Built for Bariatric Wheelchair Users

Heavy-Duty and tough to meet the daily lifestyle demands of bariatric wheelchair users. The robust shell and hardware are not only tested and rated for heavier users up to 300kg, but their biomechanical design provides superior postural support and comfort for larger body shapes.

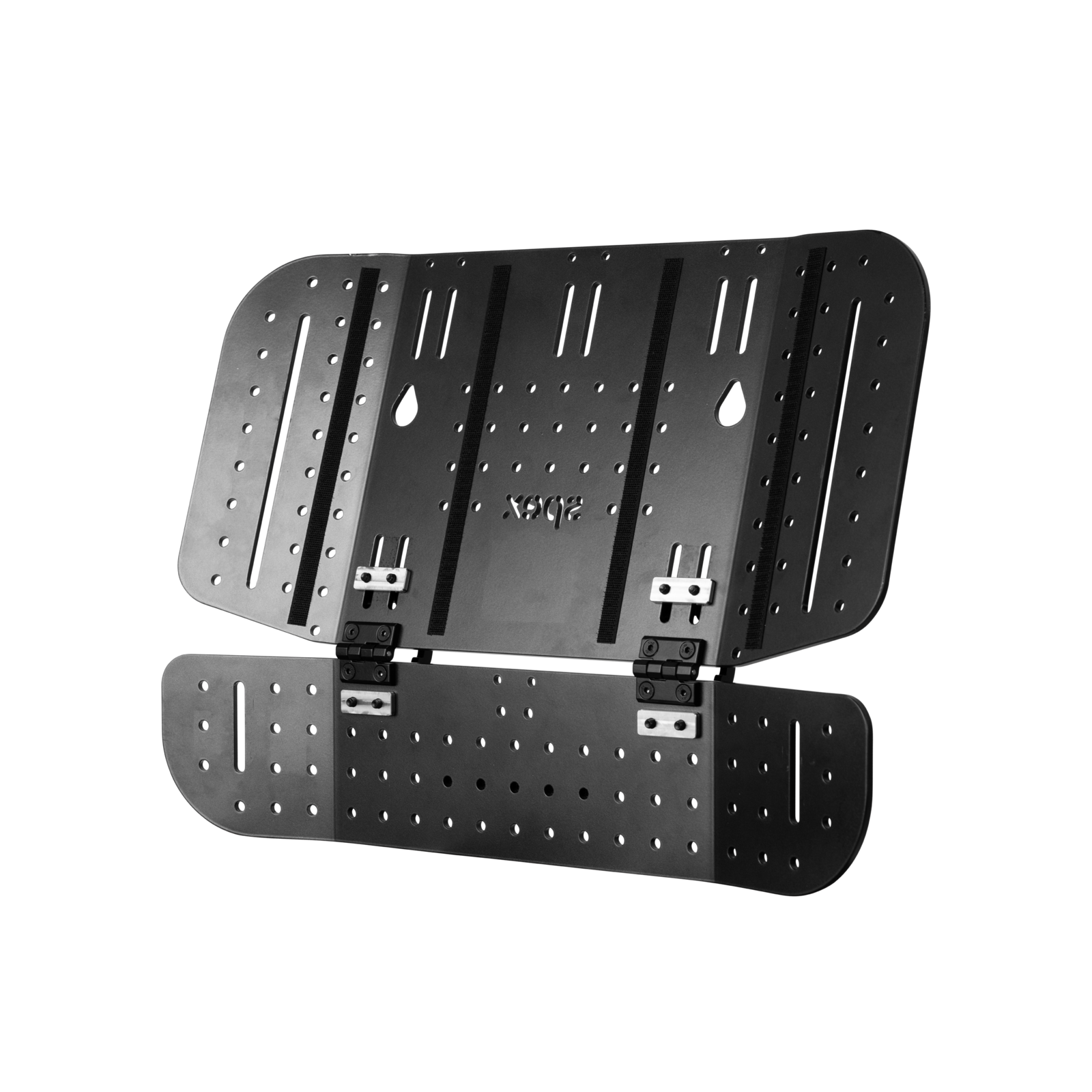

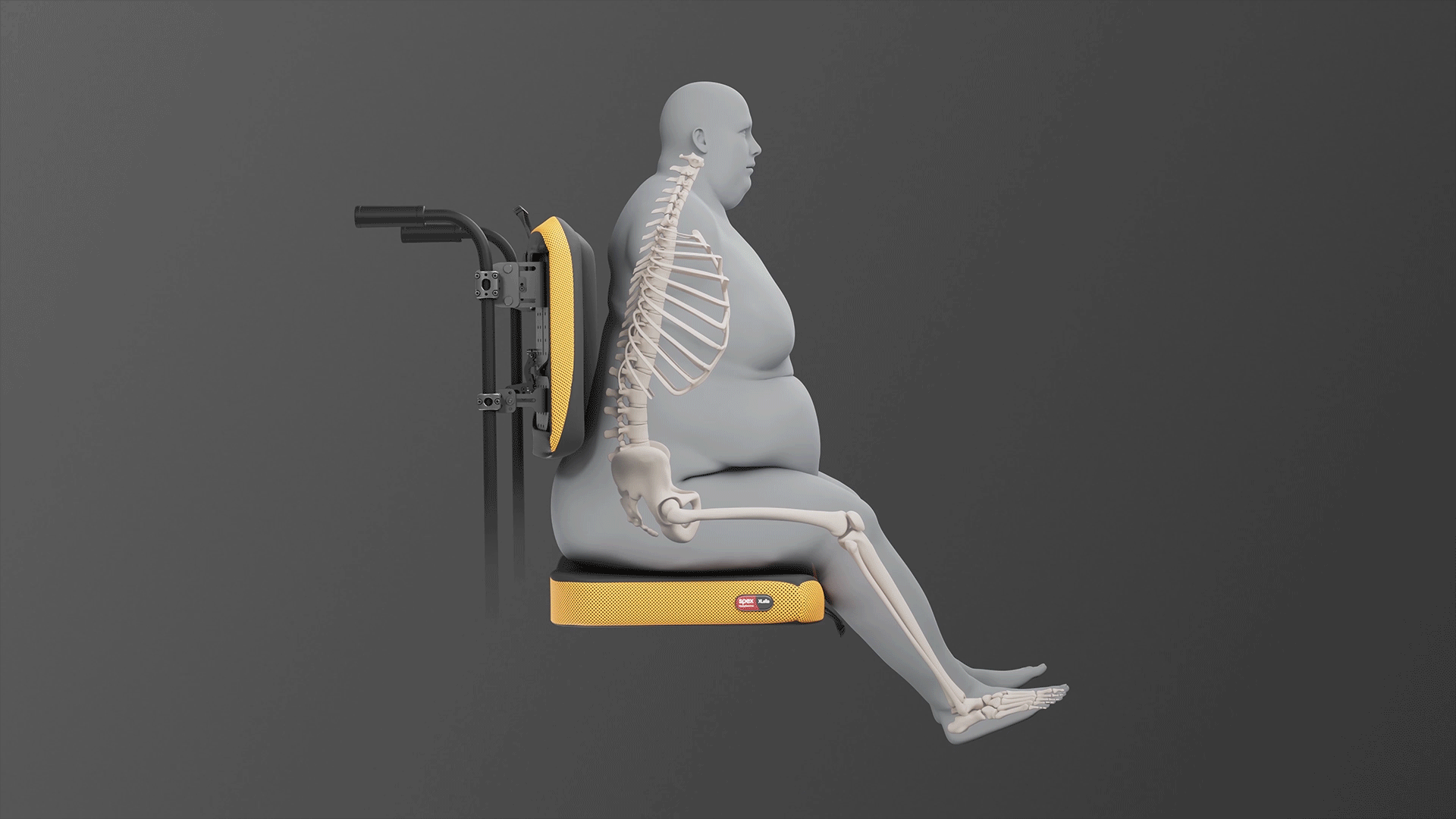

Adaptive Profile Curvature System Contours to the Individual's Shape

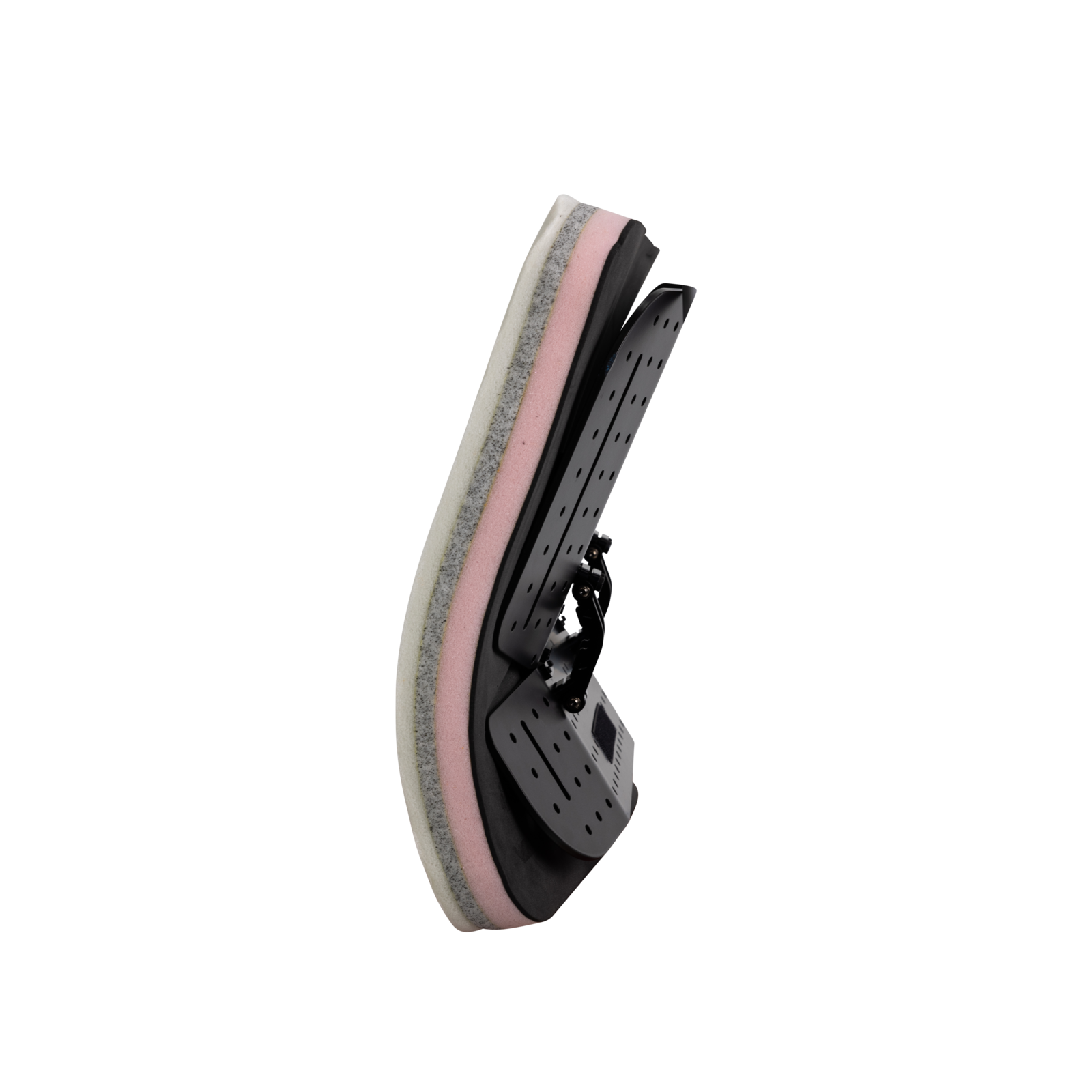

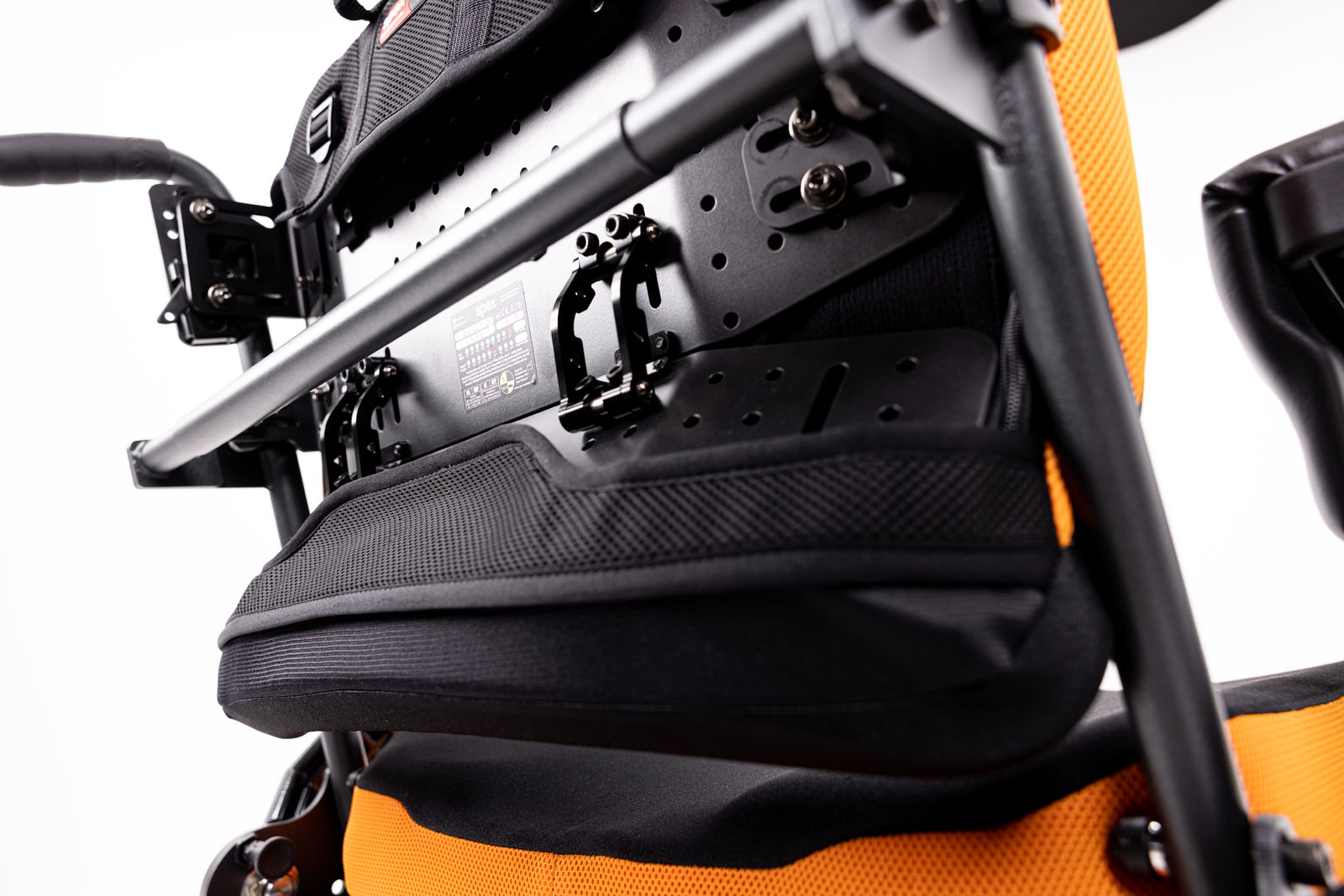

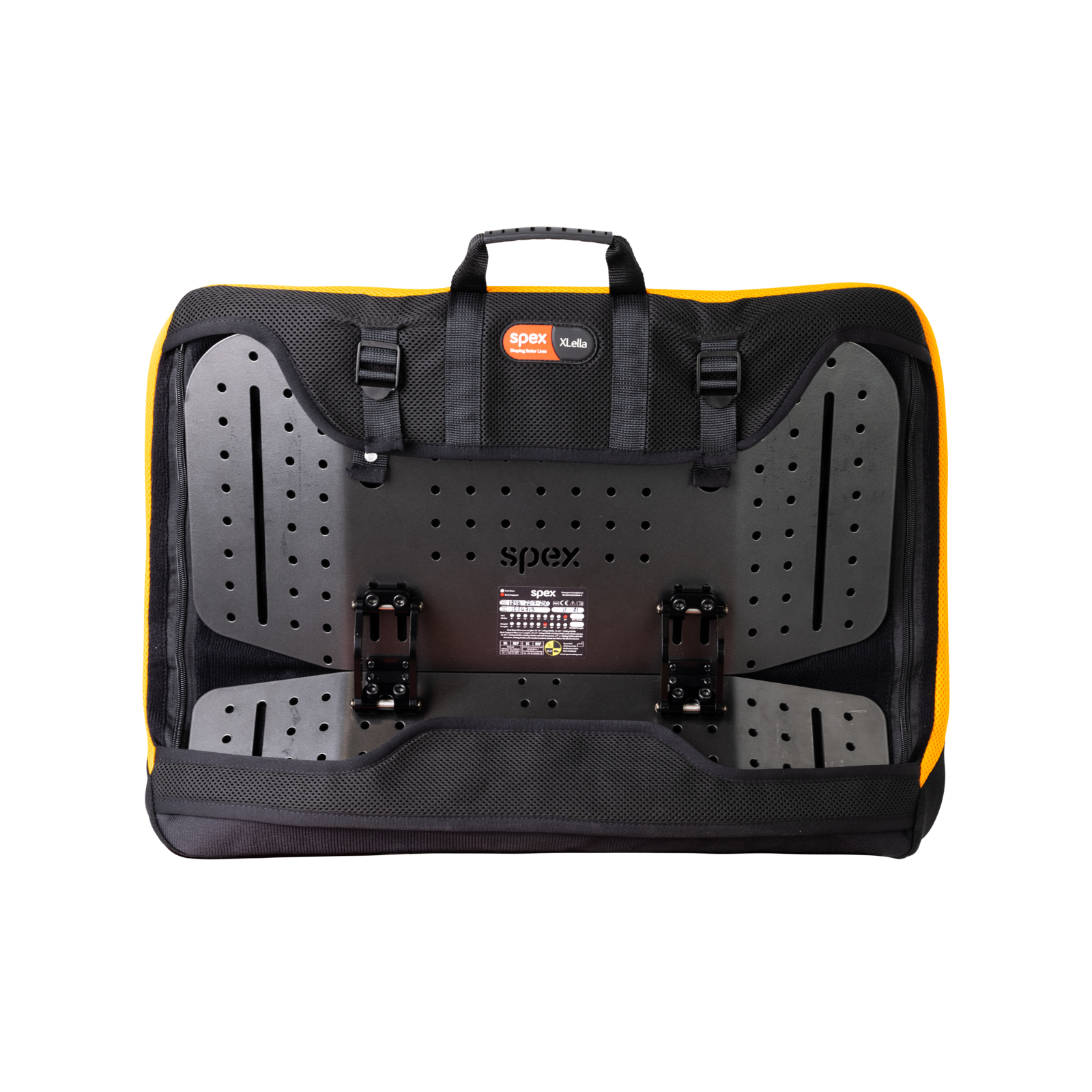

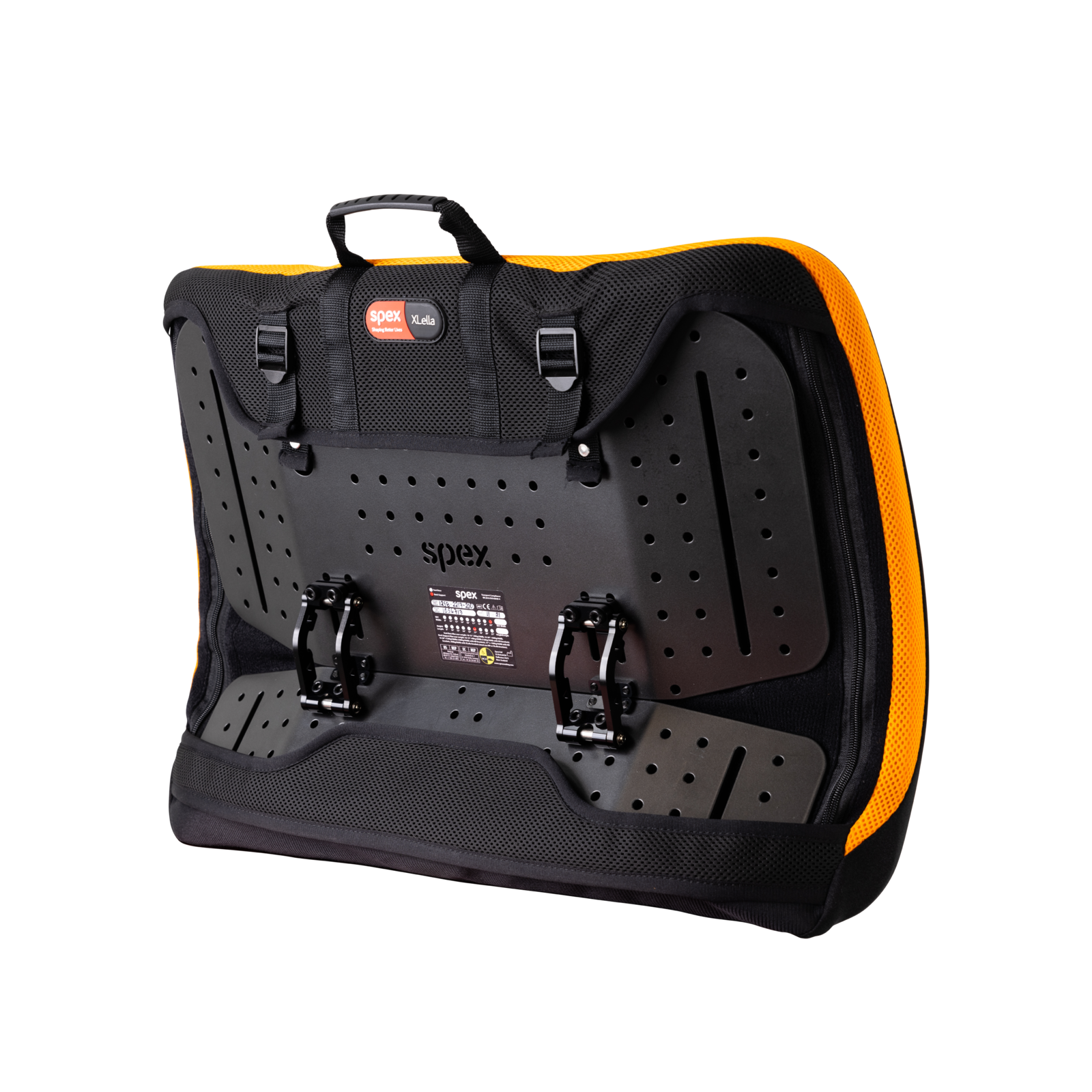

The XLella2 model of Back Support provides effective positioning through the adaptive Profile Curvature System that contours to the shape of the individual. Its lower section has a total of 85° of adjustment, with 55° posterior and 30° anterior. Match trunk profile with Adapta-Points and tighten to secure. Once tightened you can be confident the system will stay in place. Adjustments are made through each shell section offering flexibility as positioning needs change over time.

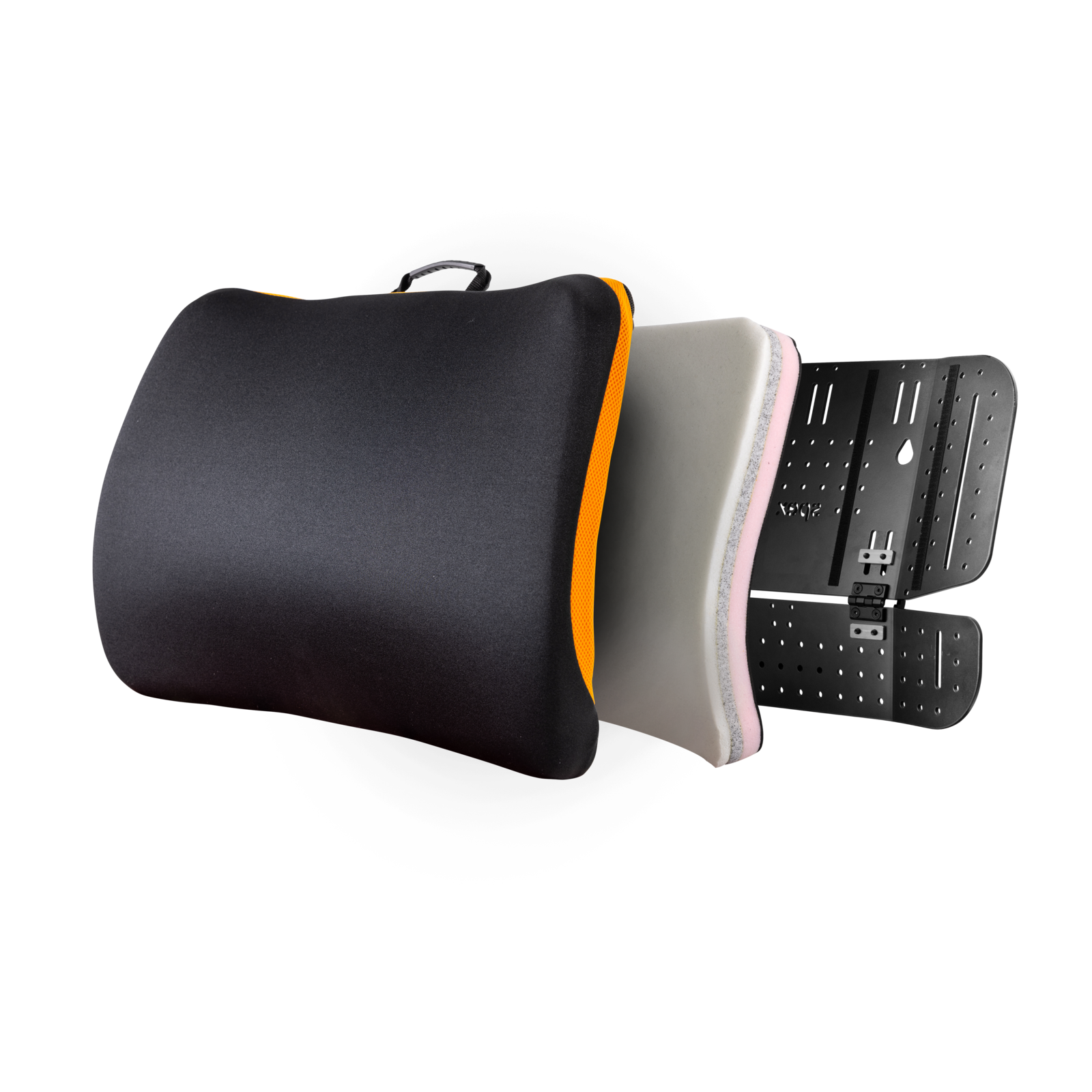

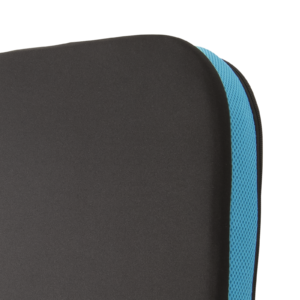

Dual-layer Outer Cover Technology

Dual-layer technology in the back support cover reduces shear forces, combatting the likelihood of chafing and pressure sores. With air-mesh side panels and moisture-wicking front surface fabric; build-up of heat and moisture is limited. Covers can be easily removed and refitted after laundering.

Easily Provide Additional Positioning

Increased positioning can be achieved through the use of wedge accessories and tessellated shapes for adaptable contouring. Accessible cover design enables easy insertion of positioning components through zippers on the side of the padding.

Media

Taps: "Living life to the fullest"

The XLella Family: Premium Bariatric Wheelchair Seating

Watch video

Resources

Spex XLella Flyer 47.56 MB Spex XLella Script 1.61 MB Spex XLella Fitting Guide 0.66 MB Spex Comparison Chart - Back Supports (International) 0.40 MB Spex Solutions Guide_XLella_202407 3.17 MB

Hardware

Options

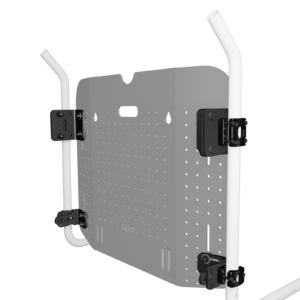

XLella Fixed Mount Bariatric Back Support Hardware

Default hardware choice for simplicity, with lower hardware weight. Fixes the back to the wheelchair for sturdy installation. Can easily be set in flipped configuration to allow greater seat depth adjustment.

Code: 1259-2500-100

XLella Quick Release Bariatric Back Support Hardware

Allows easy removal of back support for use with folding wheelchairs or in situations the back is required to be removed.

Code: 1259-2505-100

Specifications

Measurements

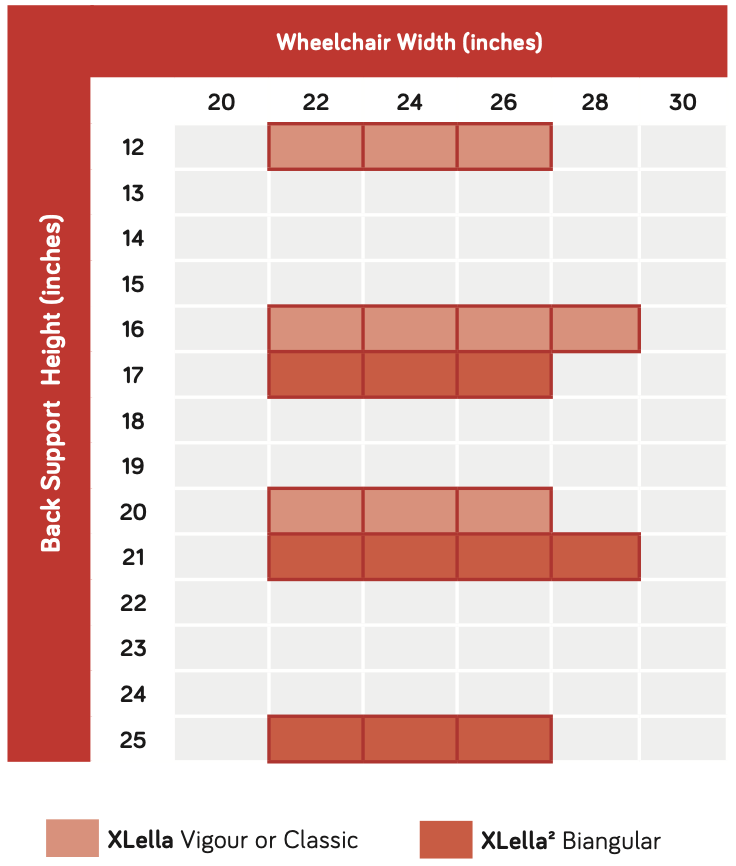

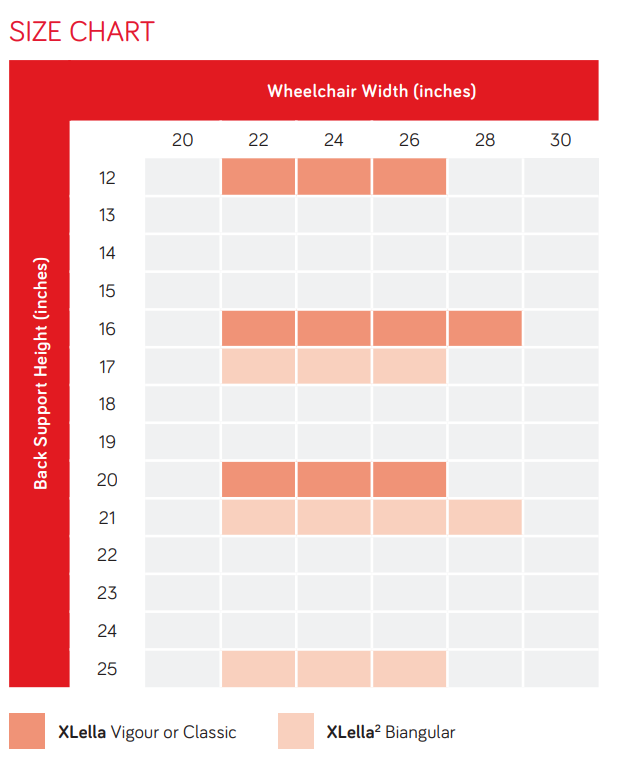

XLella Back Support Sizing Chart

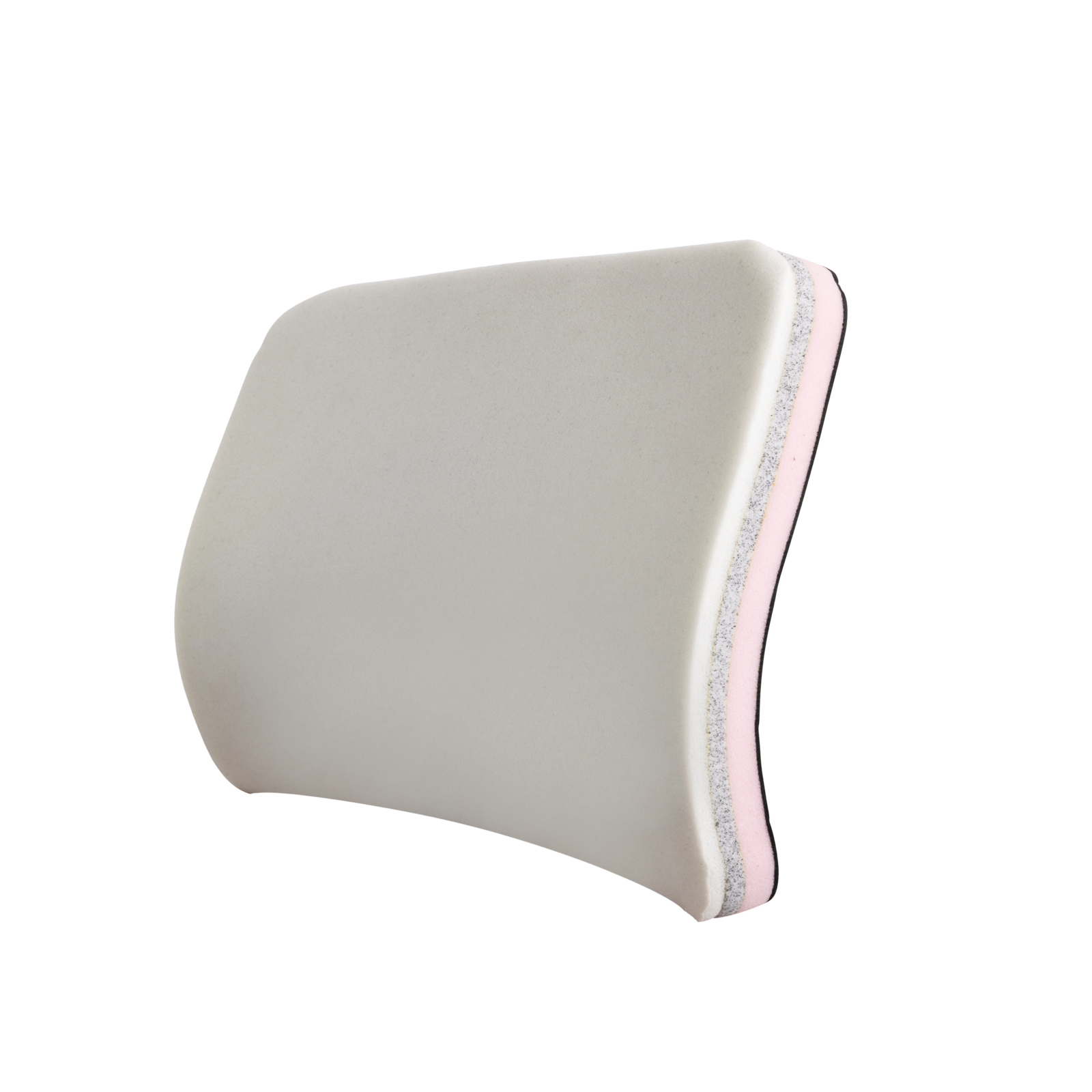

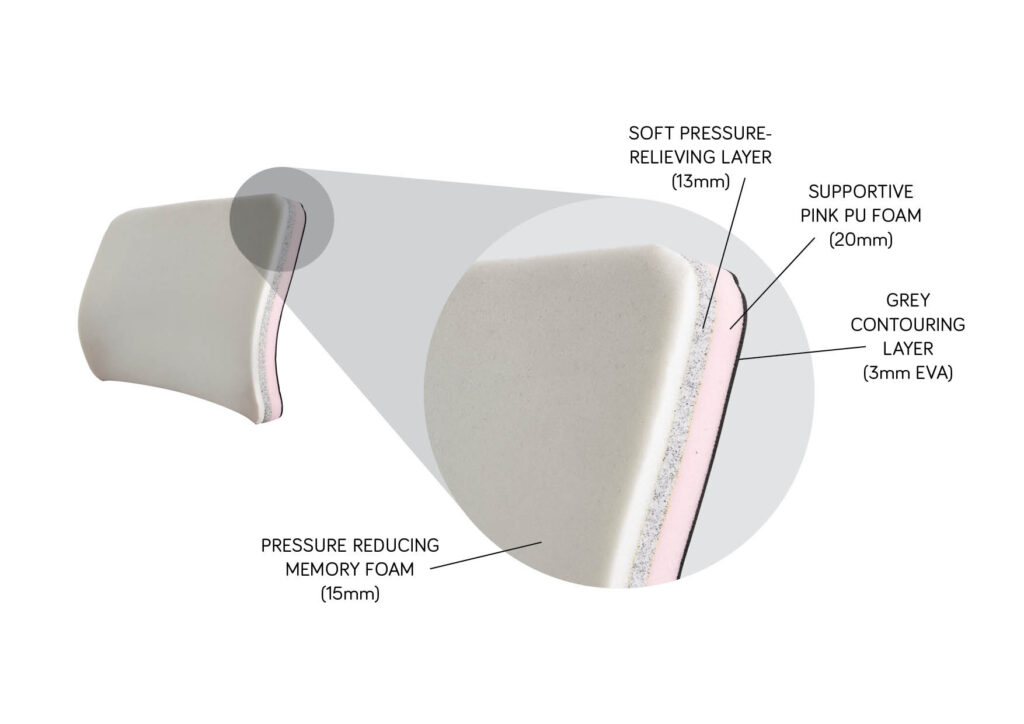

Foam Composition

XLella Comparison

Style	XLella² Back Support
Weight (without hardware, 22″ back)*	3.9kg
Weight Capacity	300kg
Contouring Angle Adjustment Capability	30° Anterior & 55° Posterior
Overall Thickness (including cover)	60mm
Code	1258-WWHH-200

Note: This is the weight of 22″ wide back support and does not include the hardware. For hardware weight, see below hardware options.

To order, replace the HH and WW in the code, with the appropriate size required.

Transport Certified All XLella Back Supports and hardware configurations are suitable for transport in a vehicle when mounted on an appropriate wheelchair frame.


Padding Thickness	Moderate padding thickness.	Thicker padding for adjustments in the foam contouring layers.	Moderate padding thickness.
Adjustment	No contour adjustment.	Moderate contour adjustment using cube system.	Maximum contour adjustment using hinge profile curvature system.
Contouring	Mild contour for comfort. Will provide support for bariatric users without contouring needs.	Build up Spex positioning cubes to create contouring. Add padding to the top of the back support to relieve the gluteal region. Will provide a more complete adjustment range for more complex setups.	Provides adjustment through the lower section using the hardware to relieve the gluteal region. Will provide the most supportive solution for most bariatric users.
Scripting	Scripted by the back support height.	Scripted by the back support height. Contour the support surface by adding and removing foam cubes.	Scripted by the support surface length. Contour the support surface using the hardware adjustment. See the next page for script tools.

Accessories

XLella Cover Extension

Lateral Reinforcement Plate

Back Support Lumber Pad and Lateral Stability Wedges

Asymmetric Narrow Contour Wedge

Asymmetric Bi-angular Contour Wedge

Asymmetric Contour Wedge Kit

Extra Outer Back Support Cover

Back Support Incontinence Cover

Stylo Heavy-Duty Compatibility Kit

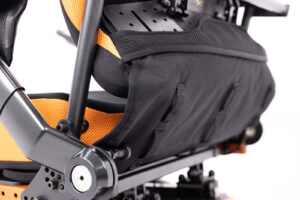

XLella Cover Extension

The cover extension accessory connects the back support and the cushion to ensure that any adipose tissue is protected. It wraps around the excess tissue and/or gluteal shelf to provide protection and privacy to the user. The cover extension is primarily designed for use with a partial height back support.

Product Code:

1258-WW00-500

Lateral Reinforcement Plate

Recommended for clients with forceful side leaning or who weight over 100kg.

Product Code:

1266-2450-100

Back Support Lumber Pad and Lateral Stability Wedges

Product Code:

1209-2713-300

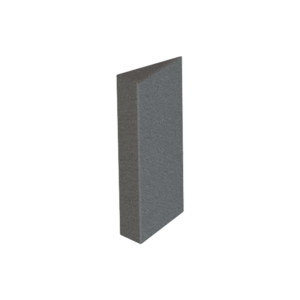

Asymmetric Narrow Contour Wedge

(200mm x 100mm x 40mm)

Product Code:

1209-2722-300

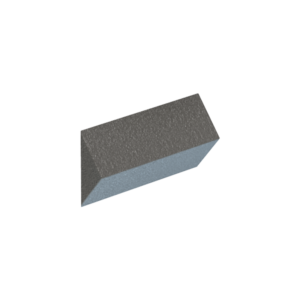

Asymmetric Bi-angular Contour Wedge

(200mm x 100mm x 40mm)

1209-2723-300

Asymmetric Contour Wedge Kit

Contains four foam wedges to provide greater contouring.

Dimensions:

20 x 20 x 4cm
20 x 10 x 4cm
20 x 10 x 4cm
4 x 20 x 40cm

Product Code:

1209-2720-300

Extra Outer Back Support Cover

Product Code:

1254-WW-HH-000-C

Back Support Incontinence Cover

Product Code:

1254-WWHH-000-I

Stylo Heavy-Duty Compatibility Kit

The Stylo Heavy-Duty Compatibility Kit provides reinforcement at the shell connection and grub screws to improve the slip capacity at the ball connections.

Product Code:

1274-0000-HDK
