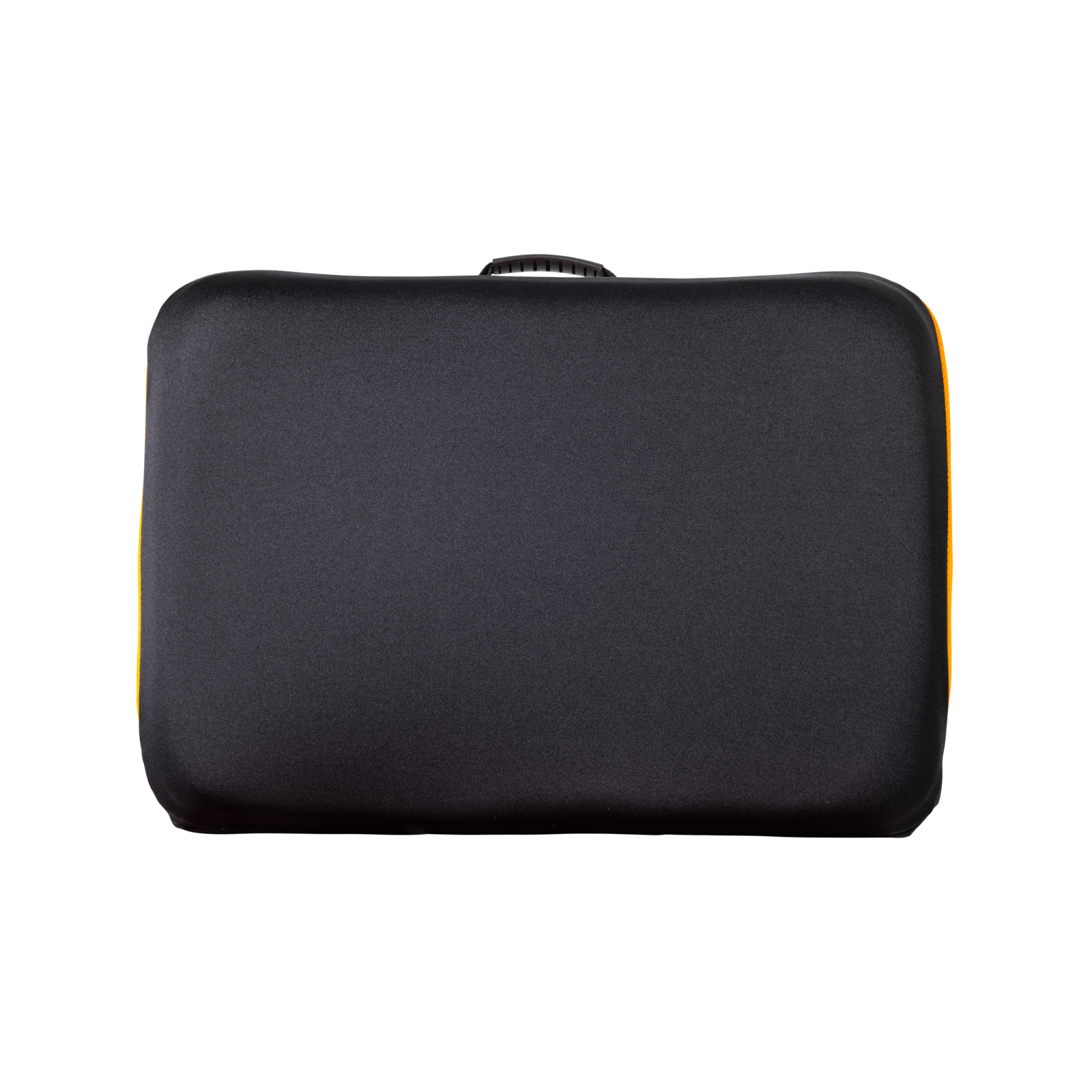

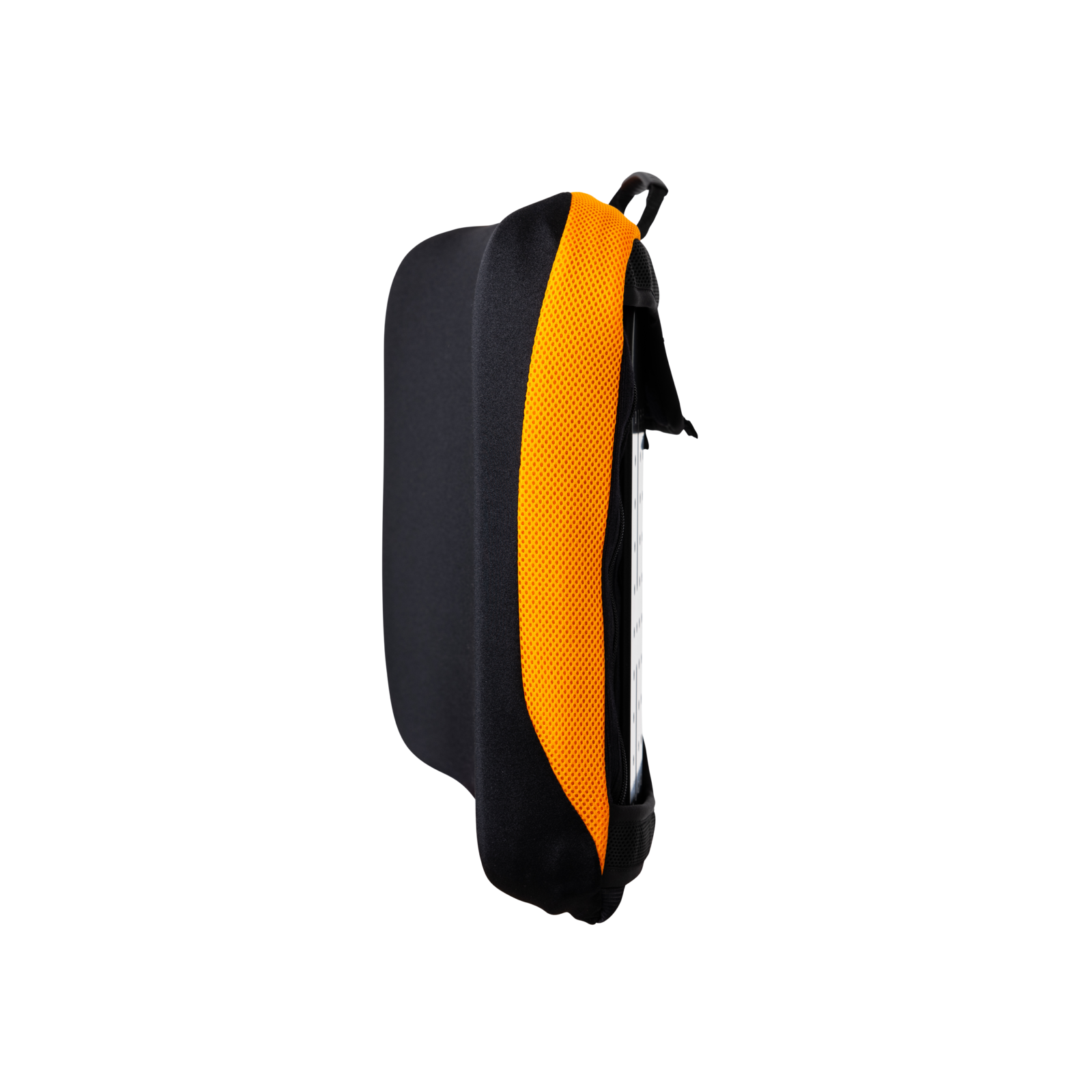

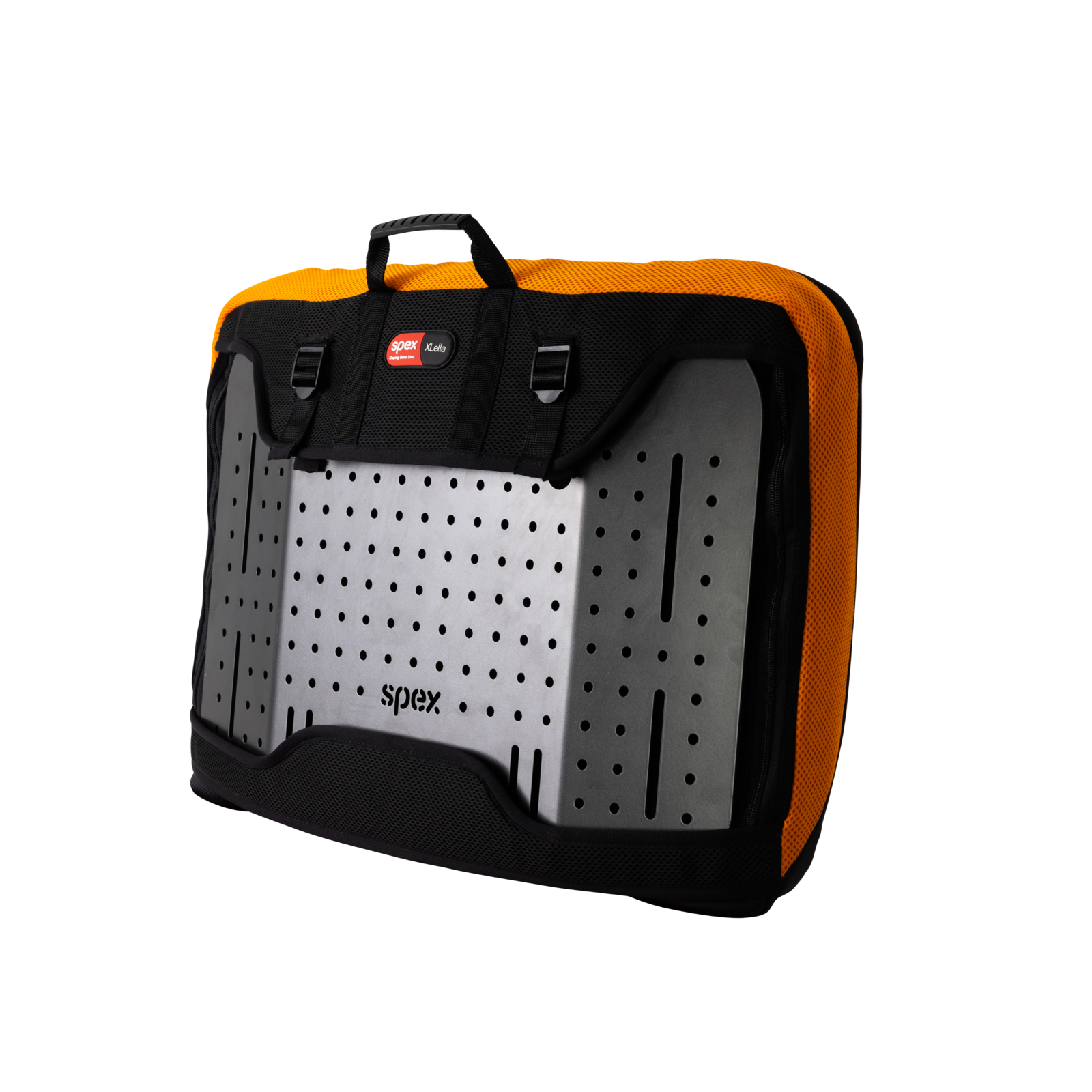

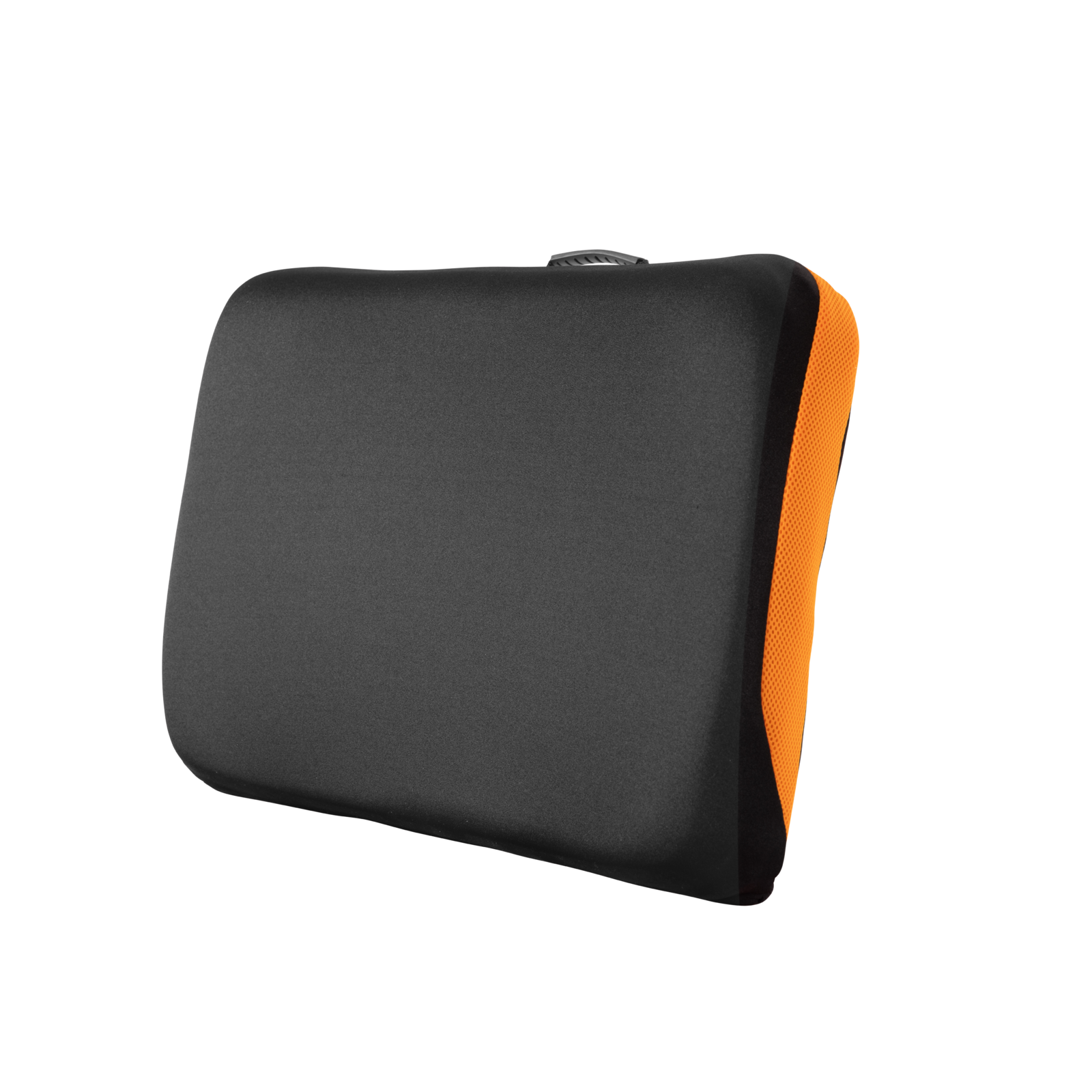

Rigid back support with contouring capabilities to shape and configure, for bariatric wheelchair users up to 300kg.

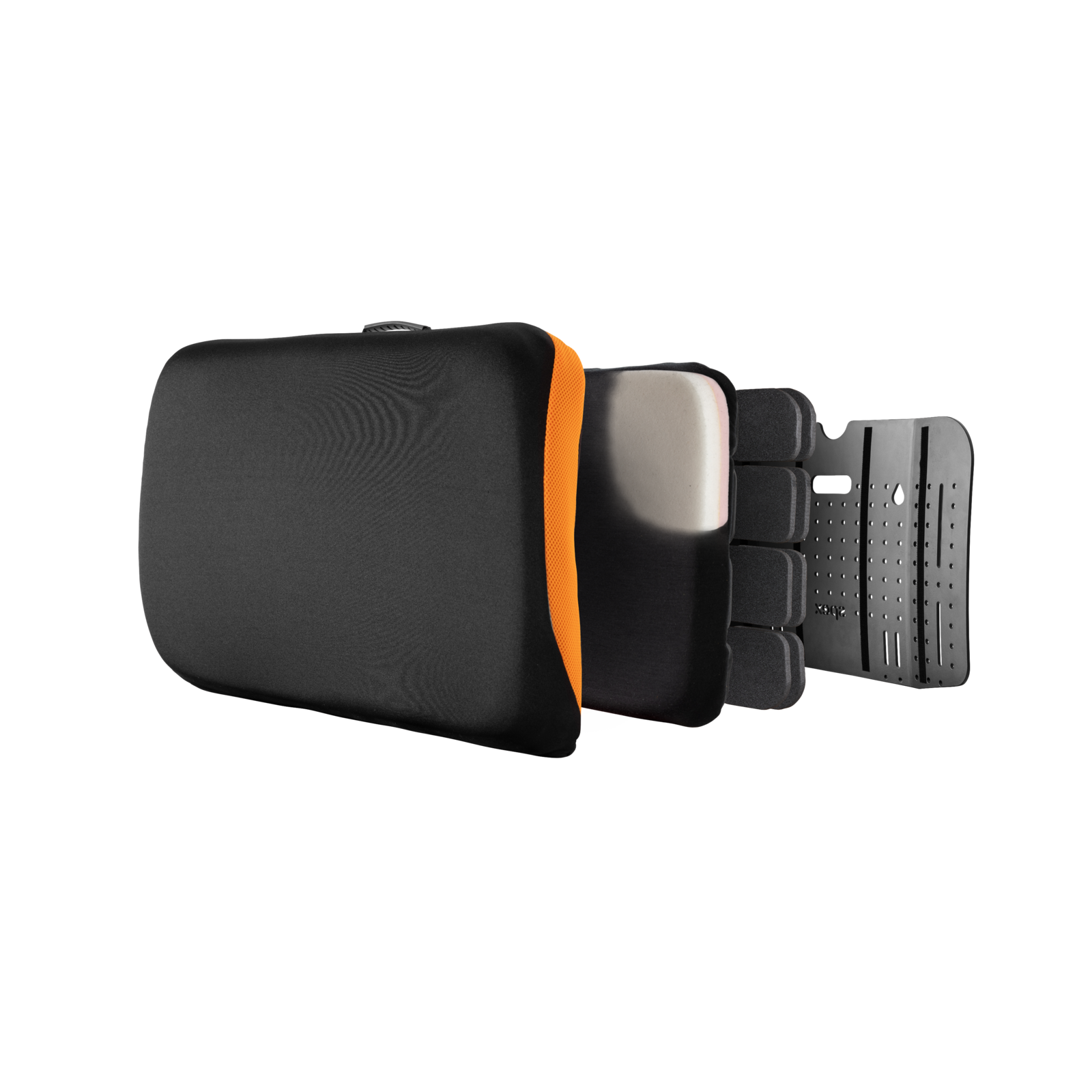

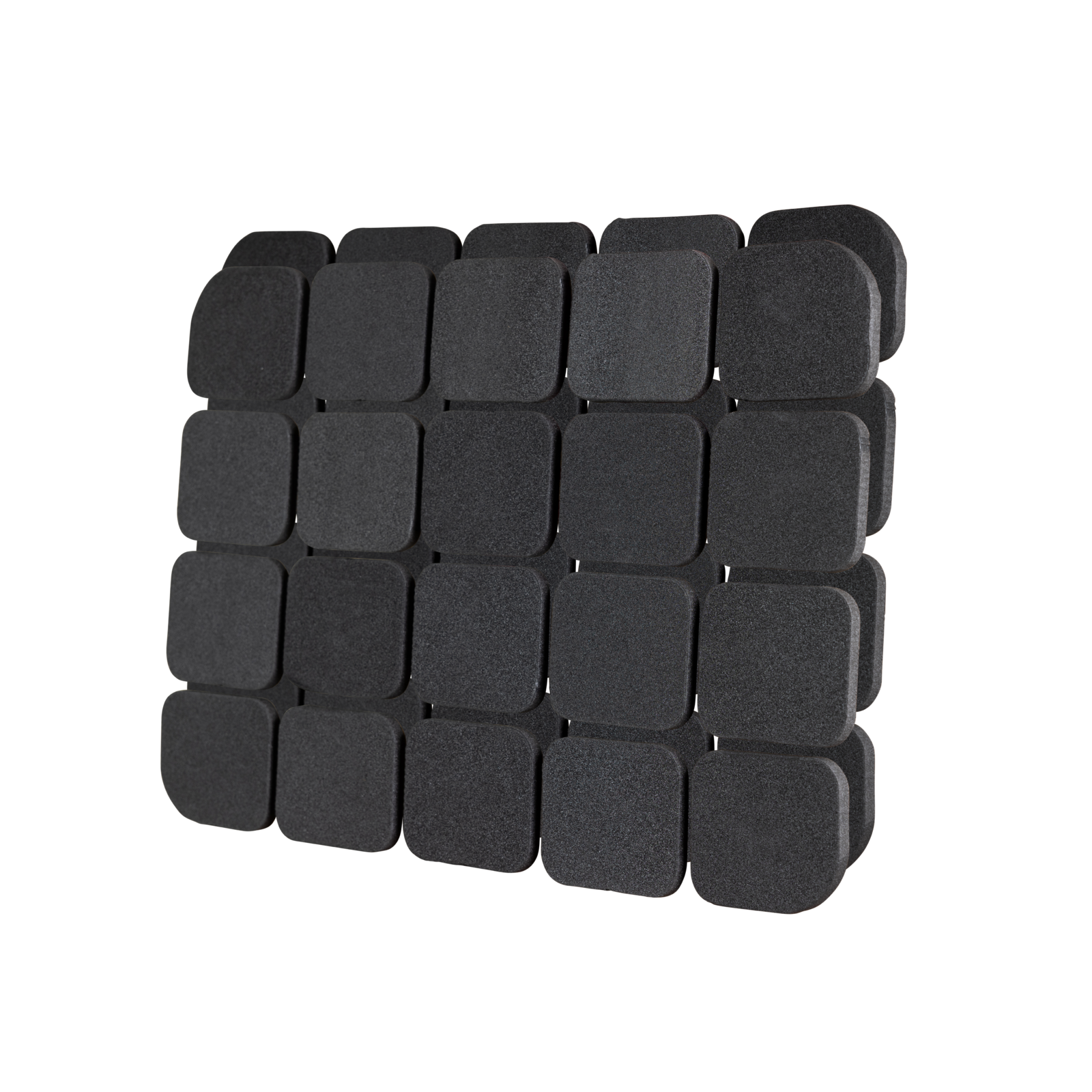

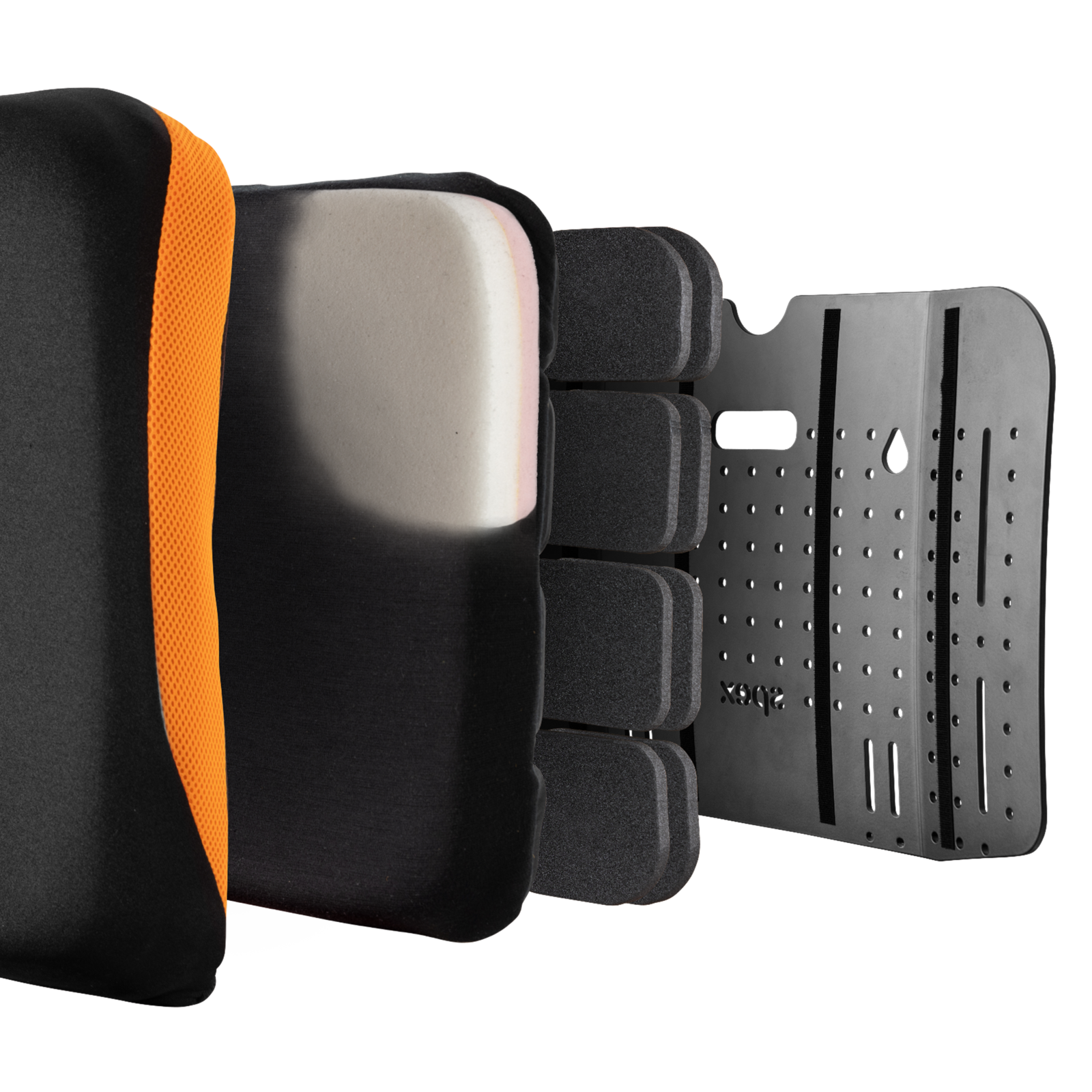

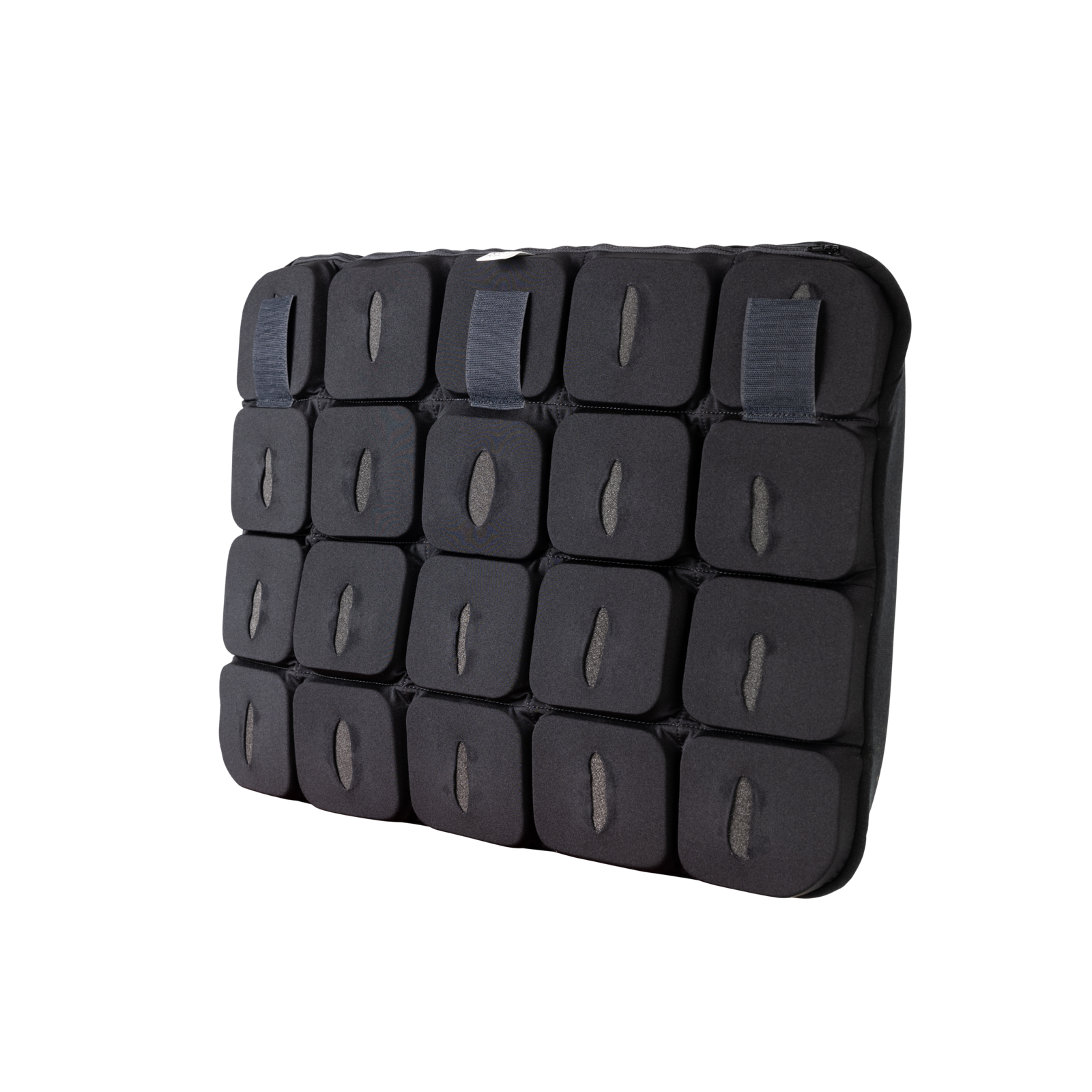

The XLella Classic Back Support is designed to support users with larger pressure distribution who require a back support with the possibility to create shapes and contours for postural support and/or changing needs. The Spex unique contouring cube system can be shaped and configured as many times as needed.

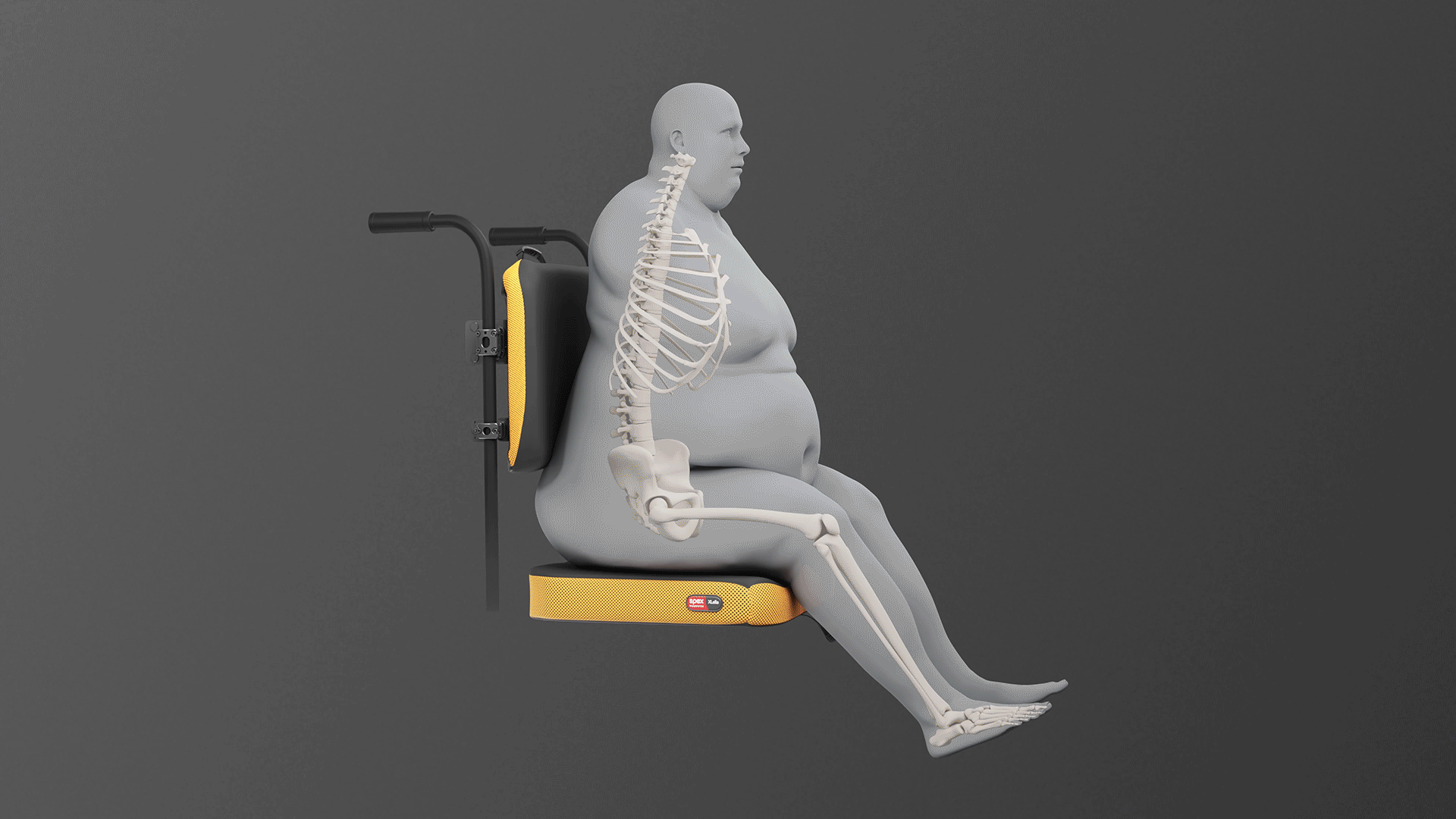

The bariatric population presents specific seating challenges. Positioning the pelvis in neutral may not be possible because excessive soft tissue limits the ability to control the position of the pelvis and spine, therefore, it is essential to provide adequate pressure distribution and relief, heat and moisture control, and ultimately, comfort.

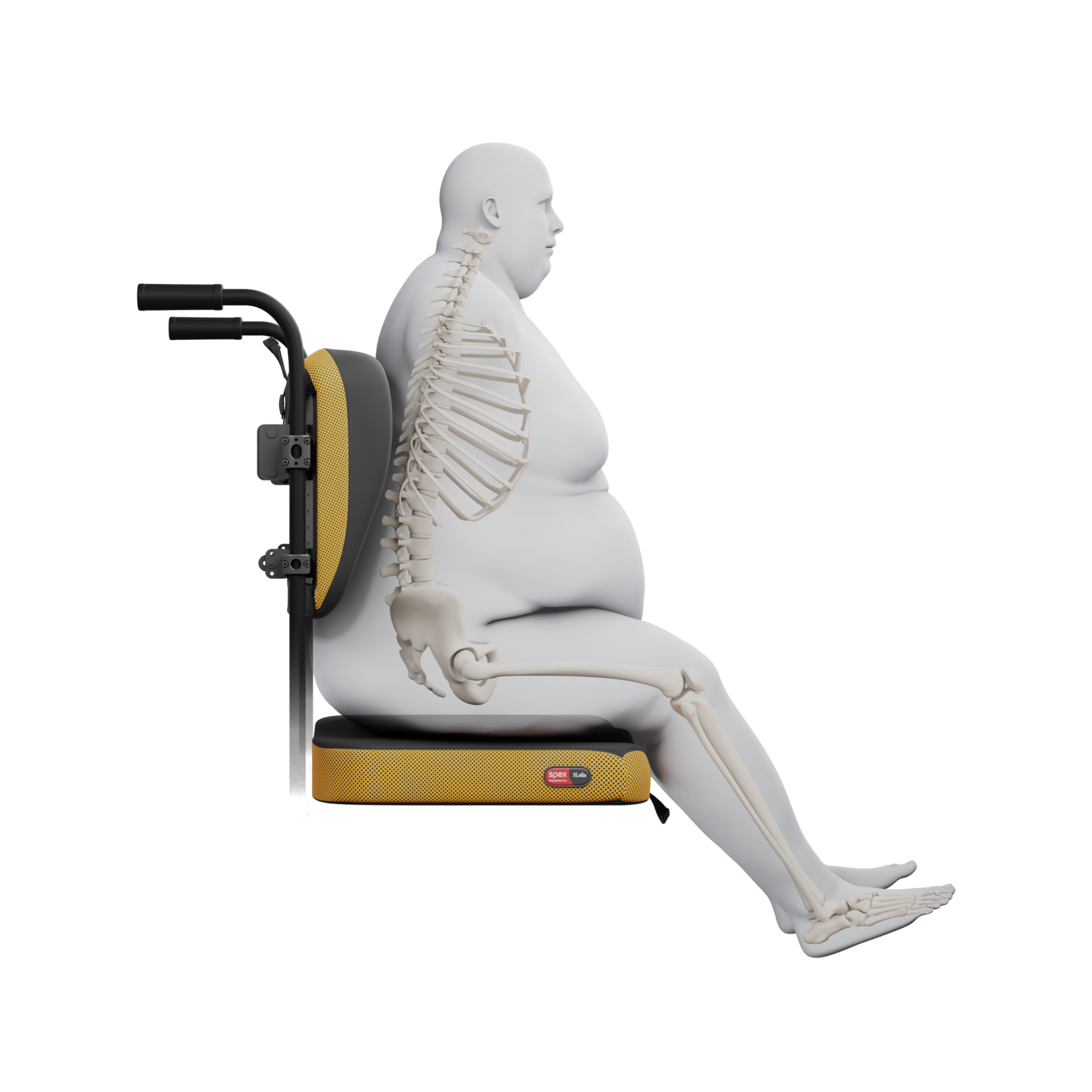

The excessive adipose tissue in the gluteal region (gluteal shelf) can also prevent bariatric users from sitting with adequate spinal support, which can contribute to back pain. Offering solutions to accommodate the unique posterior shape created by this redundant tissue is paramount.
XLella bariatric range consists of back supports and cushions, which span from 22” to 28” width, with options for custom items up to 32”.
The XLella back supports provide an off-the-shelf solution, with integrated adjustability and adaptability for potential changing needs. These are available in three different styles to meet the individual requirements and body shapes of the user, XLella Vigour, XLella Classic, and XLella². All models are transport certified and have a weight capacity of up to 300kg.
| For Mild Bony Prominences | For Immersion | For Asymmetry |
|---|---|---|
 |
 |
 |

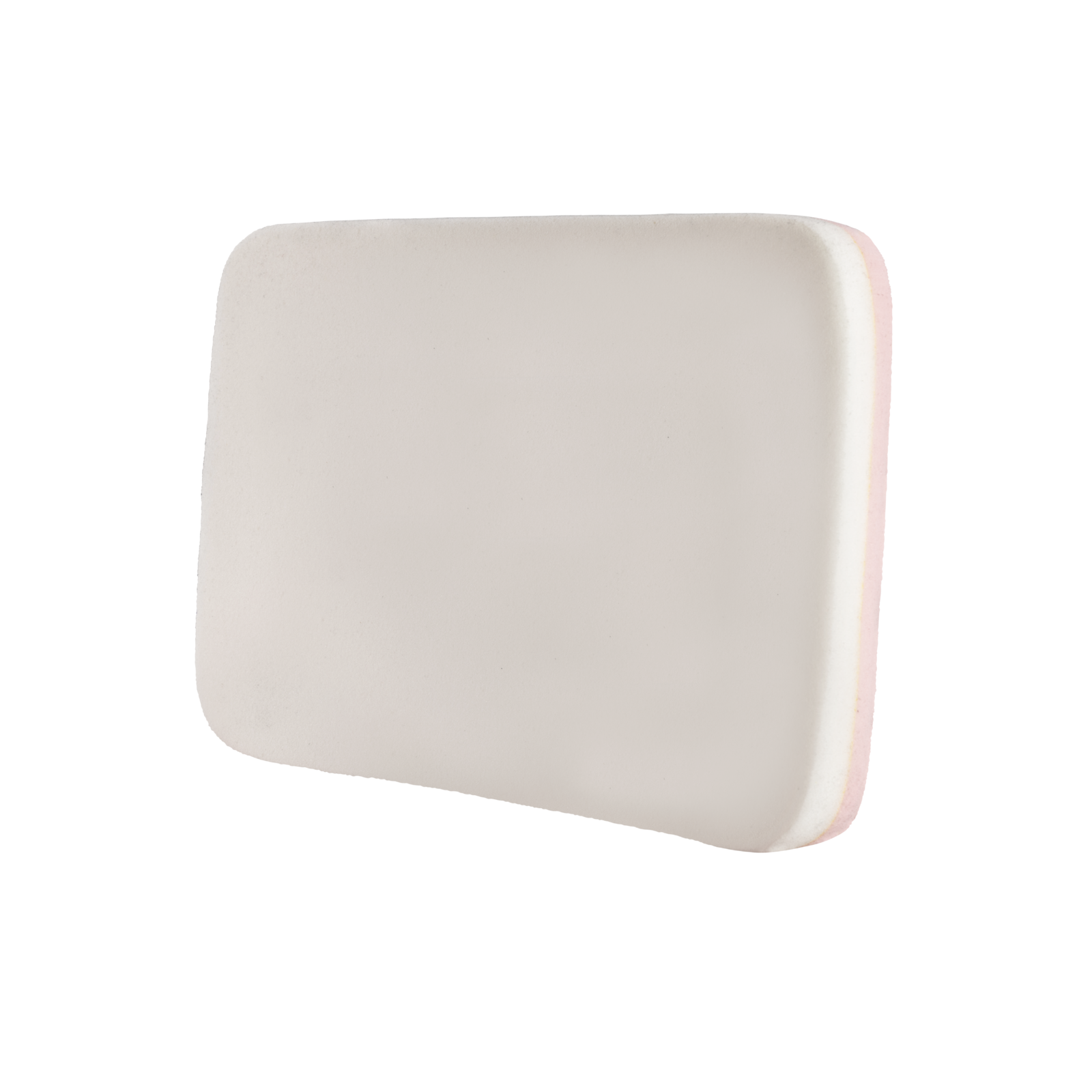

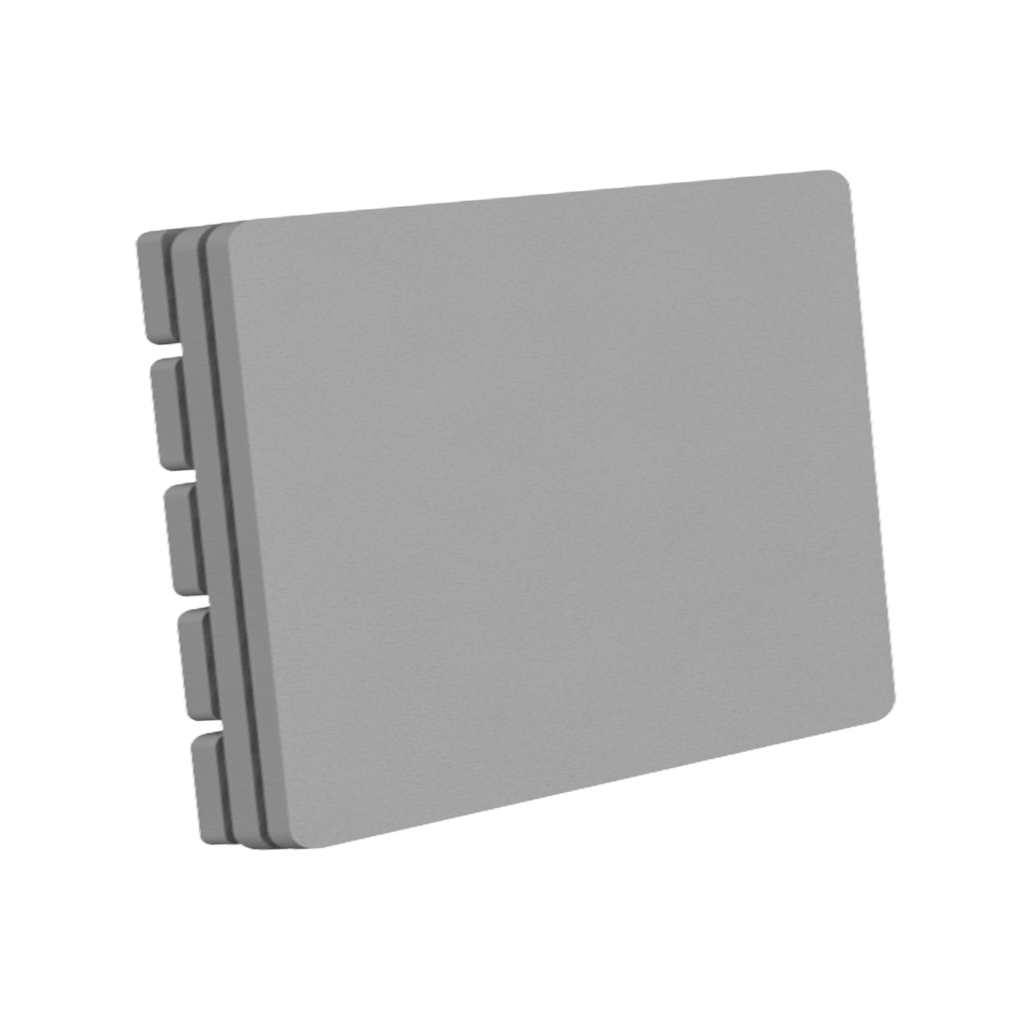

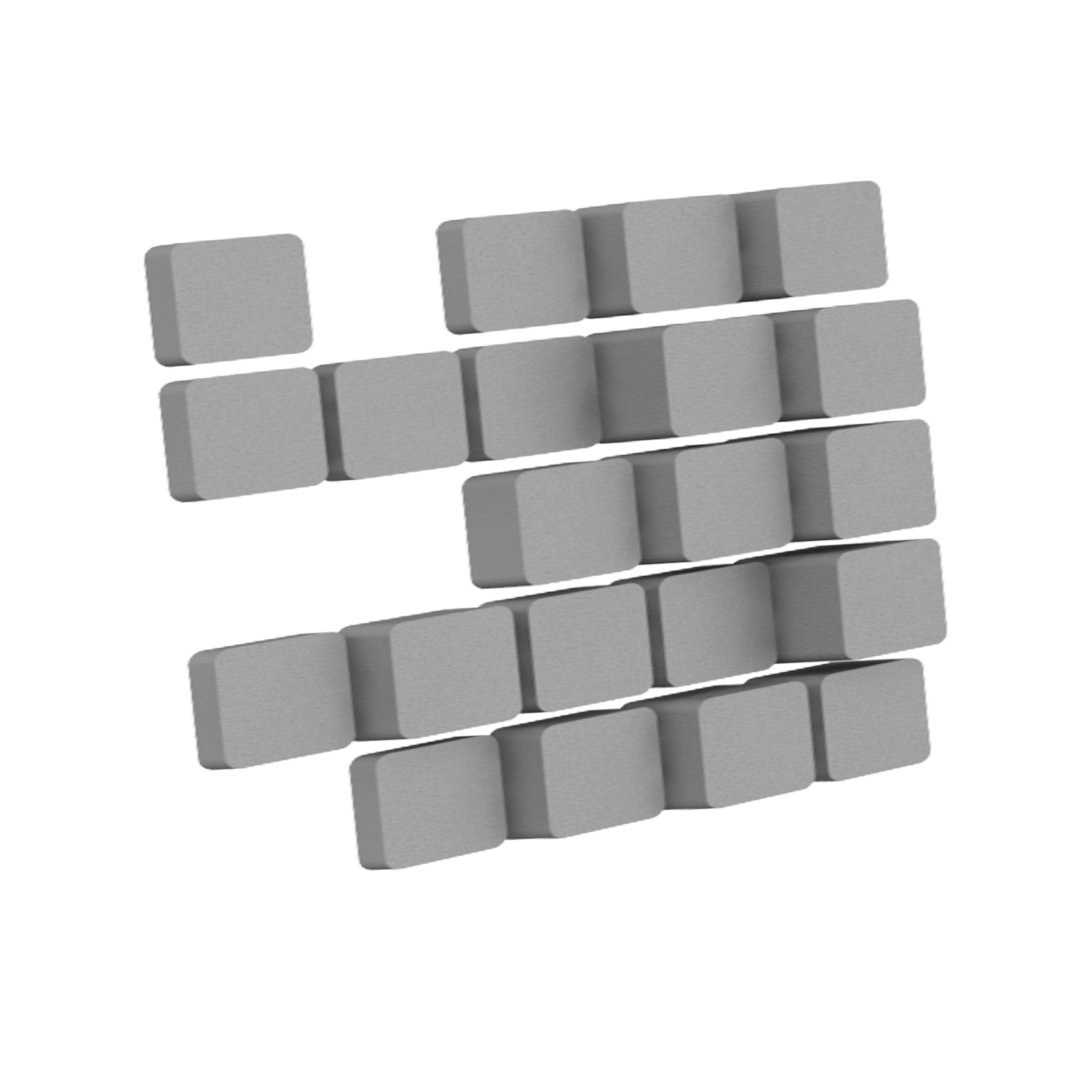

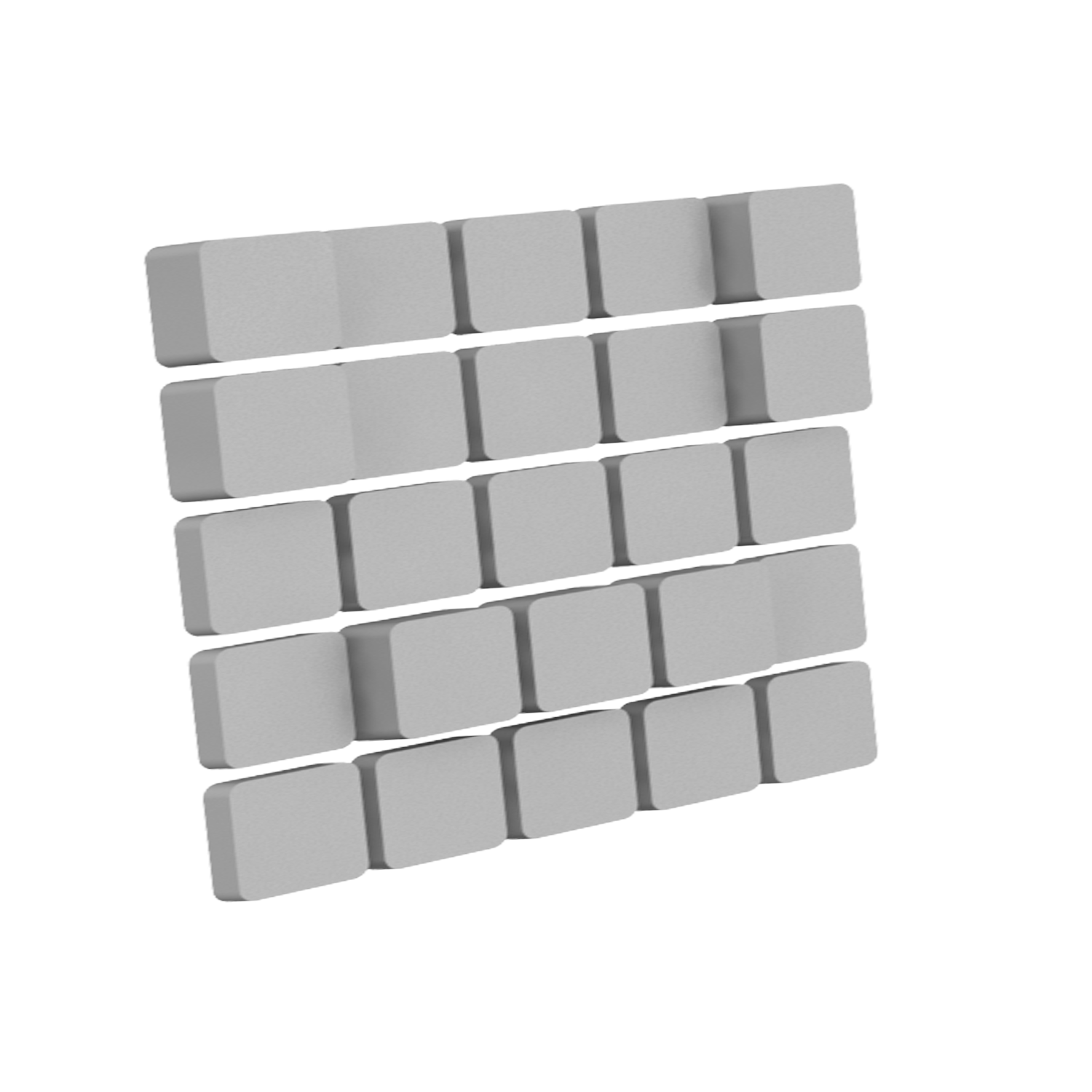

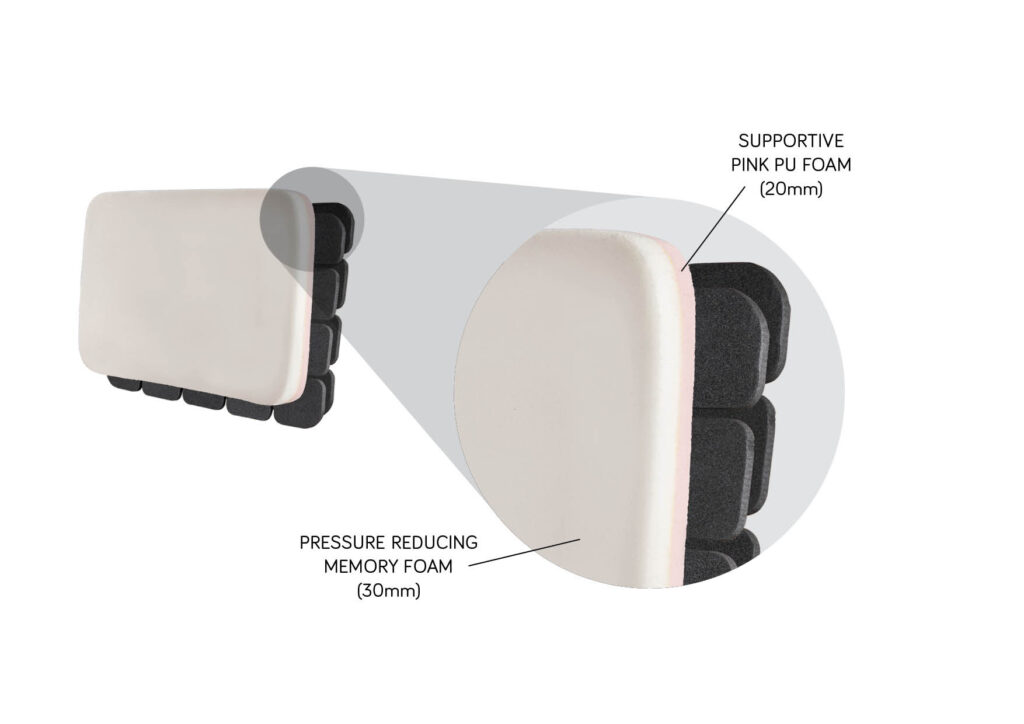

| Without even adjusting the cube system, the Spex back support has slight contouring and integrates a comfortable pressure reducing foam surface layer to absorb mild bony prominences and asymmetries for uniform torso contact. | For individuals that require immersion into the back support, simply adjust the cube contouring cell system to configure for a perfect fit and shape for the user’s back. | For asymmetrical or maladaptive postures, the contour can be arranged to provide the matching shape required to support the user’s torso profile. |
Transport Certified All XLella Back Supports and hardware configurations are suitable for transport in a vehicle when mounted on an appropriate wheelchair frame.
| XLella Vigour | XLella Classic | XLella2 Biangular | |
|---|---|---|---|
 |
 |
 |
|
| Padding Thickness | Moderate padding thickness. | Thicker padding for adjustments in the foam contouring layers. | Moderate padding thickness. |
| Adjustment | No contour adjustment. | Moderate contour adjustment using cube system. | Maximum contour adjustment using hinge profile curvature system. |
| Contouring | Mild contour for comfort. Will provide support for bariatric users without contouring needs. |
Build up Spex positioning cubes to create contouring. Add padding to the top of the back support to relieve the gluteal region. Will provide a more complete adjustment range for more complex setups. |

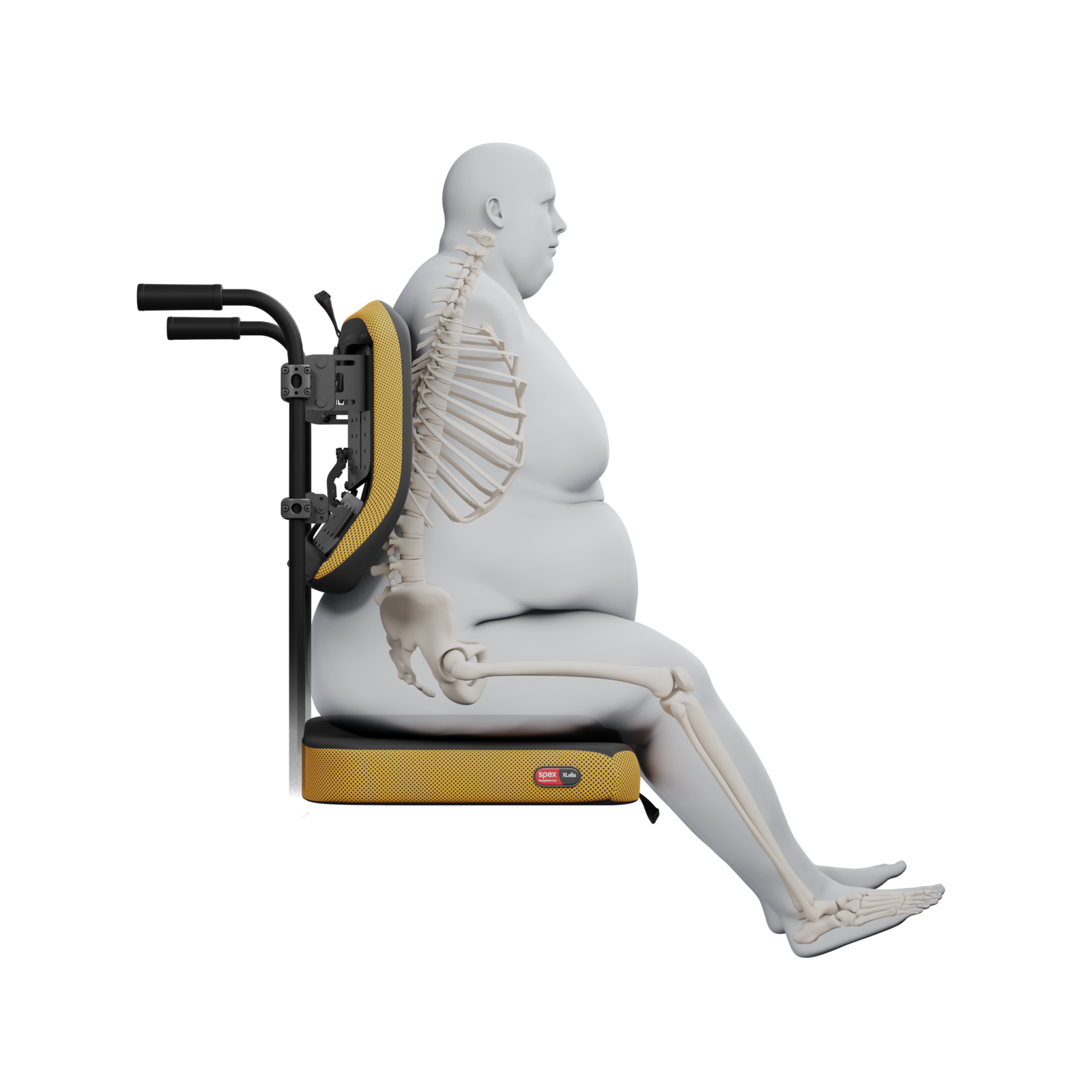

Provides adjustment through the lower section using the hardware to relieve the gluteal region. Will provide the most supportive solution for most bariatric users. |
| Scripting | Scripted by the back support height. | Scripted by the back support height. Contour the support surface by adding and removing foam cubes. |
Scripted by the support surface length. Contour the support surface using the hardware adjustment. See the next page for script tools. |
XLella Cover Extension
The cover extension accessory connects the back support and the cushion to ensure that any adipose tissue is protected. It wraps around the excess tissue and/or gluteal shelf to provide protection and privacy to the user. The cover extension is primarily designed for use with a partial height back support.
Product Code:
1258-WW00-500

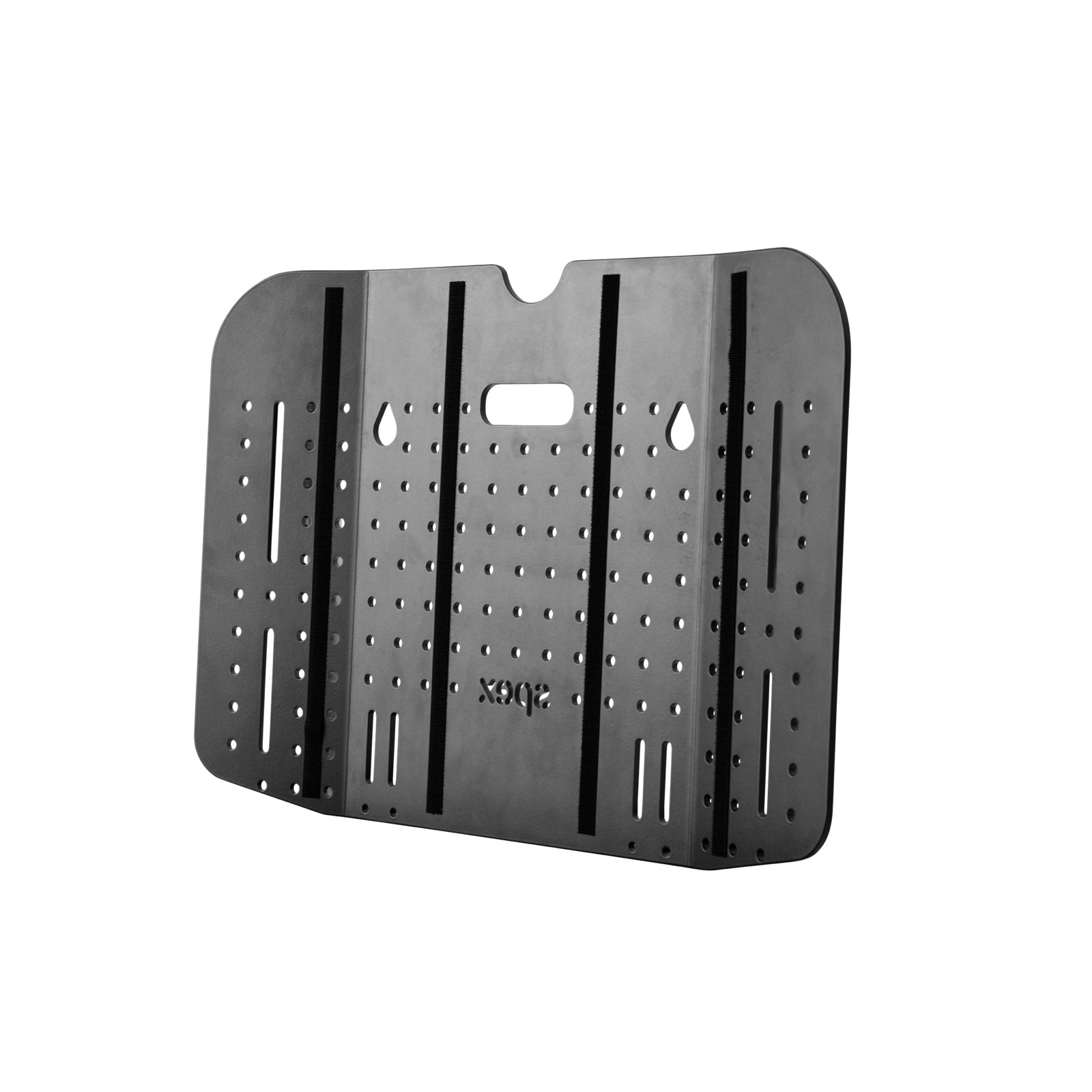

Lateral Reinforcement Plate
Recommended for clients with forceful side leaning or who weight over 100kg.
Back Support Lumber Pad and Lateral Stability Wedges
Product Code:
1209-2713-300
Asymmetric Contour Wedge Kit
Contains four foam wedges to provide greater contouring.
Dimensions:
- 20 x 20 x 4cm
- 20 x 10 x 4cm
- 20 x 10 x 4cm
- 4 x 20 x 40cm
Product Code:
1209-2720-300
Asymmetric Bi-angular Contour Wedge
(200mm x 100mm x 40mm)
1209-2723-300
Asymmetric Narrow Contour Wedge
(200mm x 100mm x 40mm)
Product Code:
1209-2722-300
Extra Outer Back Support Cover
Product Code:
1
254-WW-HH-000-C
Stylo Heavy-Duty Compatibility Kit
The Stylo Heavy-Duty Compatibility Kit provides reinforcement at the shell connection and grub screws to improve the slip capacity at the ball connections.
Product Code:
1274-0000-HDK
