Spex SuperShape

Back Support

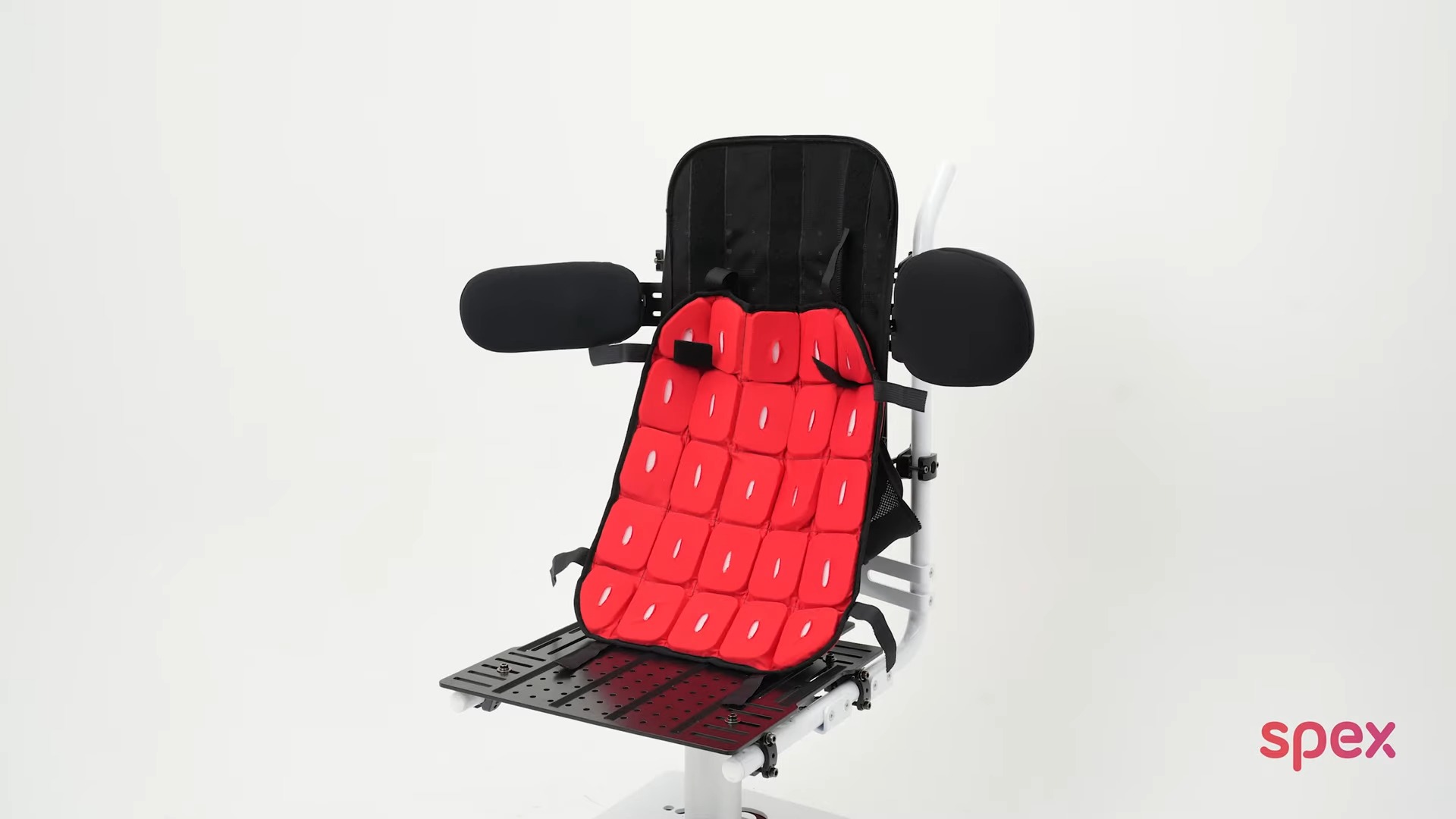

The wheelchair back support with extreme contouring capabilities! SuperShape provides an extra supportive wheelchair back solution using Shape Technology for contouring to provide postural integrity, pressure relief and comfort.

The SuperShape is a seating system that successfully meets individual trunk shapes of users with complex postural needs, and can be fitted and changed anywhere and at any time.

Gallery

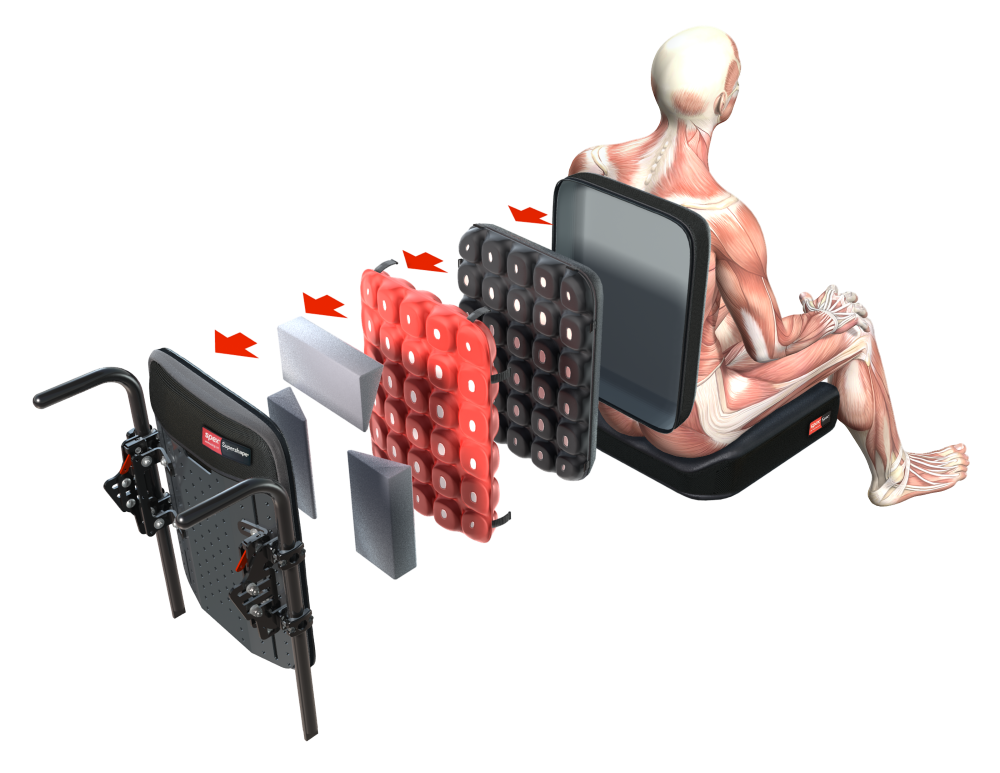

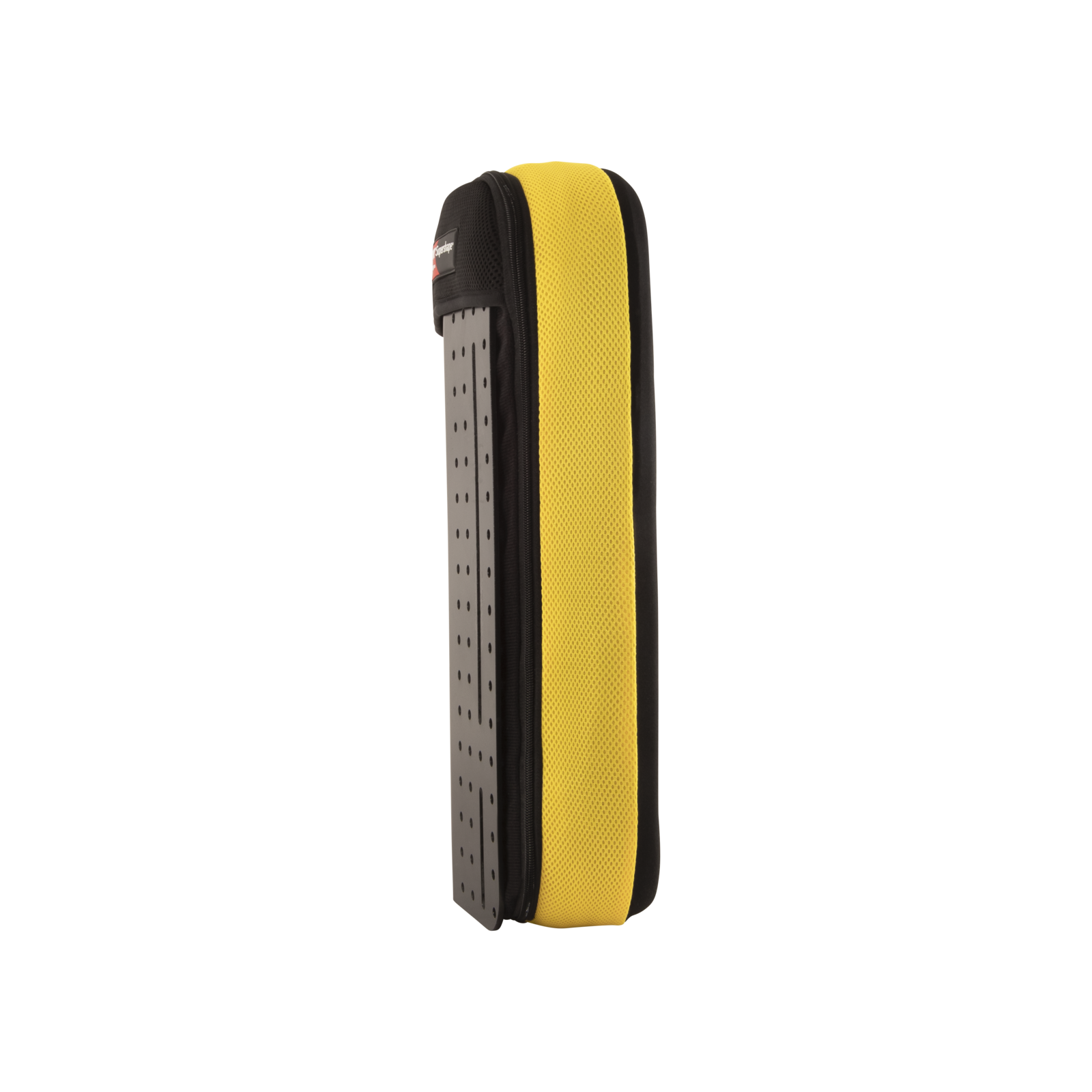

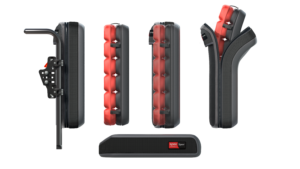

It looks simple; however, the SuperShape has patented, concealed technology!

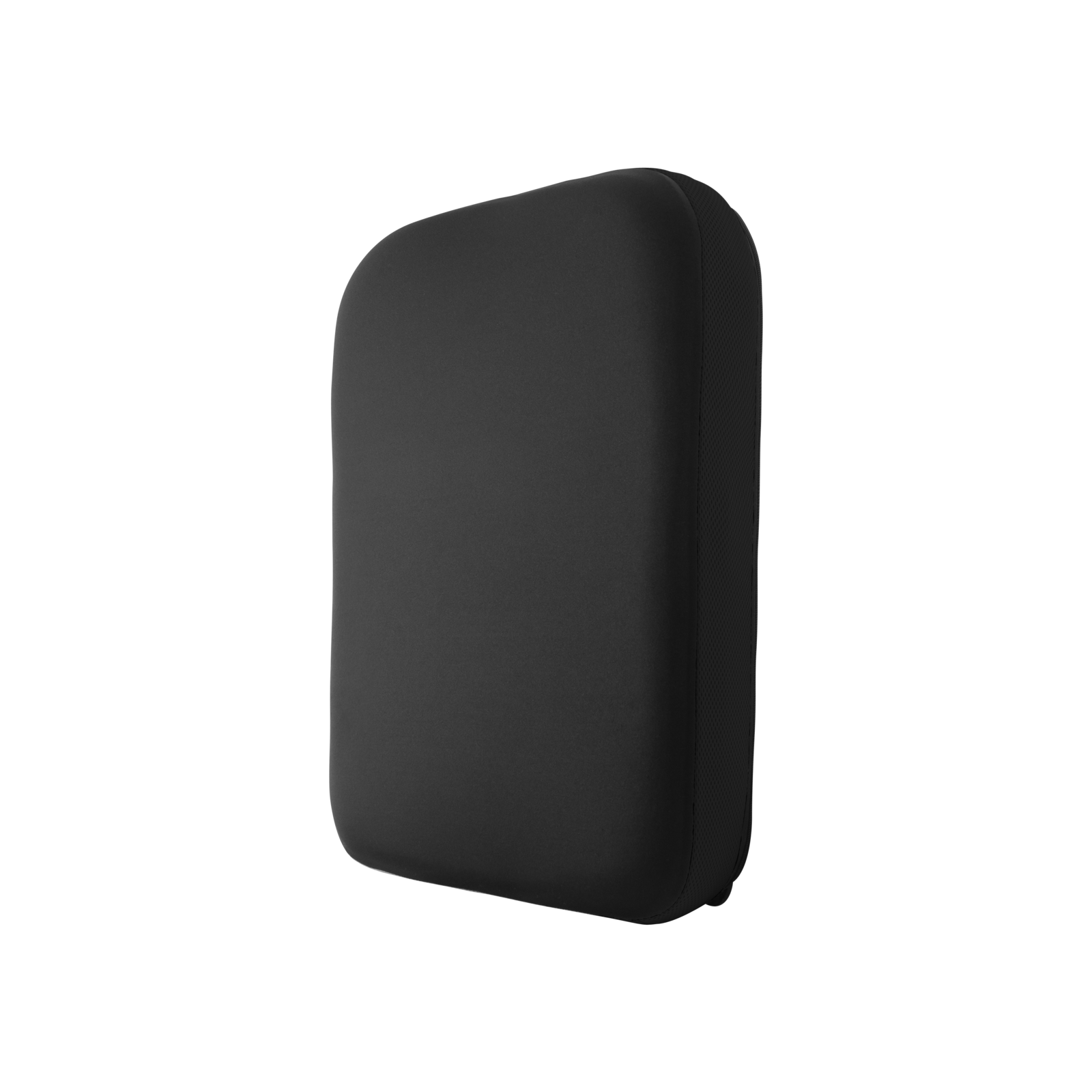

On the outside:

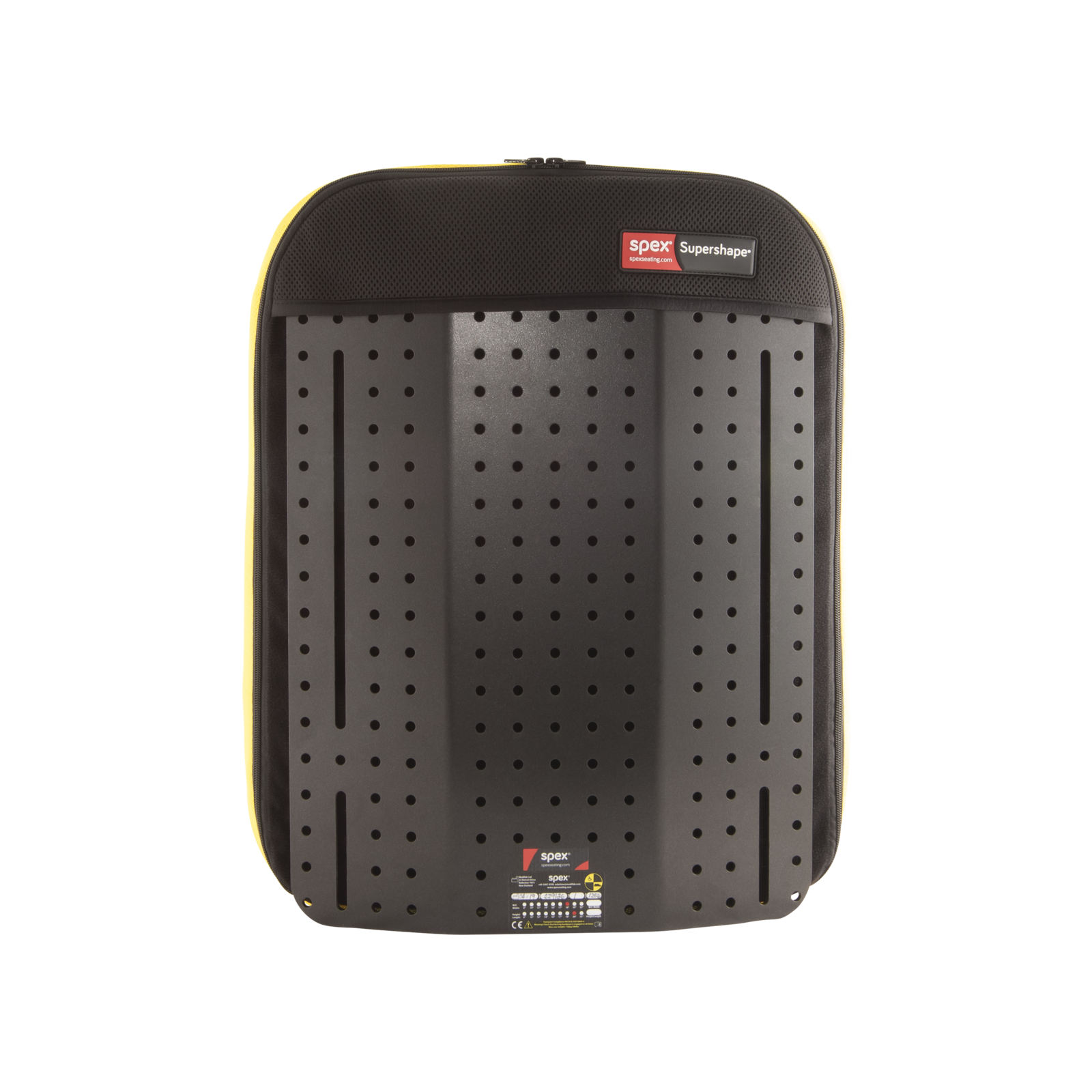

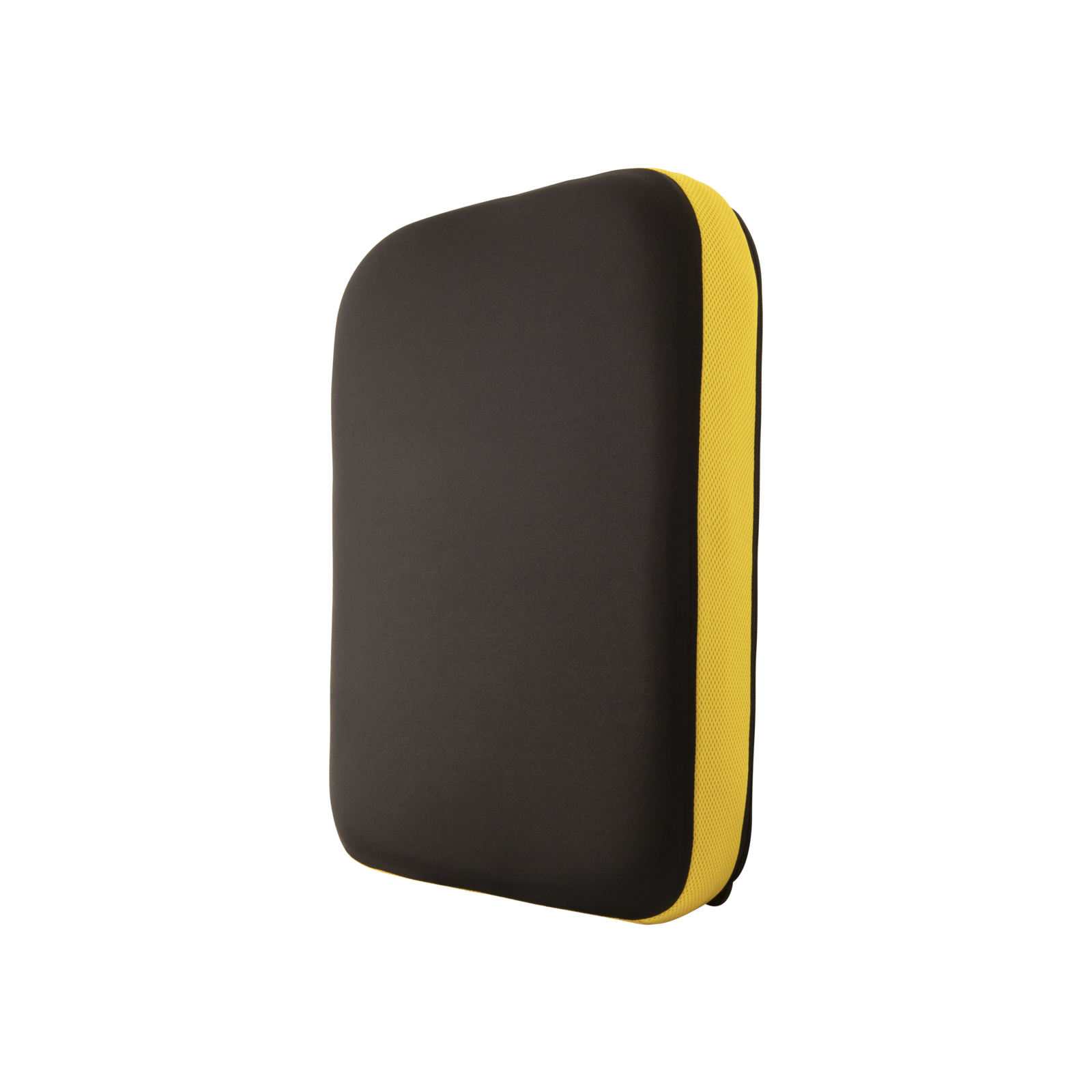

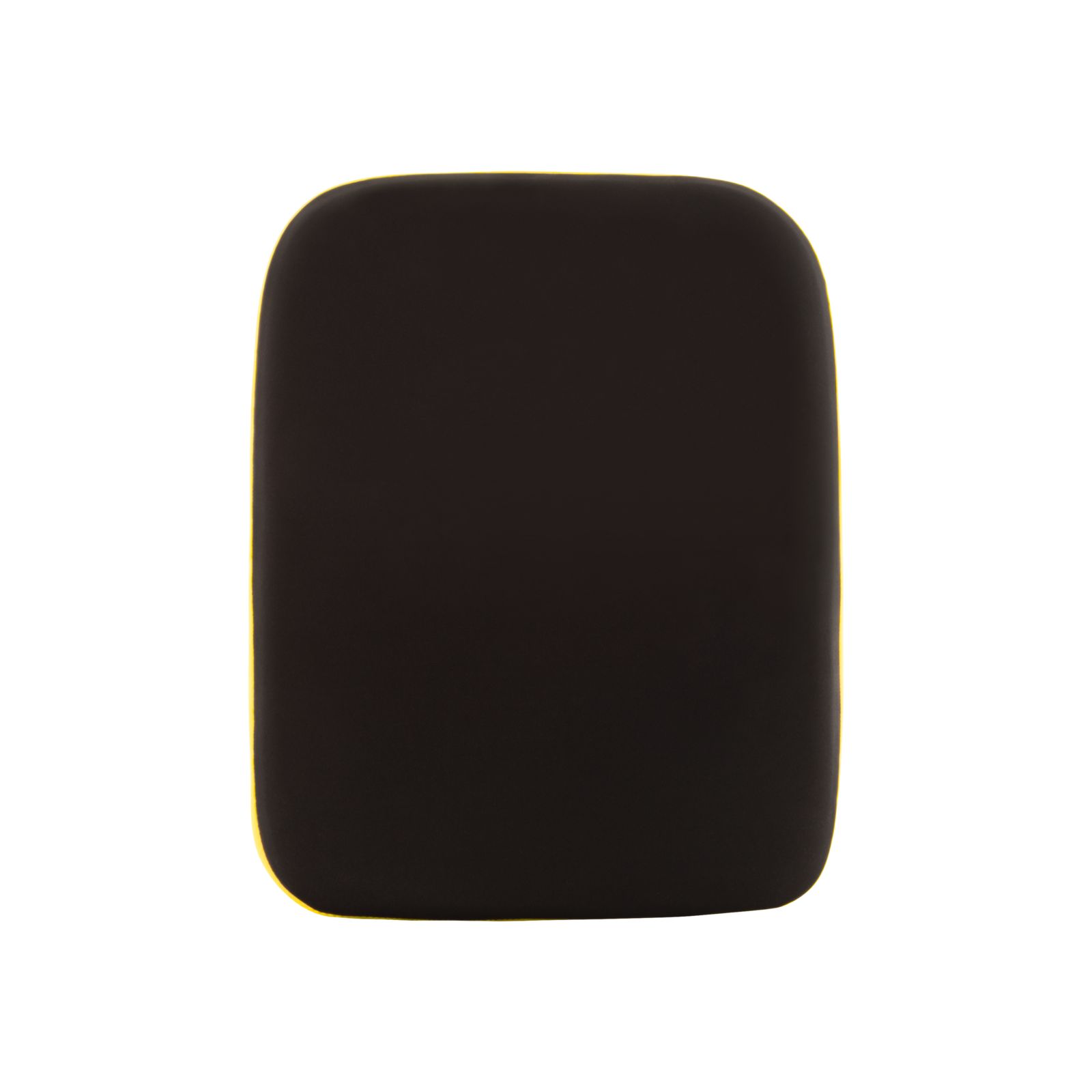

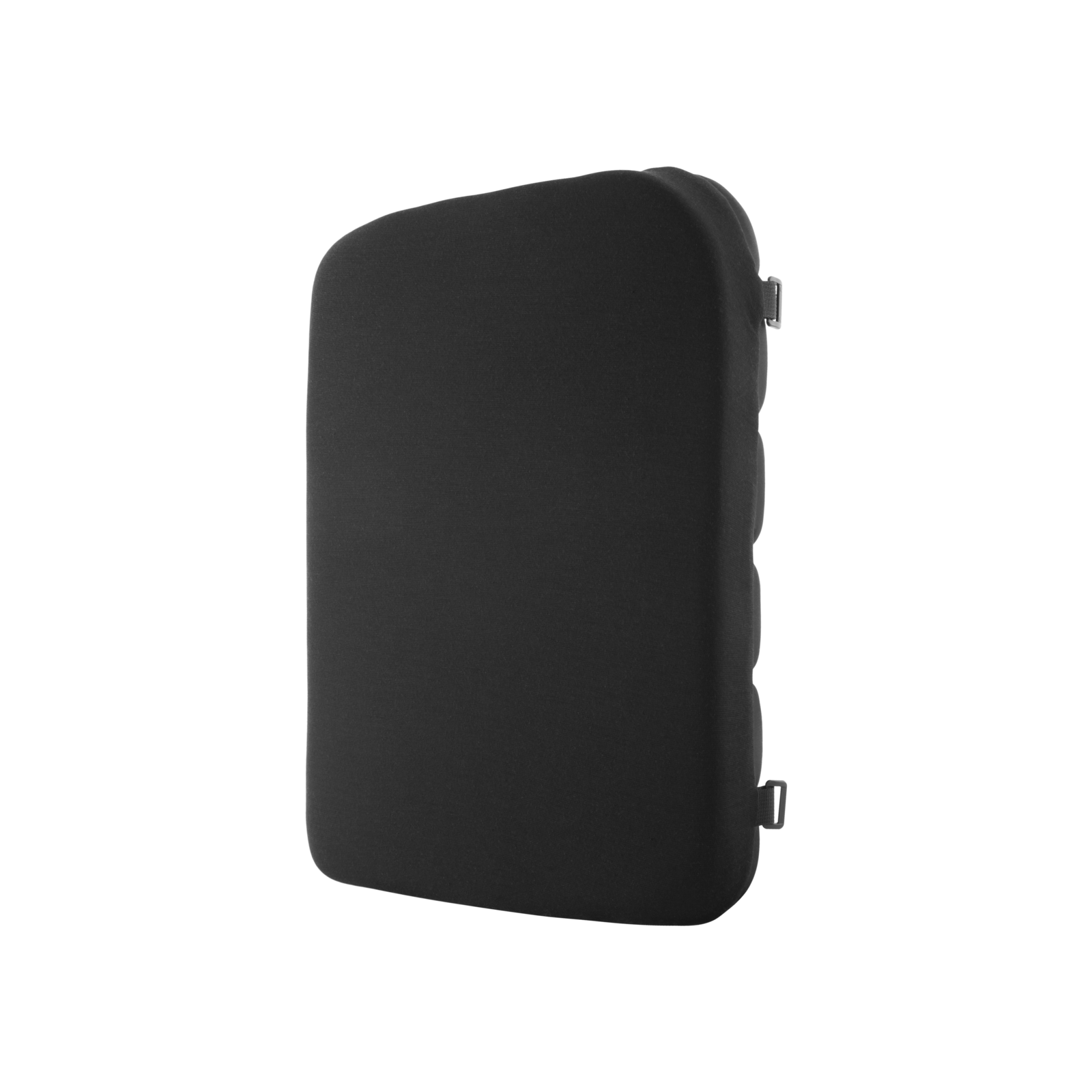

Robust and durable back support with a breathable, washable cover.

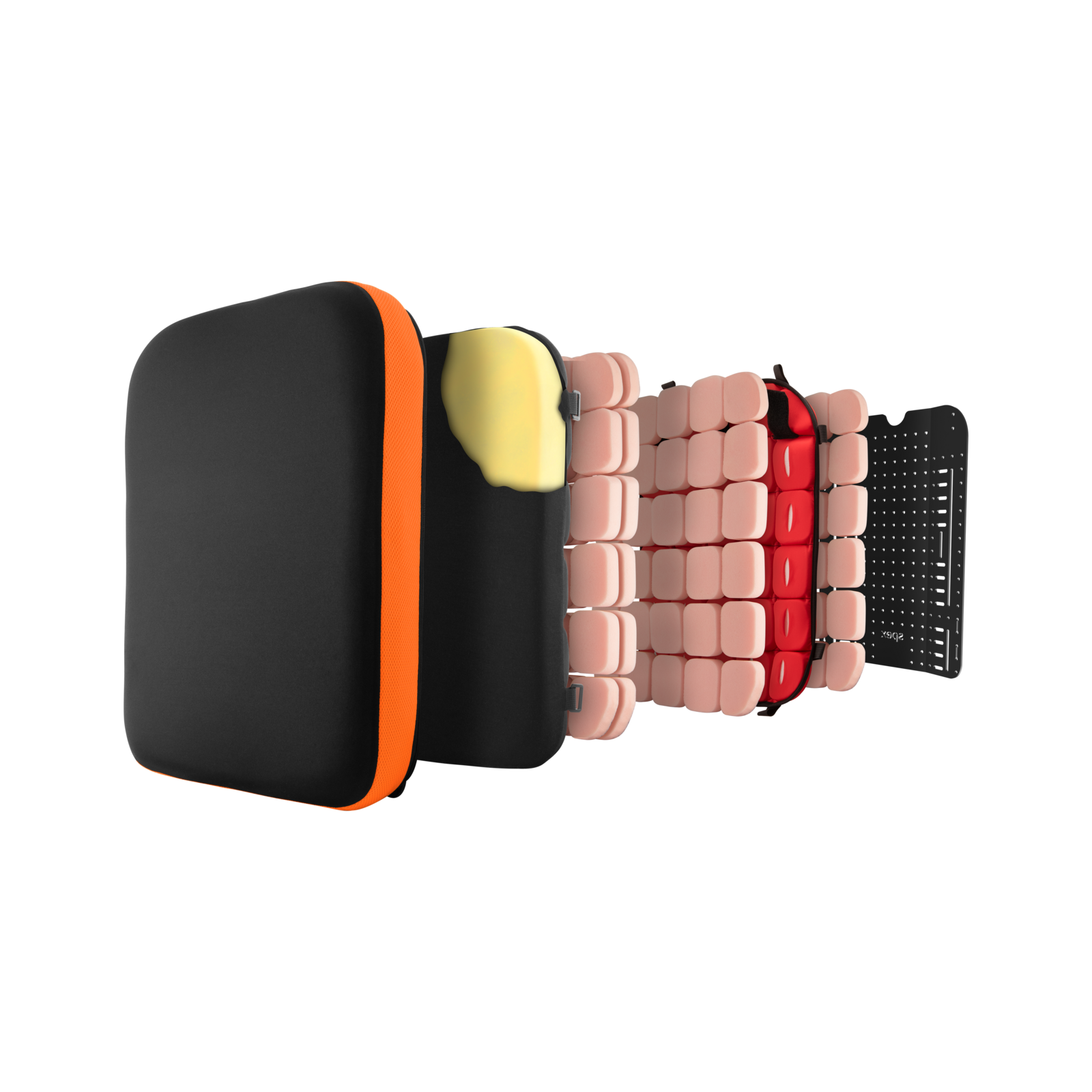

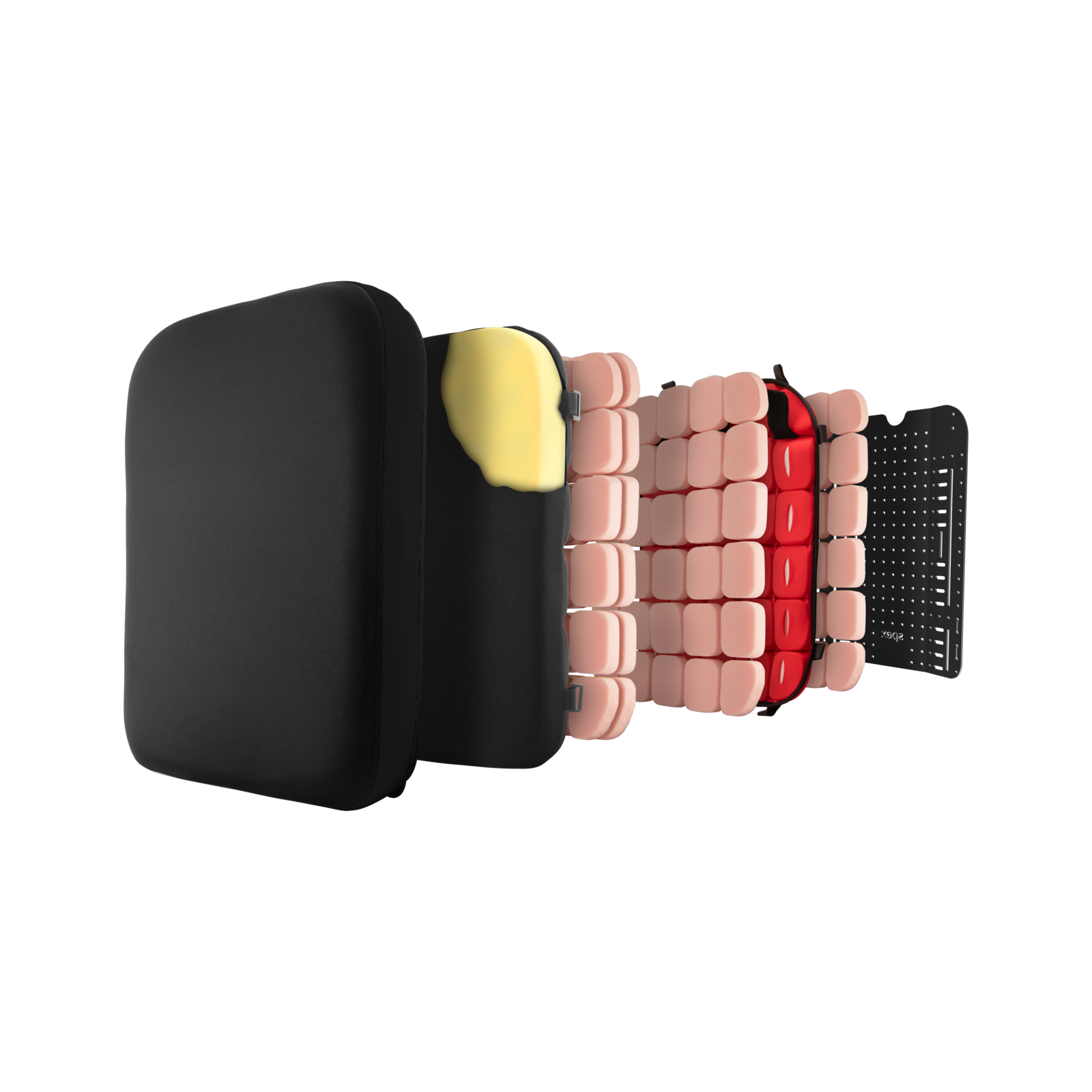

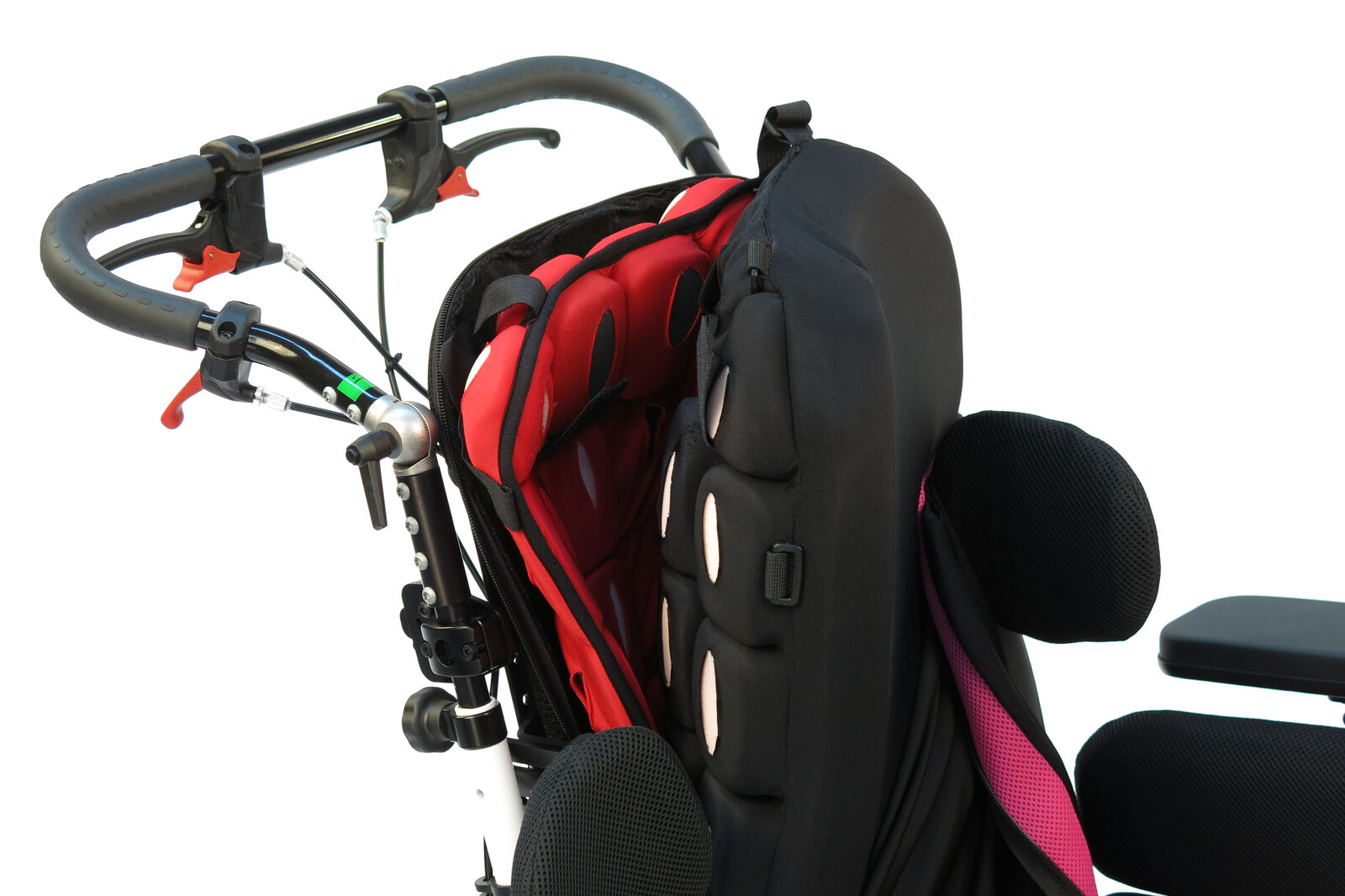

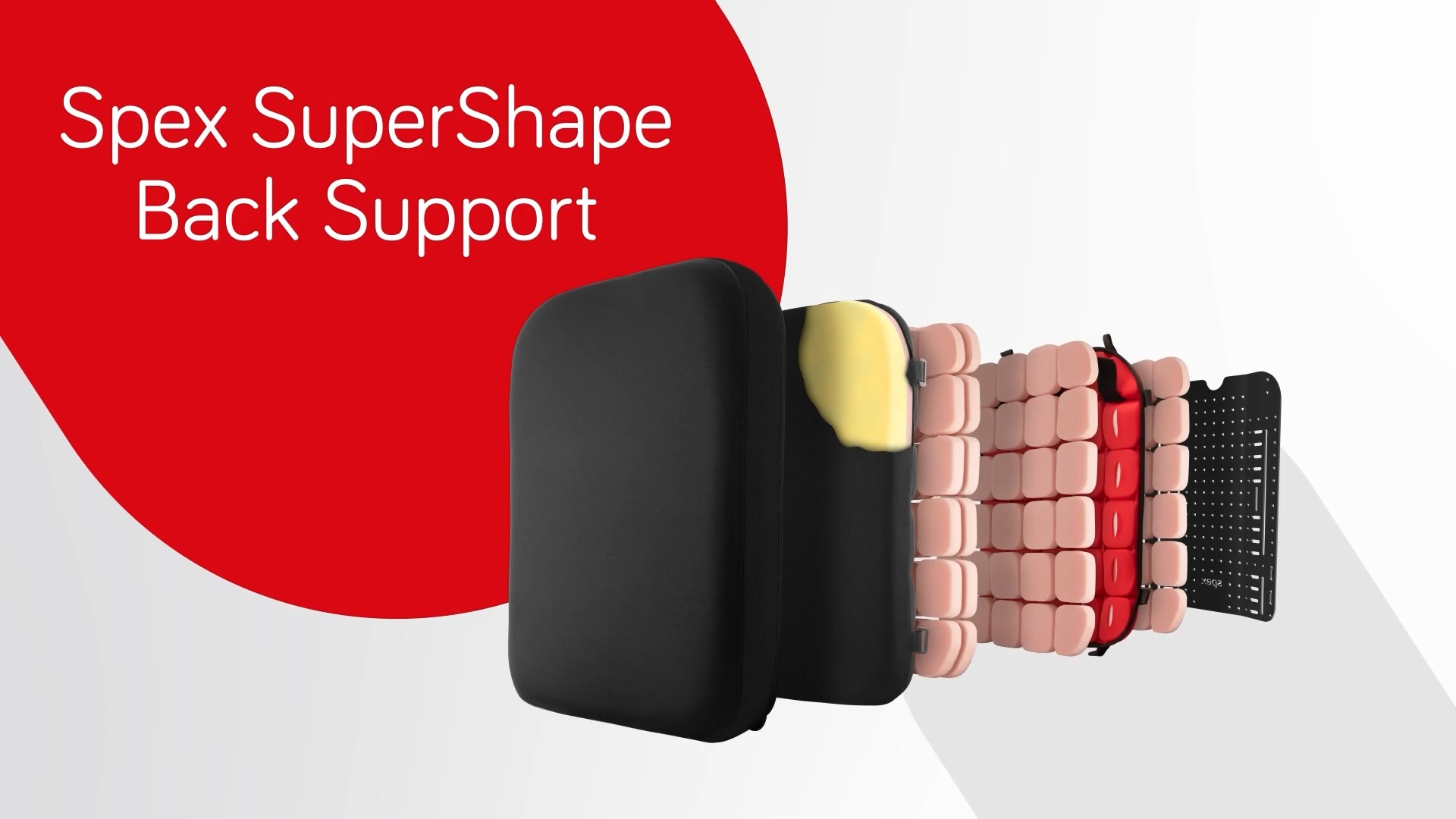

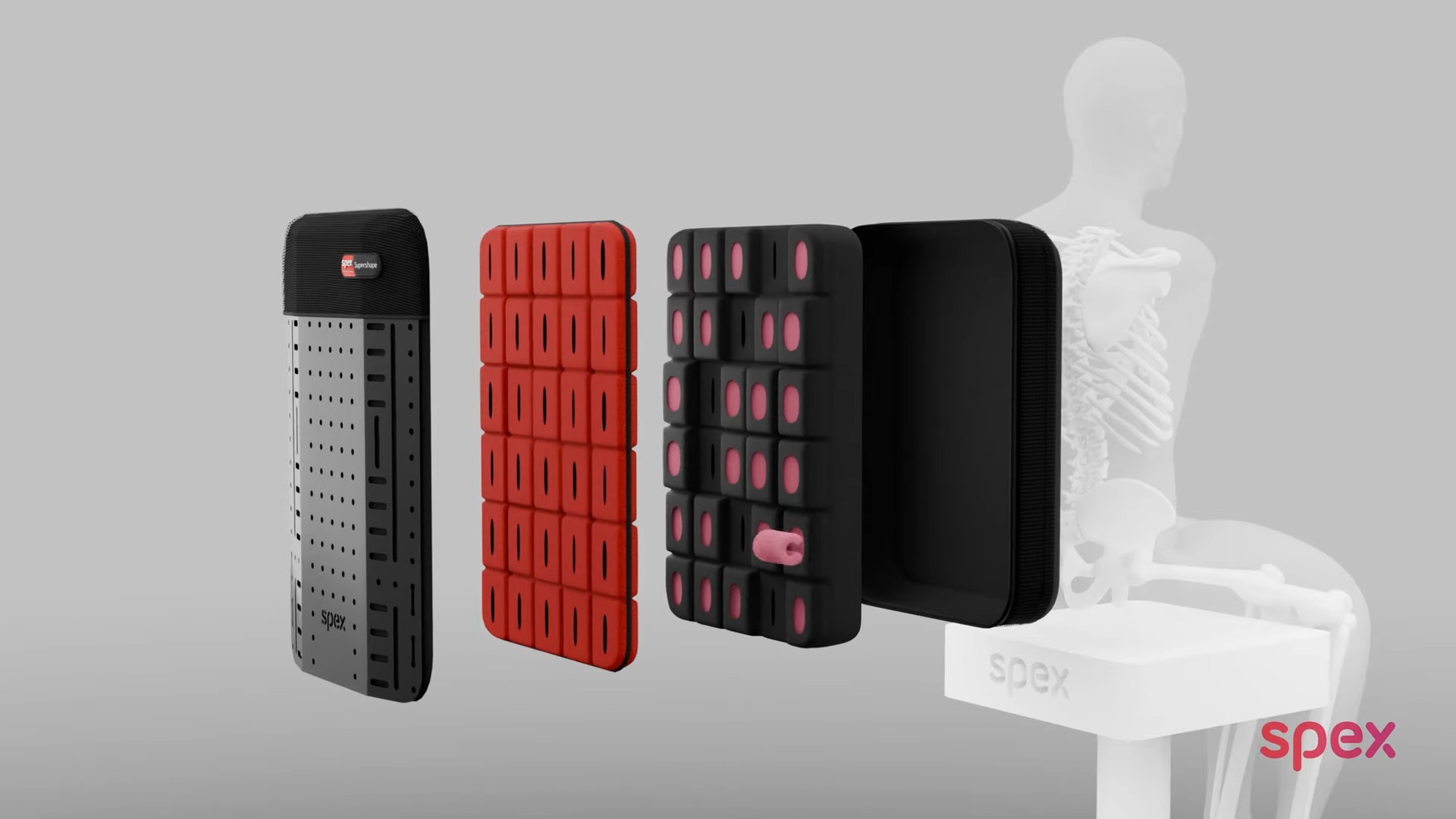

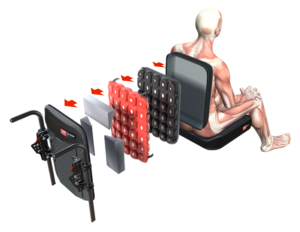

On the inside:

Expansion Fabric Cover: Allows extensive contouring without compromising skin protection.

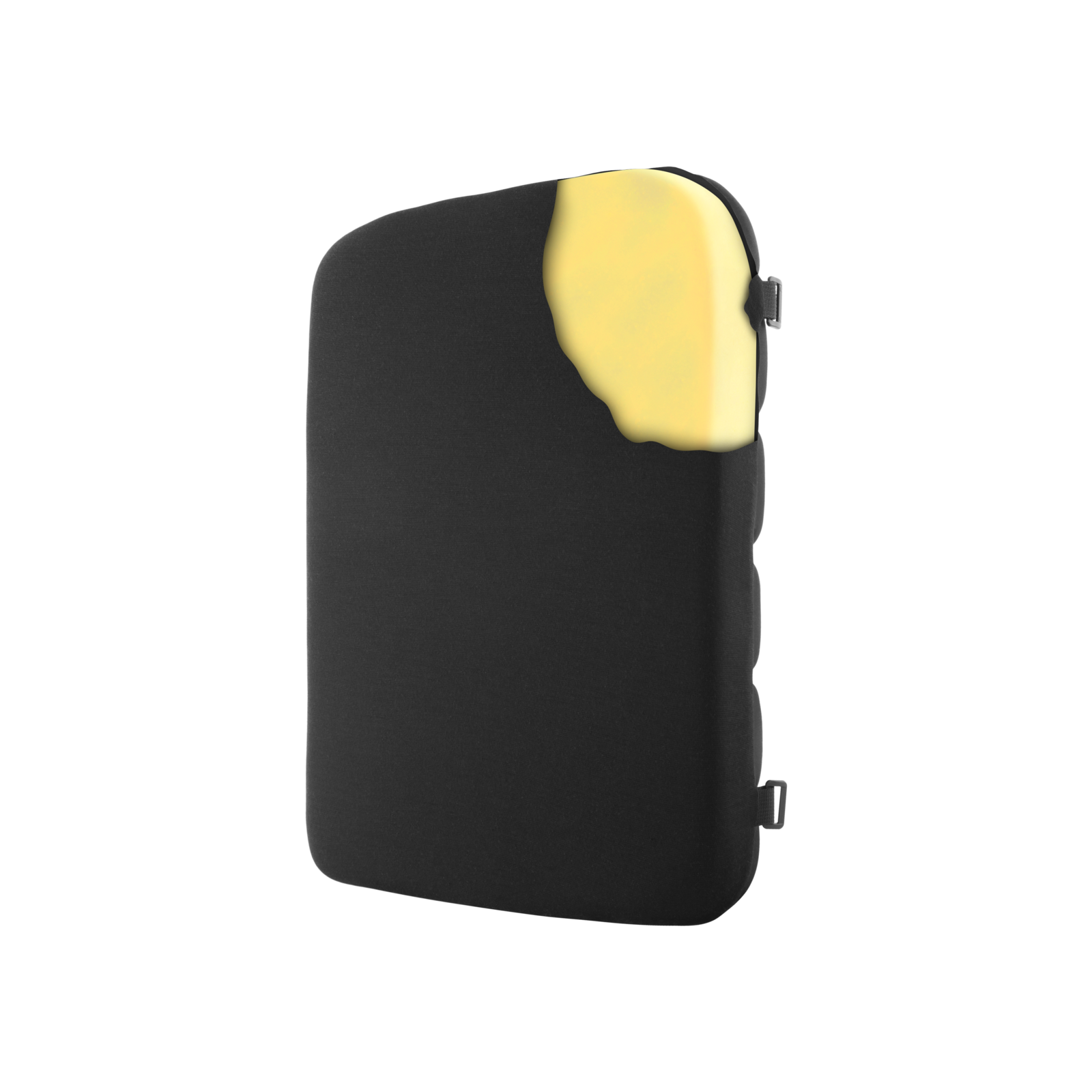

Primary Contouring Section: With comfortable pressure-reducing foam surface layer to absorb bony prominences.
Secondary Contouring Section: With contouring cube cells on both sides.
Positioning Wedges: Zipped up inside the cover.

Read more Read less

Functional

Benefits

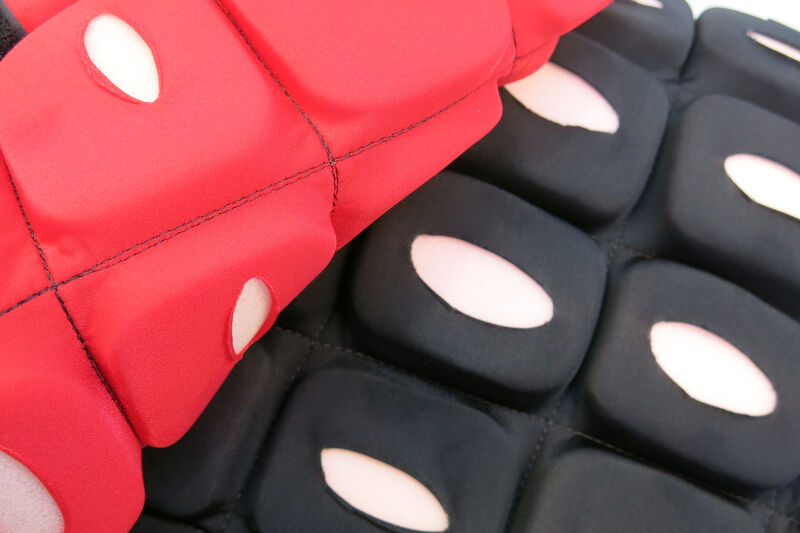

Close up of Spex SuperShape Back Support Contouring Cubes small

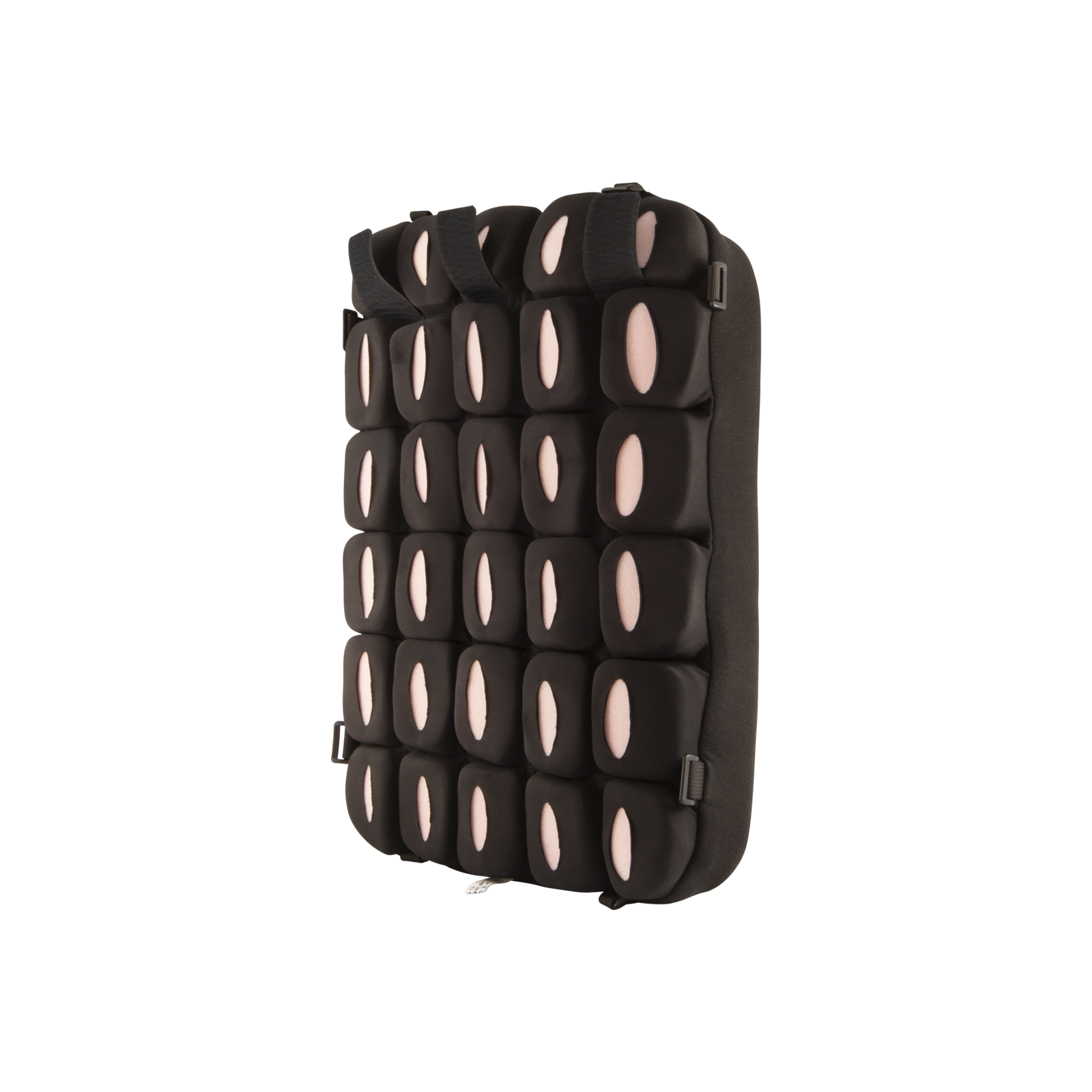

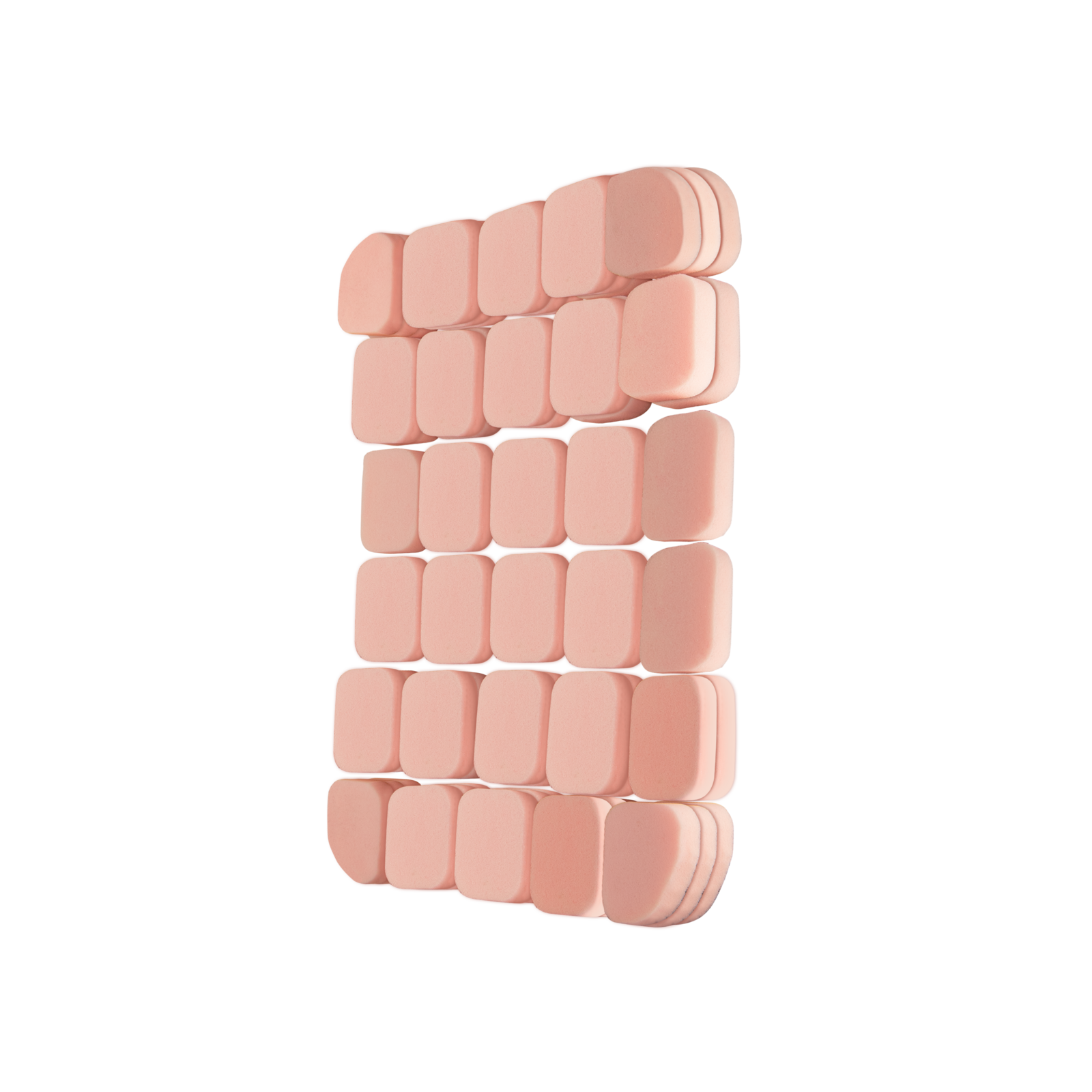

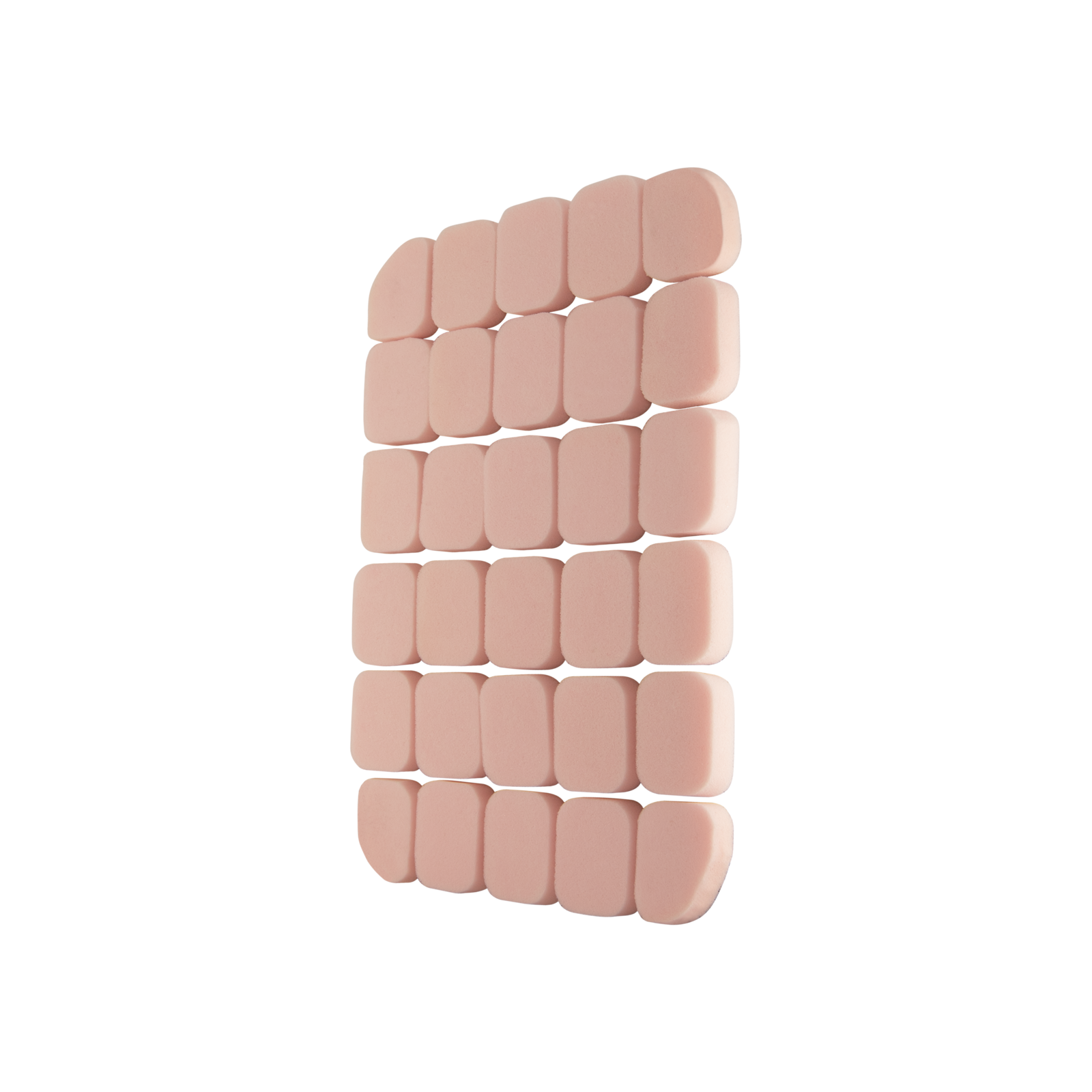

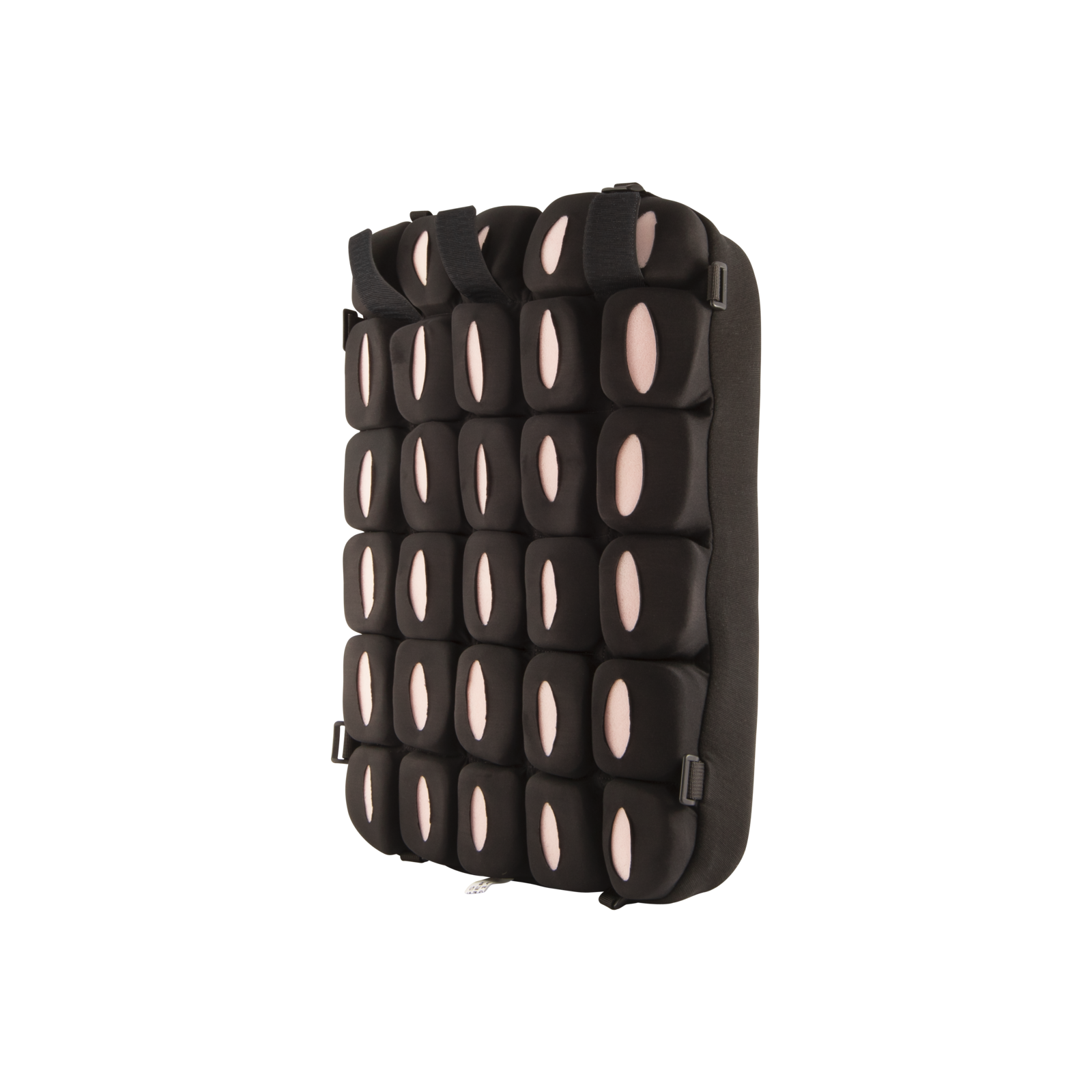

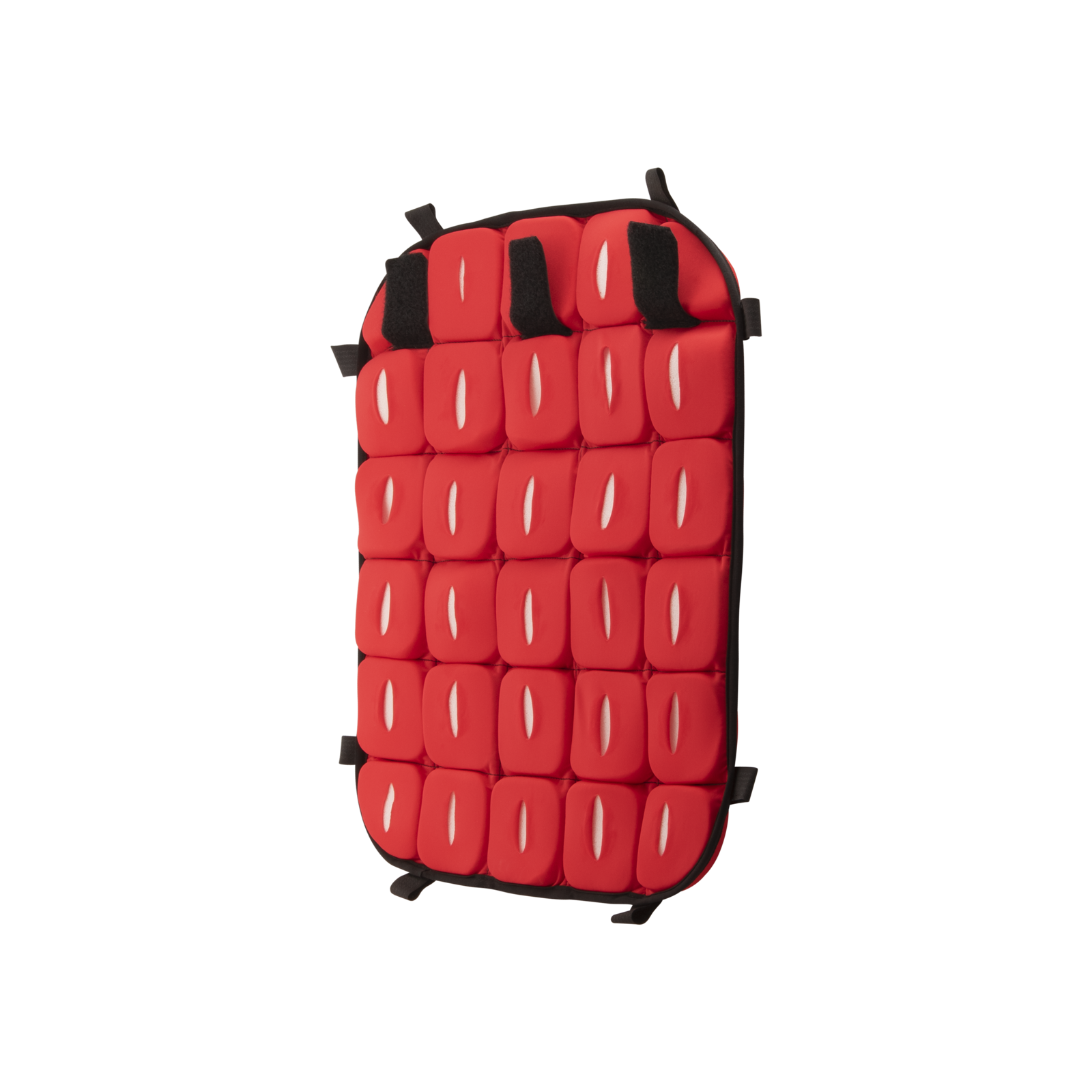

Triple-layered cube contouring cell system

Contouring of the cushioning is essential to apply intimate surface contact to areas of the body which are contoured. A triple-layered cube contouring cell system provides configurations for a perfect fit and shape that is unique to the client. The padded moulding structure is comprised of a three-layered Spex cube contouring substrate. The best result is achieved by creating areas of greater or lesser support with the adjustment of the multiple-layered padded pocket cells.

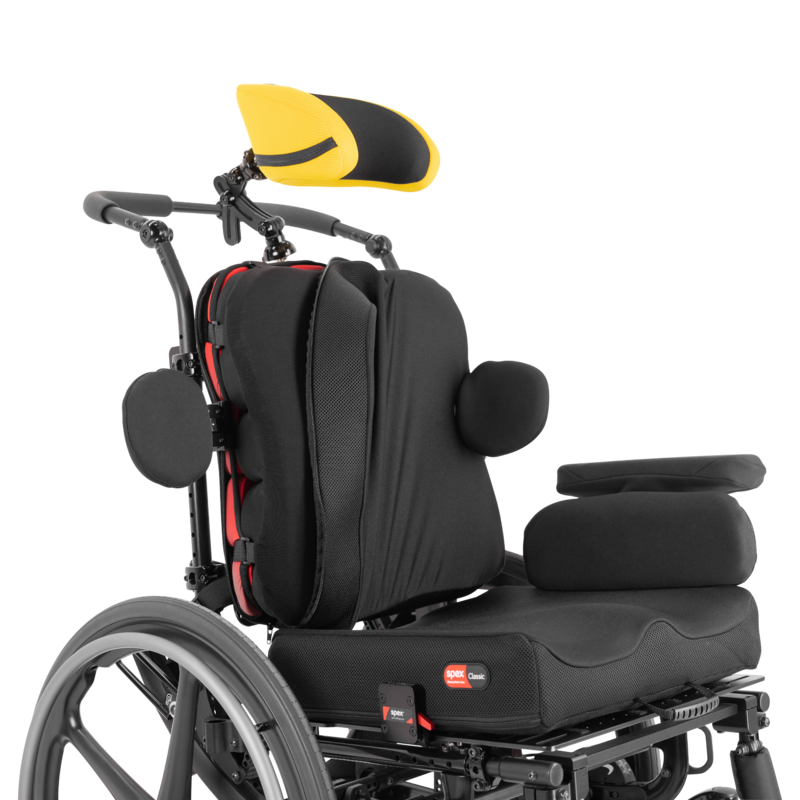

Expansion fabric cover for maximum contouring

Innovative expansion fabric on the contact surface of the back support, allows for varying levels of back support contouring without compromising on skin protection.

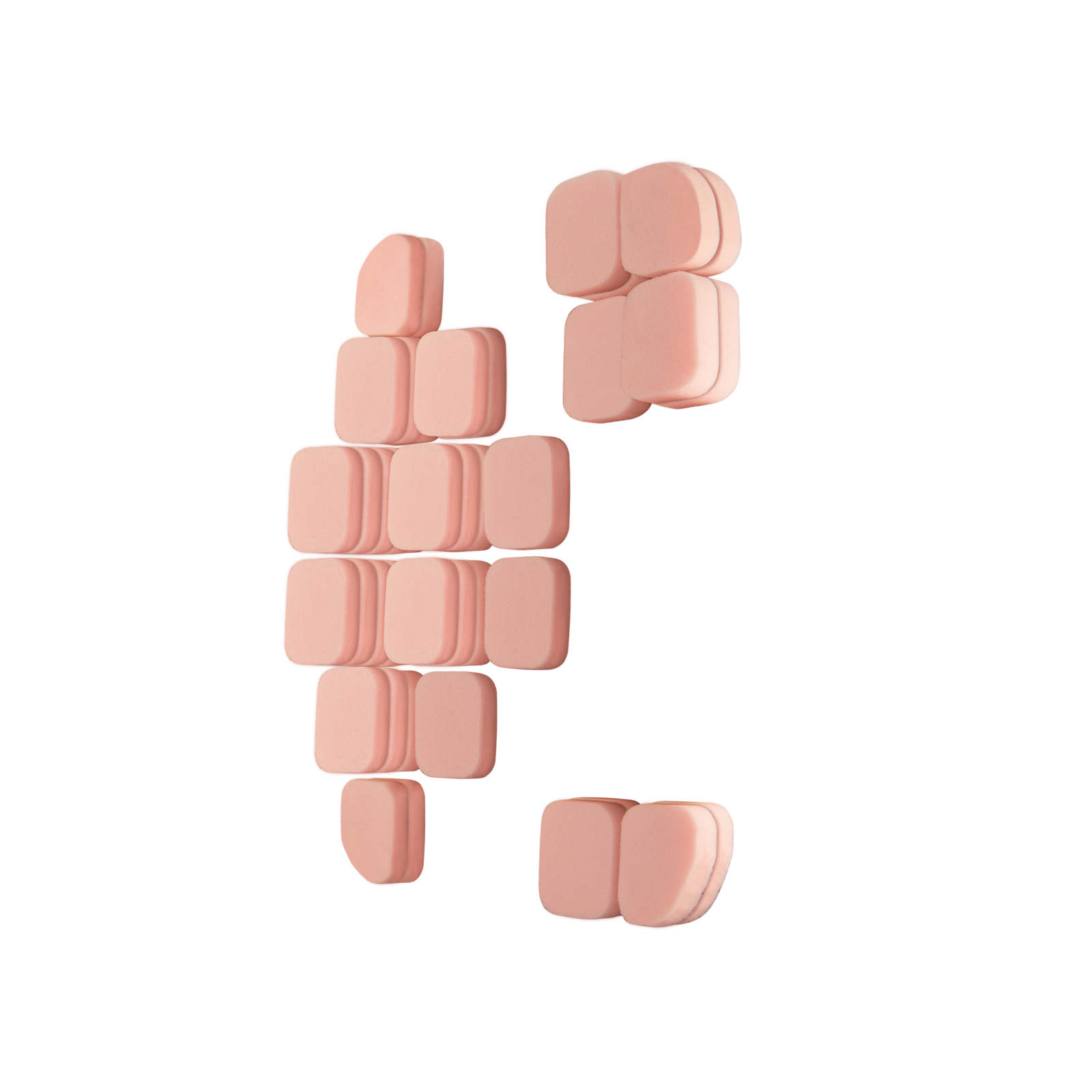

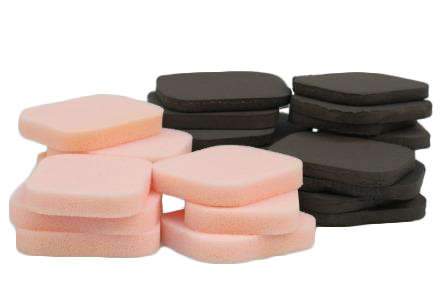

Two available pad densities for optimum support

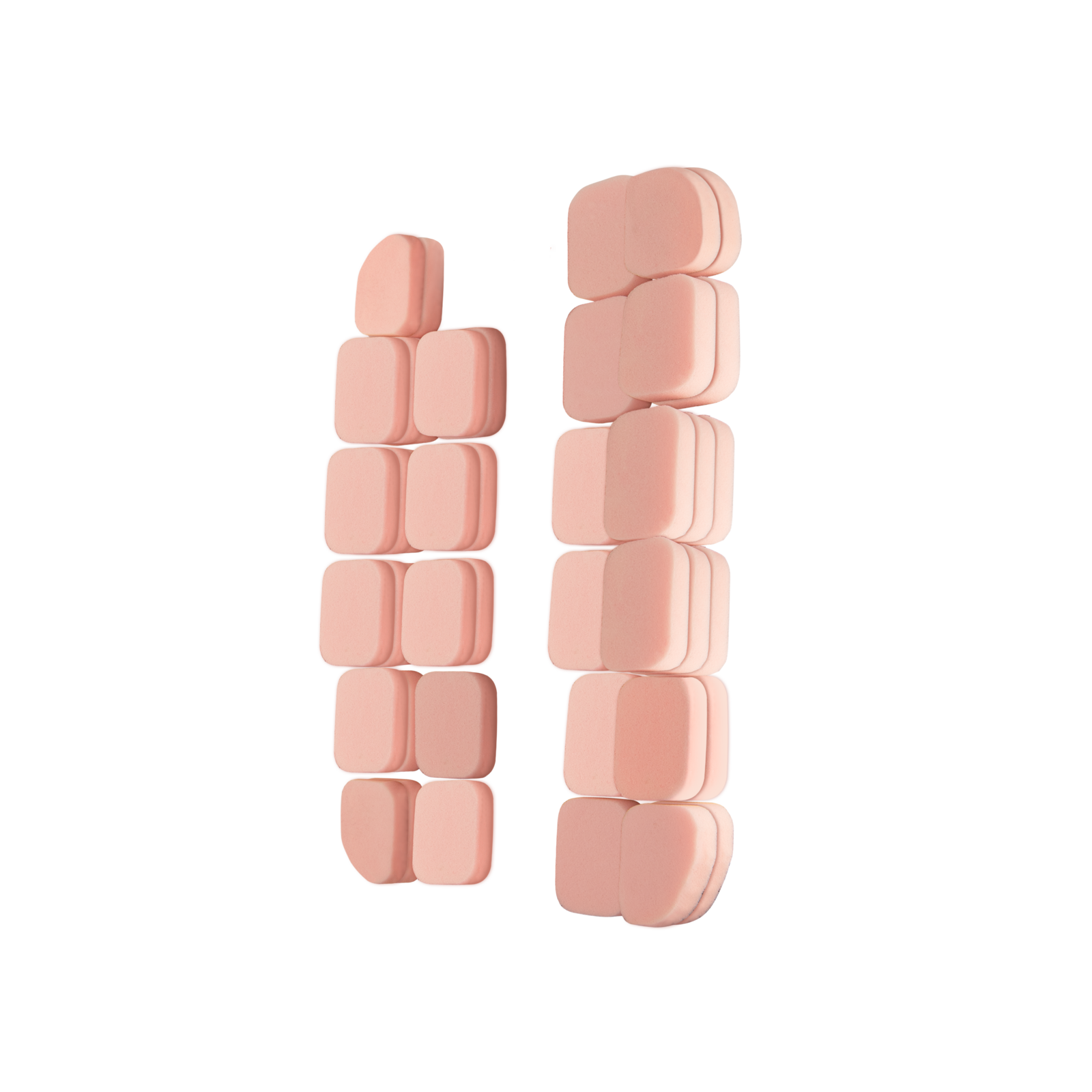

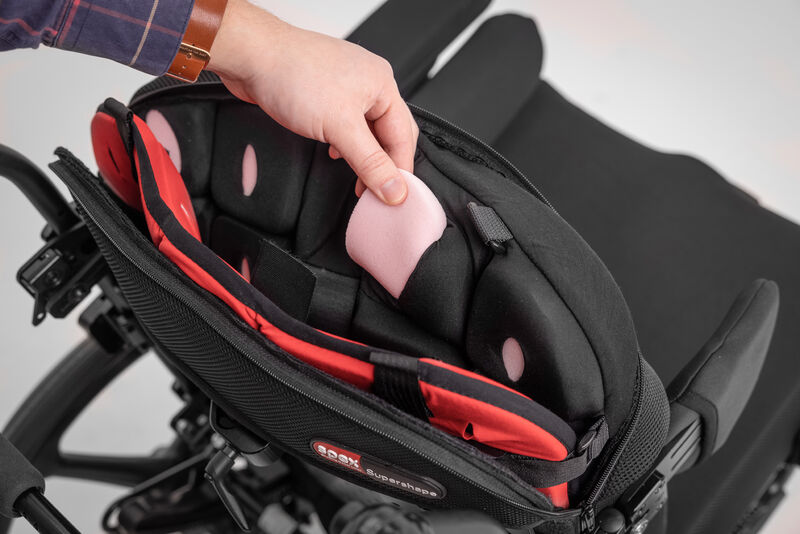

Two densities of Spex contouring pads to insert into the triple-layered cube contouring cell system, are included with every back support to ensure correct personal fitting, stability, and comfort exactly where it is needed.

- Higher density, firmer closed-cell foam to create a contoured foundation.
- Lower density, immersive foam to provide comfort and a more rounded contoured surface.

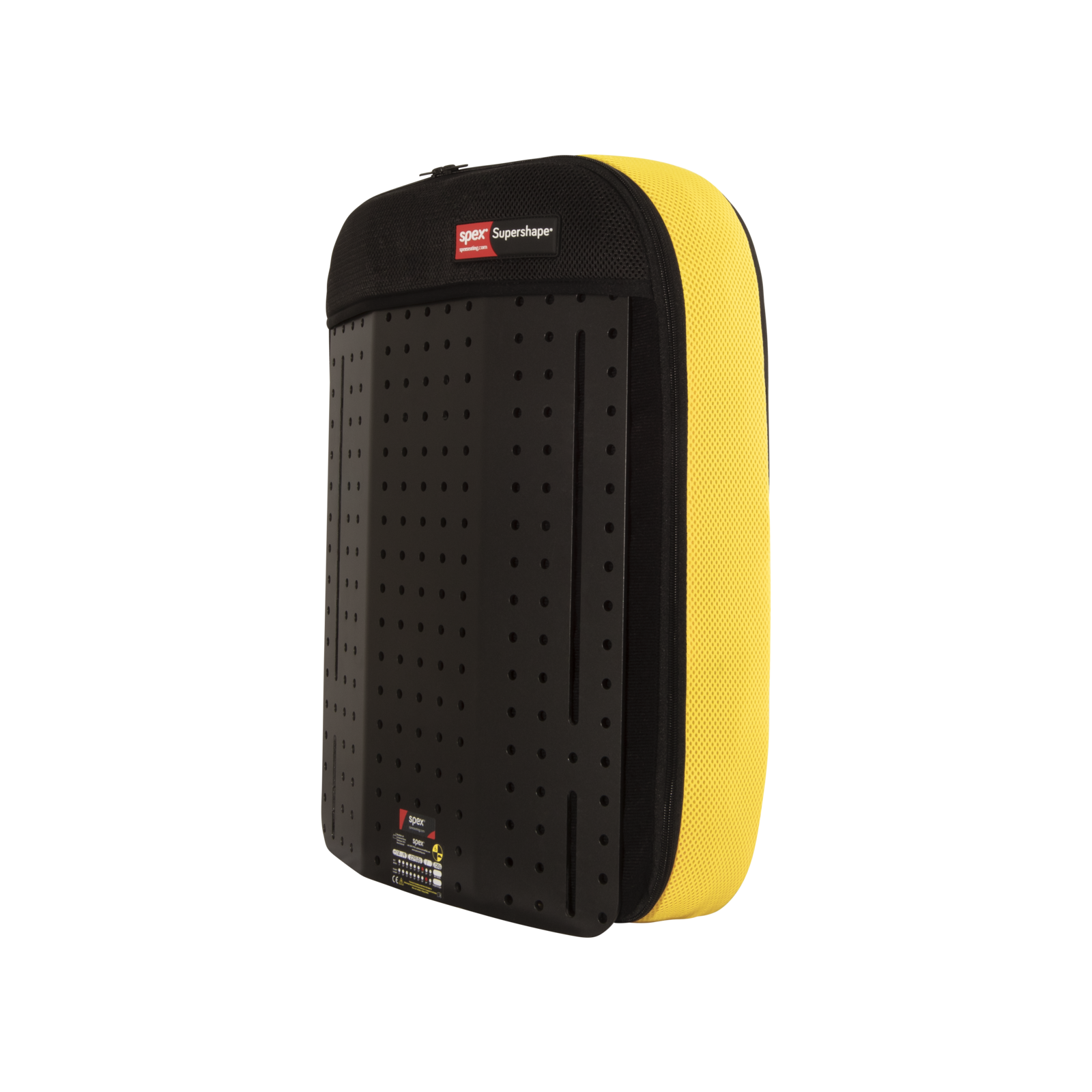

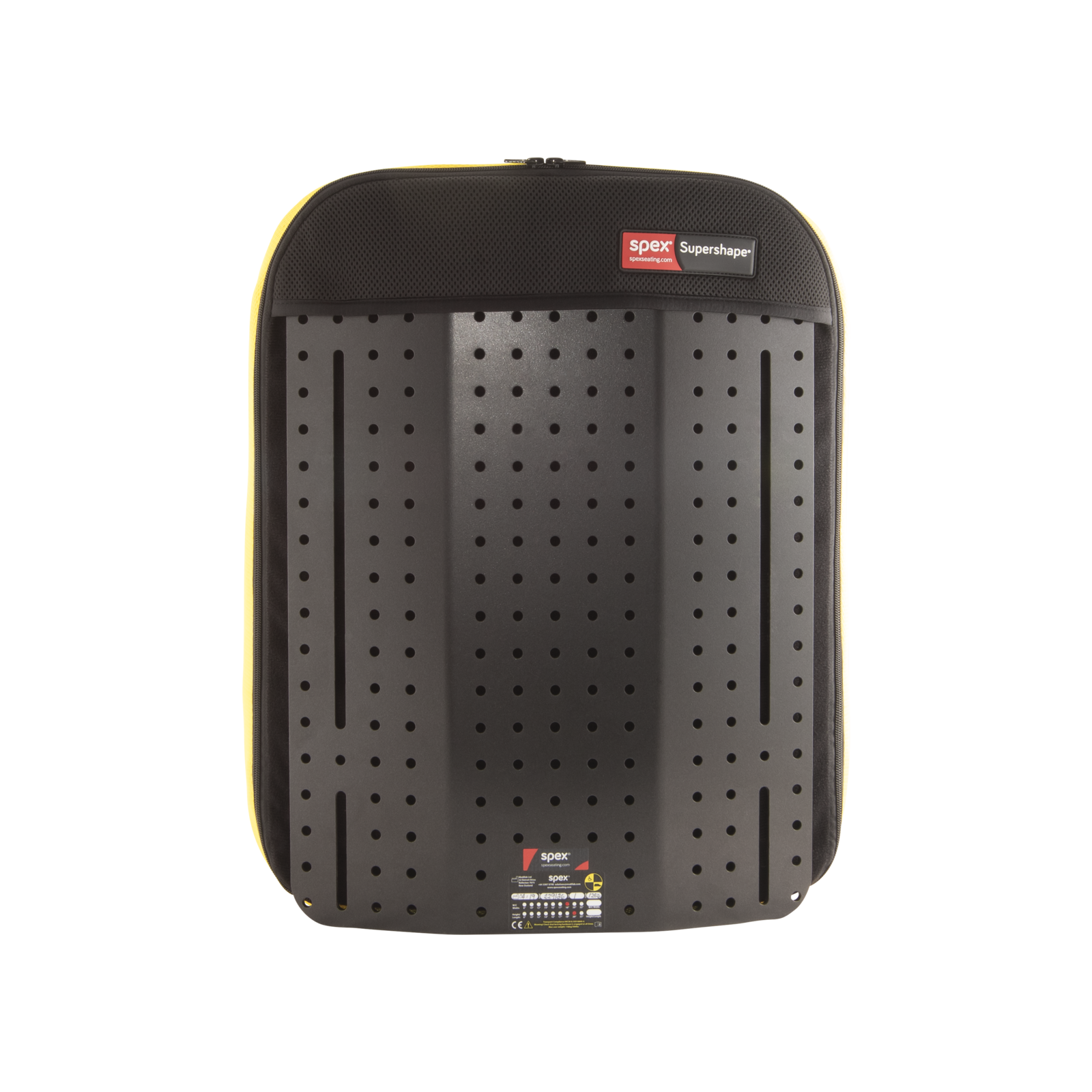

Concealed technology behind the covers

The SuperShape back support has the same stylish Spex look, with all its clever technology hidden beneath the covers!

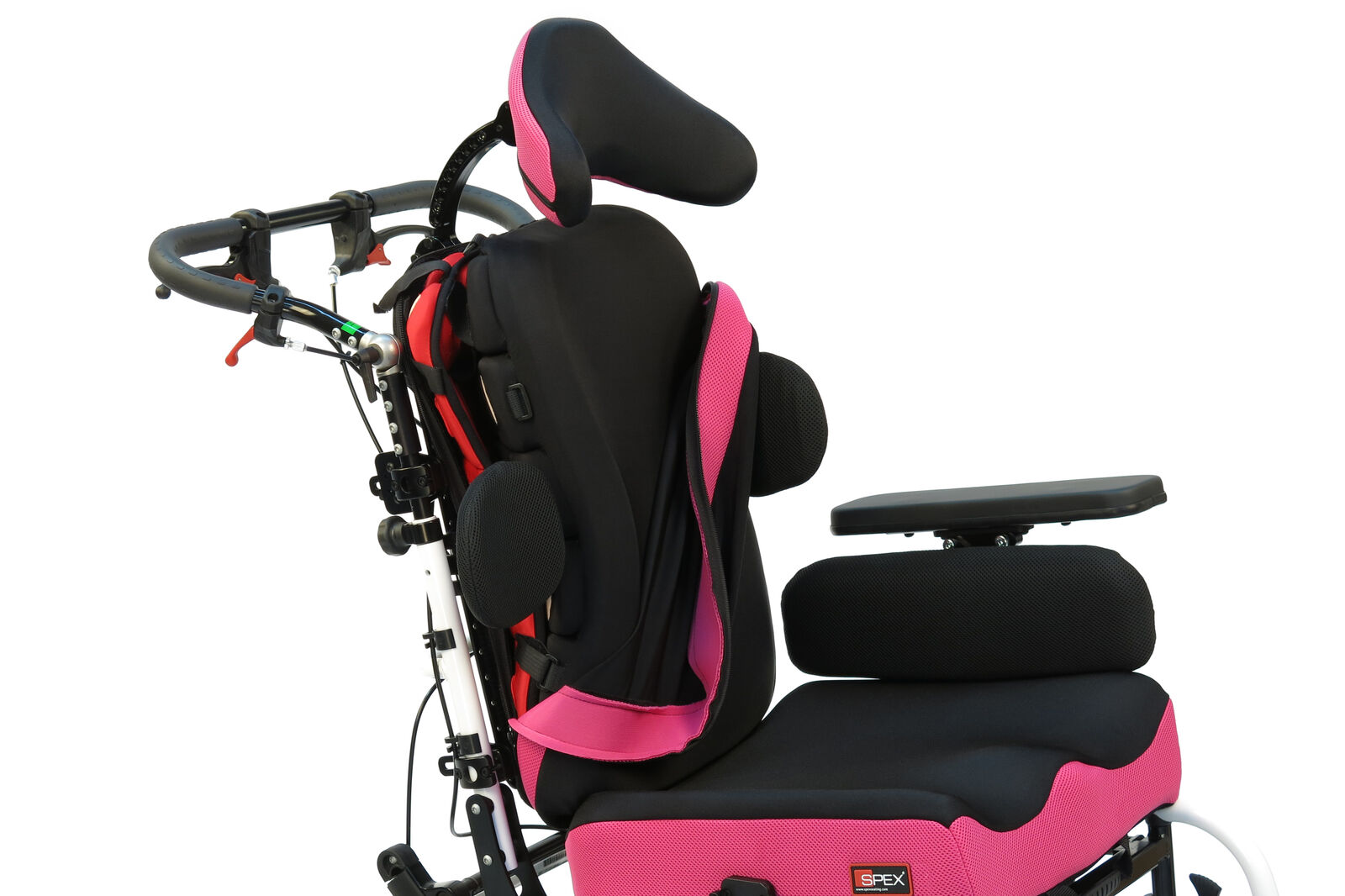

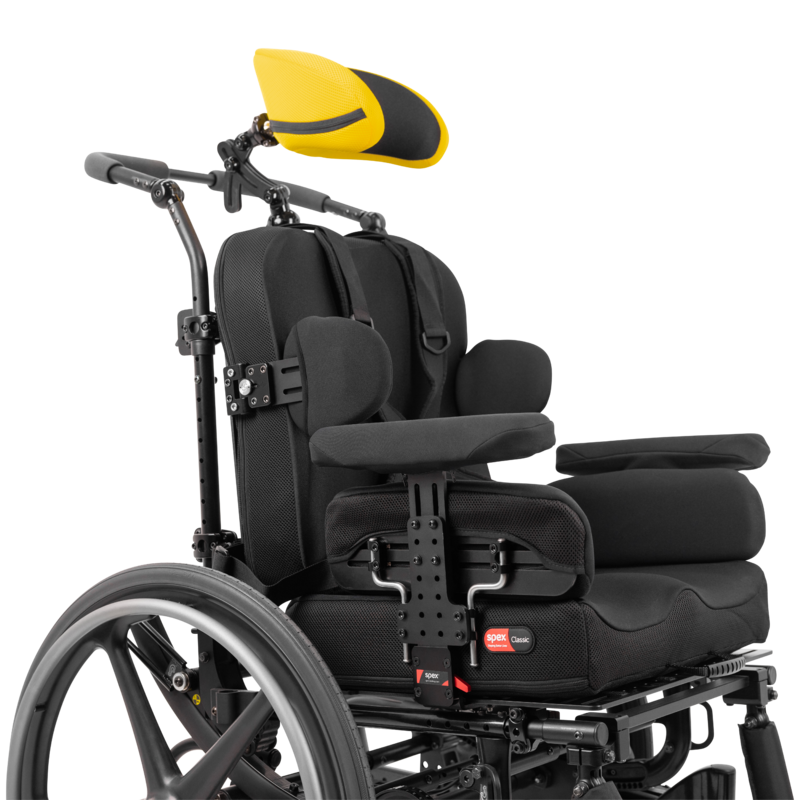

Can be fitted to virtually any wheelchair frame

- Quickie 2
- Q500M
- TA iQ
- TDX SP

Choose from a large range of lateral and head supports

Select from the wide range of Spex Stylo Head Support options available in a variety of colours.

Clinical & Functional

Benefits

Clinical

Functional

Designed for the individual who:

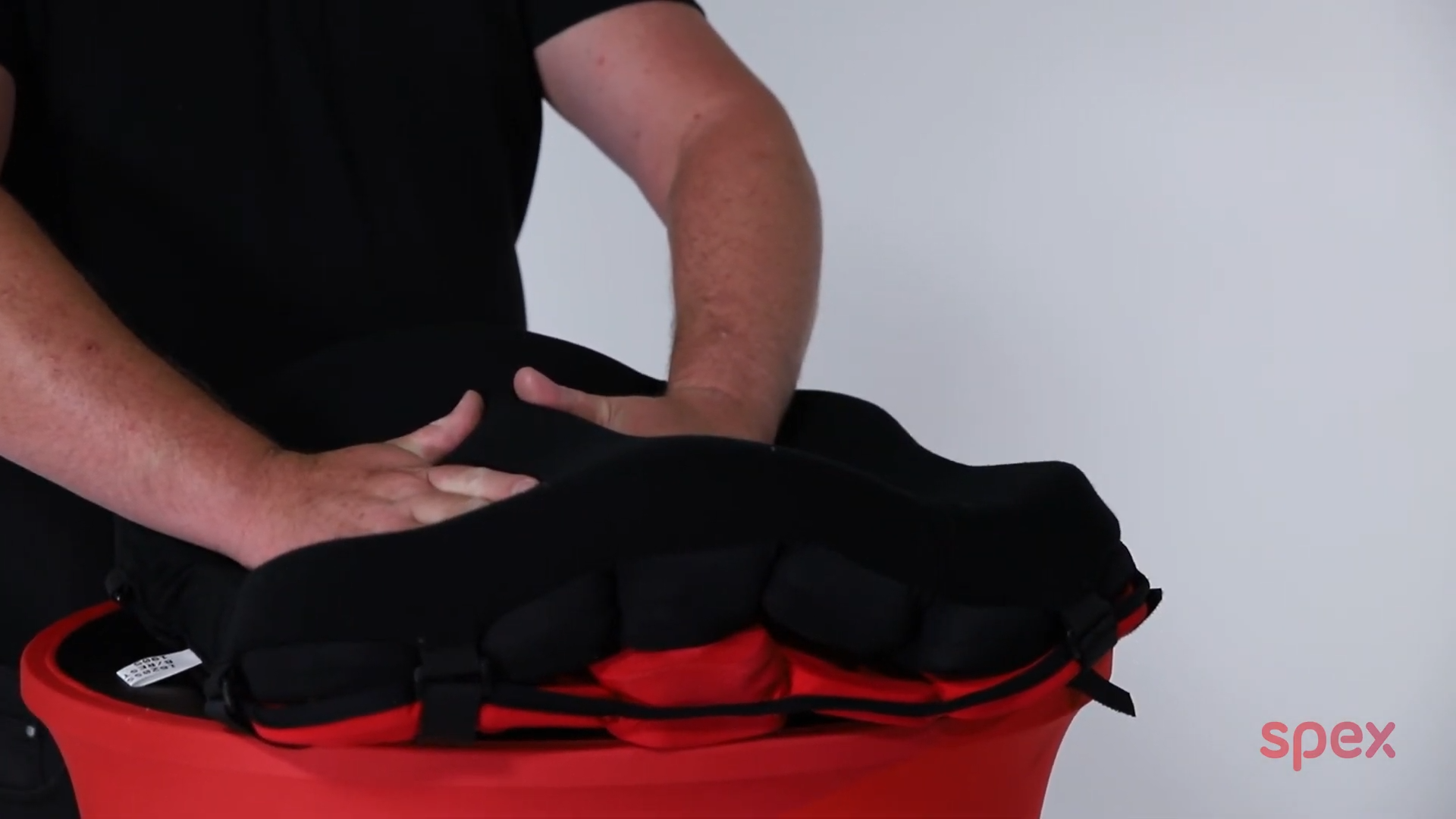

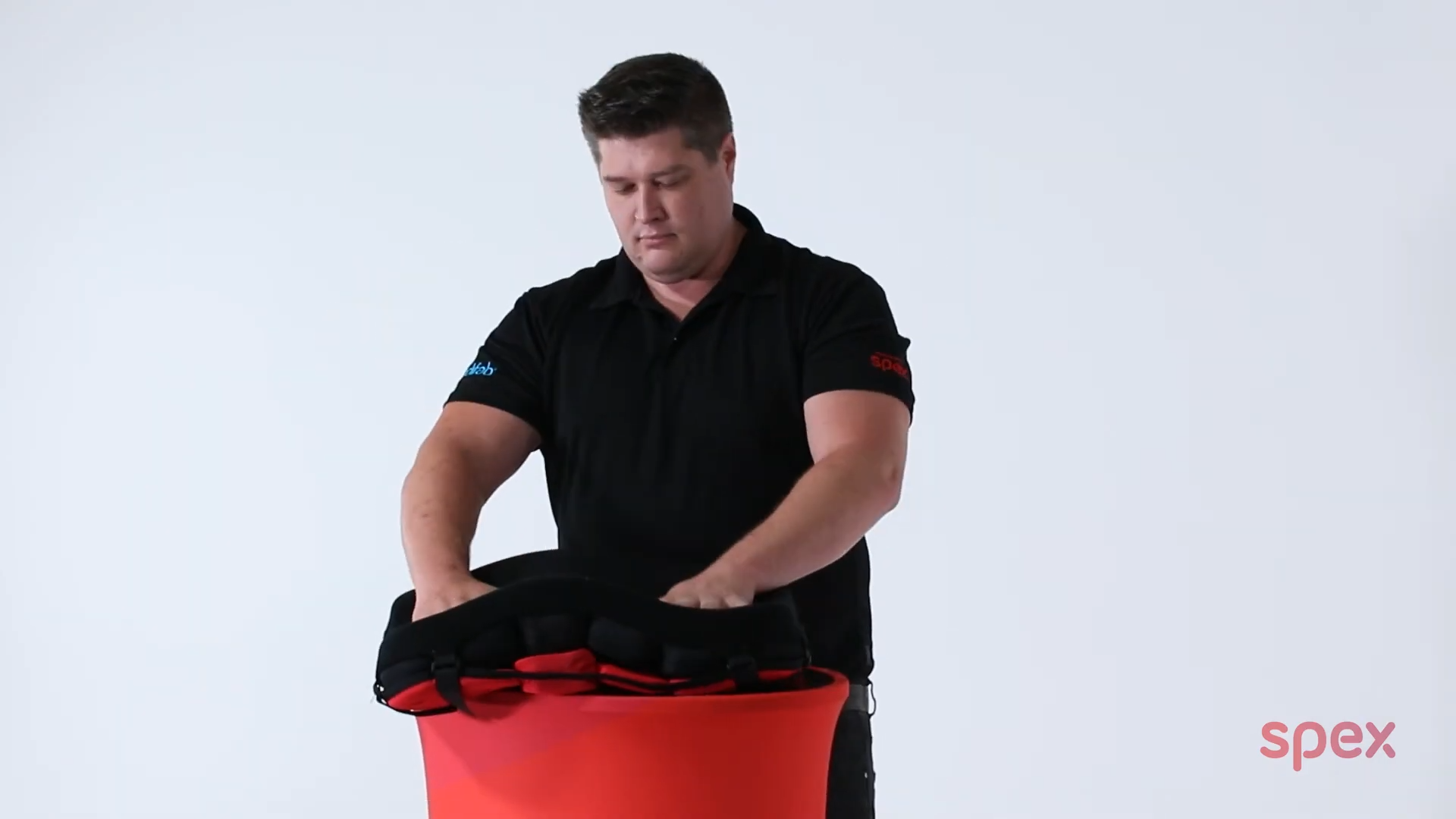

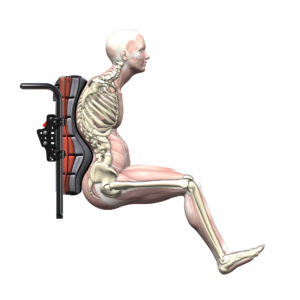

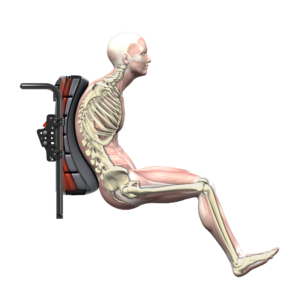

Has complex postural needs such as kyphosis, scoliosis, hyperlordosis, etc
Has significant spinal or trunk asymmetries
Has protruding skeletal prominences
Risks skin breakdown and has pressure care requirements
Requires greater immersion into back support for stability and comfort
Requires torso pain reduction

The contouring of the cushioning is essential to apply intimate surface contact to areas of the body that are contoured. The padded moulding structure is comprised of a three-layered Spex cube contouring substrate. The best result is achieved by creating areas of greater or lesser support with the adjustment of the multiple-layered padded pocket cells. We have developed 2 different densities of Spex cube cells in order to provide stability and comfort where it is needed. The SuperShape can adapt to changing needs and provide enough stability for complex and asymmetric postures

Create shapes, contours and comfort.

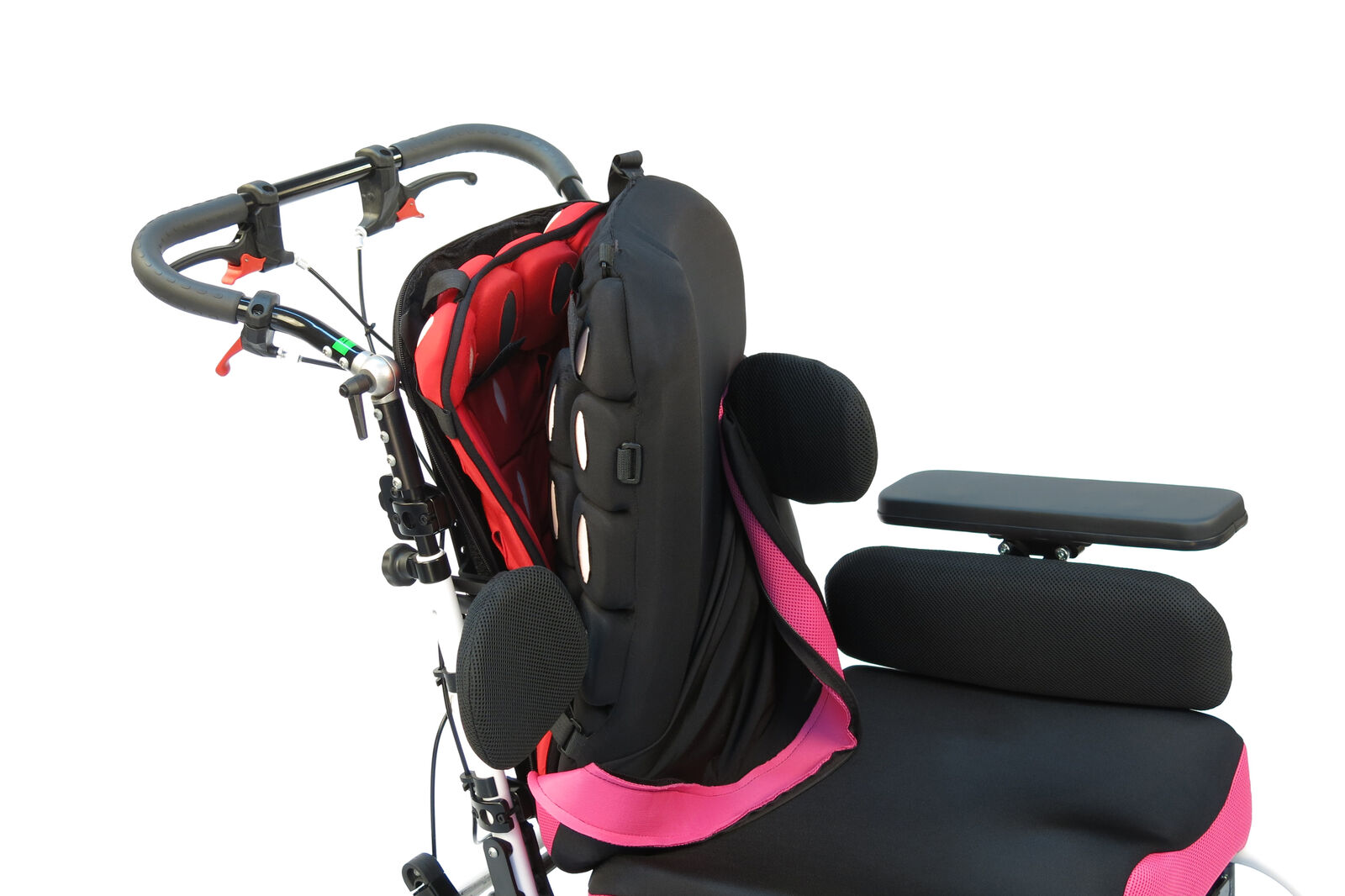

SuperShape back support can be fitted to virtually any wheelchair chassis
Expansion fabric cover that allows all kinds of contouring without compromising skin protection
Comfortable pressure-reducing foam surface layer to absorb bony prominences
The contouring system comprises a triple-layer cell system of cubes whereby padding can be increased or decreased to provide different shapes and configurations to suit any individual for a perfect fit and shape
Deep contour solution which offers exceptional contact to contoured areas of the body

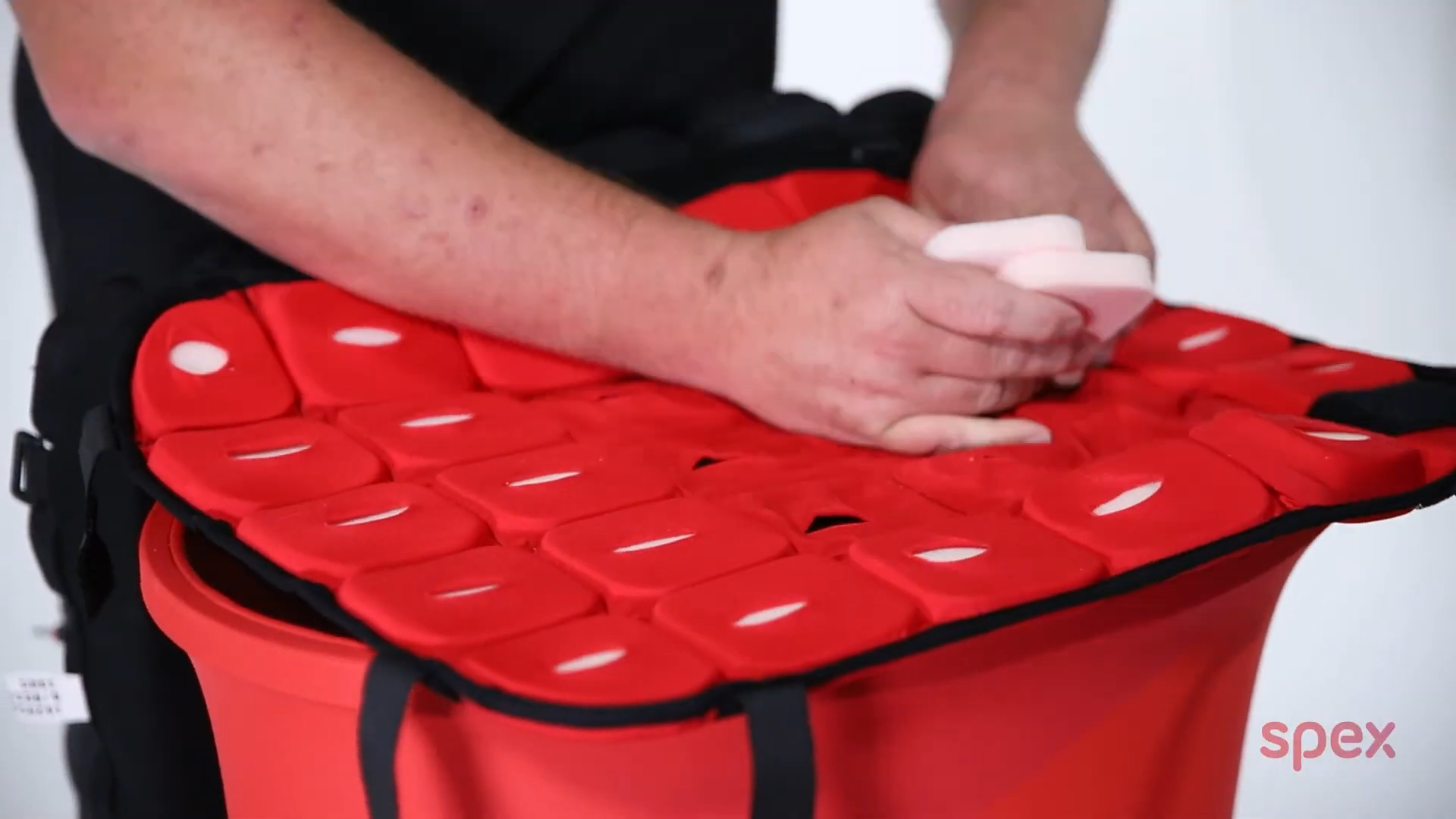

Customisation to contouring is performed on the spot, as many times as you want
Created as the solution for asymmetrical back postures
Modular componentry means you can “mix and match” with different lateral pad options and positioning supports
Wide range of adjustment in angle, depth, and height for growth and changing needs
Breathable, washable cover
Sizes available from 10” to 20” and in different heights for each width
Choose from a large range of lateral supports and head supports
Robust and durable

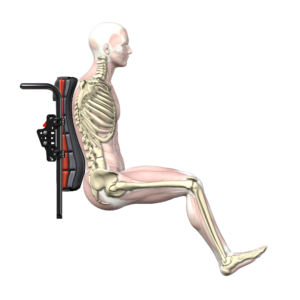

Moderate Needs	Complex Needs	Custom Needs

Contouring of the cushioning is achieved by adjusting the multiple layered padded pocket cells to create areas of greater or lesser support.	On-the-spot contouring allows the patient to adopt their preferred posture for maximum function and comfort.	SuperShape’s simple method accomplishes superior seating results by accurately contouring to the complex shapes seen in highly involved clients.

Spex Lateral Trunk Supports

Select Hardware

Fixed Bracket
Standard Swing-Away Bracket
Axial Swing-Away Bracket

Select Bracket Upgrade

Cane Mount
DeepContour backrest bracket
Extension for DeepContour (commonly used with SuperShape Backrest

Select Comfy-Cover

Extended padding over mechanism to protect arms from metal hardware
Clever release strap for operating the swing away movement
Easy release for users who have limited hand function and need independent use to open the laterals for transfers

Spex Shoulder Strap Guides

Recommended for any harness choice to prevent shoulder straps from falling off shoulders.

The Spex Harness Guides are height adjustable and fit both 1″ and 1.5″ straps. Package includes

a pair of 5mm aluminium strap guides and attachment hardware.

Product Code:

1400-6692-000

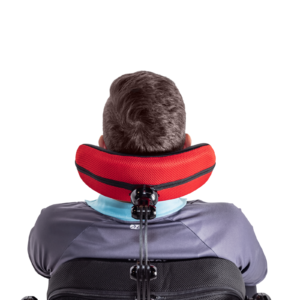

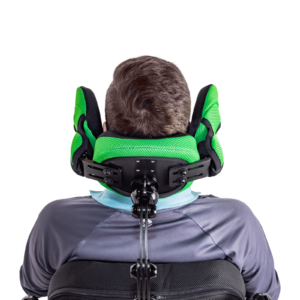

Spex Stylo Head Supports

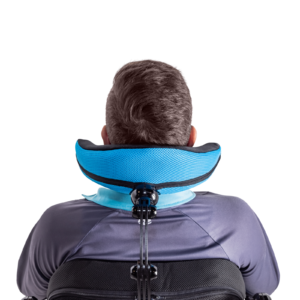

Circle	Comfort	Contour

Unique minimal head support providing direct posterior support for users with good head control. Available in two sizes: Circle 150 and Circle 250.	General use head support pad suited for transit and travel. Available in two sizes: Comfort 250 and Comfort 350.	Contoured shaped pad for superior occipital and suboccipital support. Available in two sizes: Contour 250 and Contour 350.

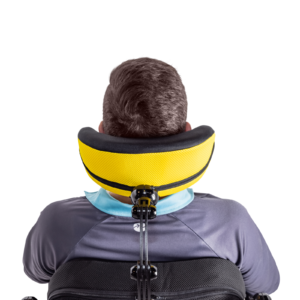

Standard Lateral	Extended Lateral	Adjustable Lateral

One-piece lateral head support solution for moderate head positioning needs. Available in two sizes: Paediatric and Adult.	One-piece lateral head support solution for complex head positioning needs. Available in two sizes: Paediatric and Adult.	A superior adjustable lateral head control system with individualised ‘tuning’. Available in two sizes: Adjustable Lateral 150 and Adjustable Lateral 250.

Custom head supports are available – please contact us for more information.

Resources

SuperShape Back Support Flyer 0.52 MB Spex SuperShape Back Support Contouring Positioning Chart 0.57 MB Spex Back Support User Manual 2.08 MB Spex SuperShape Back Support Splash Flyer 6.33 MB Spex Comparison Chart - Back Supports (International) 0.40 MB

Ella

Ella's Story

Celebrating six years of the SuperShape Back Support

Read the full story Watch Ella's Story

Hardware

Options

Spex Single Mount Back Support Hardware

Spex Dual Mount Back Support Hardware

Spex Heavy-Duty Quad Mount Back Support Hardware

Spex Quad Mount Fixed Back Support Hardware

Spex Direct Mount Back Support Hardware

Accessories

Spex Stylo Head Supports

Spex Medial Thigh Support

Spex Lateral Trunk Supports

Spex Hip Belts

Spex Limb Supports

Spex Tray Tables

Spex Arm Support Hardware

Spex Arm & Thigh Hardware

Spex Thigh Support Hardware

Spex Thigh and Arm Support Pads

Spex Stylo Head Supports

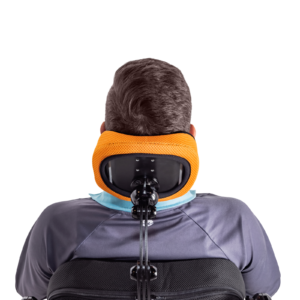

Circle	Comfort	Contour

Unique minimal head support providing direct posterior support for users with good head control. Available in two sizes: Circle 150 and Circle 250.	General use head support pad suited for transit and travel. Available in two sizes: Comfort 250 and Comfort 350.	Contoured shaped pad for superior occipital and suboccipital support. Available in two sizes: Contour 250 and Contour 350.

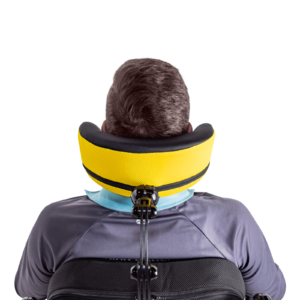

Standard Lateral	Extended Lateral	Adjustable Lateral

One-piece lateral head support solution for moderate head positioning needs. Available in two sizes: Paediatric and Adult.	One-piece lateral head support solution for complex head positioning needs. Available in two sizes: Paediatric and Adult.	A superior adjustable lateral head control system with individualised ‘tuning’. Available in two sizes: Adjustable Lateral 150 and Adjustable Lateral 250.

Custom head supports are available – please contact us for more information.

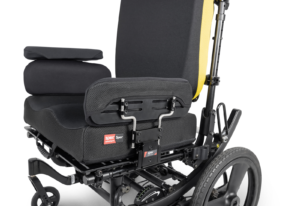

Spex Medial Thigh Support

Swing-Down, Standard Pad

Code	Size	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F(mm)
1162-1501-000	1	60	145	95	40	40	65
1162-1502-000	2	60	155	100	60	50	65
1162-1503-000	3	60	185	105	60	60	75

Swing-Down, Axial-Adjustable Pad

Code	Size	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
1162-1601-000	1	70-140	145	95	50-120	40	65
1162-1602-000	2	70-140	155	100	60-140	50	65
1162-1603-000	3	70-160	185	105	60-140	60	75

For medial thigh support customisations please contact us.

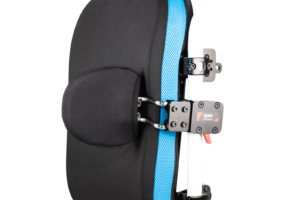

Spex Lateral Trunk Supports

Select Hardware

Fixed Bracket
Standard Swing-Away Bracket
Axial Swing-Away Bracket

Select Bracket Upgrade

Cane Mount
DeepContour backrest bracket
Extension for DeepContour (commonly used with SuperShape Backrest

Select Comfy-Cover

Extended padding over mechanism to protect arms from metal hardware
Clever release strap for operating the swing away movement
Easy release for users who have limited hand function and need independent use to open the laterals for transfers

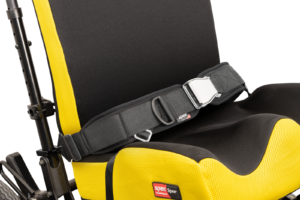

Spex Hip Belts

2 Point

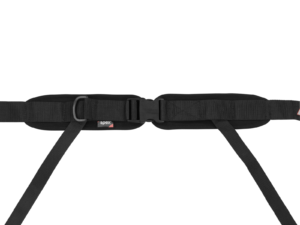

Centre Pull

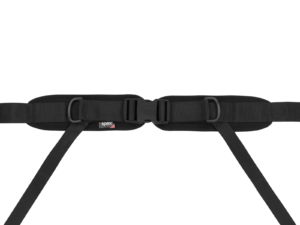

2 Point Dual-Centre Pull

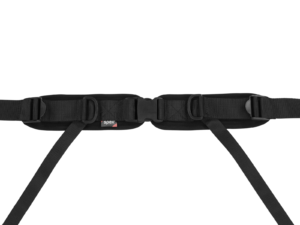

4 Point Side Pull

4 Point Centre Pull

4 Point Dual-Centre Pull

User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness.

User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes.

Carer operated. Tensions from the rear of the pad pulling towards the centre, for more severe needs. Suits clients with high muscle tone.

User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness.

User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes.

Harnesses

Hip Belt Style	X-Small	Small	Medium	Large
	Pad width 30cm	Pad width 36cm	Pad width 46cm	Pad width 56cm
2 Point Padded Centre Pull	1405-6210-XXX	1405-6211-XXX	1405-6211-XXX	1405-6211-XXX
2 Point Padded Dual Centre Pull	1405-6211-XXX	1405-6211-XXX	1405-6211-XXX	1405-6211-XXX
4 Point Padded Centre Pull	1405-6211-XXX	1405-6211-XXX	1405-6211-XXX	1405-6211-XXX
4 Point Padded Dual Centre Pull	1405-6211-XXX	1405-6211-XXX	1405-6211-XXX	1405-6211-XXX
4 Point Padded Side Pull	1405-6211-XXX	1405-6211-XXX	1405-6211-XXX	1405-6211-XXX

The last three digits of the code refer to the buckle type. See below table for buckle options.

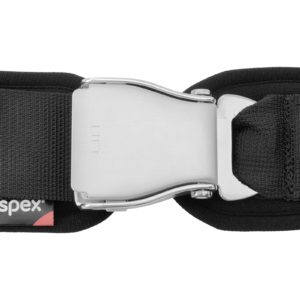

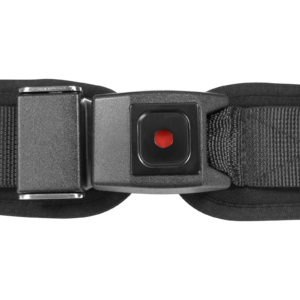

Buckle Options

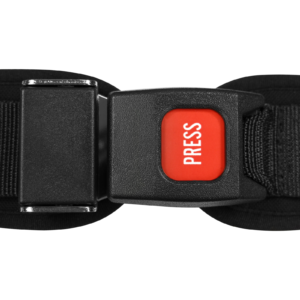

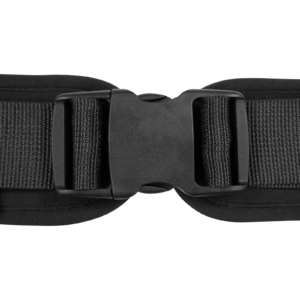

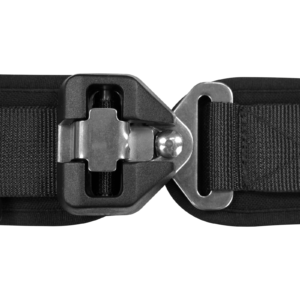

Side Release	Centre Release	Anti-Escape	Pen Popper	Easy Release Latch

-027	-028	-026	-025	-023
Simple and easy to click together and undo.	Robust design to keep the user positioned and safe.	Prevent users with challenging behaviour from releasing the buckle.	Requires a pen to prod the buckle mechanism to release open.	Simply lift the metal buckle flap and slide the buckle apart.

Note: These harnesses are a positioning device only. Do not use as a safety restraint in vehicles.

Spex Limb Supports

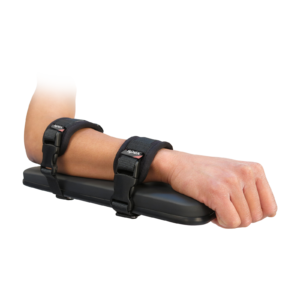

Padded Forearm Straps

Size	Length	Set of Four	One only
SML	150 mm	1408-6511-017	1408-6521-017
MED	180 mm	1408-6512-017	1408-6522-017
LGE	230 mm	1408-6513-017	1408-6523-017

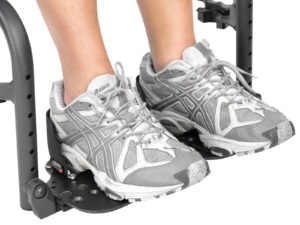

Heel Loops

Size	Pair
SML	1403-6181-017
MED	1403-6182-017
LGE	1403-6183-017

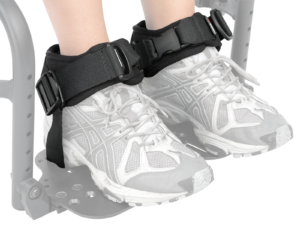

Footfast Stabilisers

Size	Circumference	Standard Pair	Pair with Rear Retainer Strap
SML	15-23 cm (Inner)	1401-6161-017	1401-6165-017
MED	22-30 cm (Inner)	1401-6162-017	1401-6166-017
LGE	26-38 cm (Inner)	1401-6163-017	1401-6167-017

Padded Calf Straps

Code	W/C Width	Height	Code	W/C Width	Height
1402-6170-017	10″	5 cm	1402-6174-017	17″	9 cm
1402-6171-017	12″	5 cm	1402-6175-017	18 “	11 cm
1402-6172-017	14″	7 cm	1402-6176-017	20″	13 cm
1402-6173-017	16″	9 cm

Spex Tray Tables

Size	Width	Depth	Black ABS Tray Top	Clear Polycarbonate Tray Top
Small	450 mm	450 mm	1311-7101-000	1311-7111-000
Medium	550 mm	550 mm	1311-7102-000	1311-7112-000
Large	650 mm	650 mm	1311-7103-000	1311-7113-000

Slide and Lock

Drop and Lock

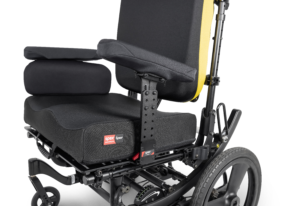

Spex Arm Support Hardware

Seat Pan

Each	Quick Release	Swing-Down	Fixed Mount
Fixed	1156-0100-110	1156-0100-120	1156-0100-130
Fixed Kidz	1156-0200-110	1156-0200-120	1156-0200-130
Angle-Adjust	1156-0300-110	1156-0300-120	1156-0300-130

Seat Rail

Each	Quick Release	Swing-Down	Fixed Mount
Fixed	1156-0100-210	1156-0100-220	1156-0100-230
Fixed Kidz	1156-0200-210	1156-0200-220	1156-0200-230
Angle-Adjust	1156-0300-210	1156-0300-220	1156-0300-230

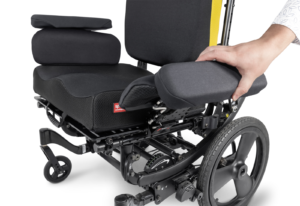

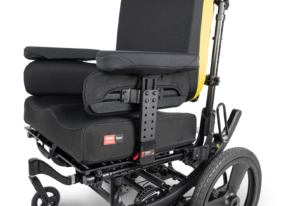

Spex Arm & Thigh Hardware

Seat Pan

Each	Quick Release	Swing-Down	Fixed Mount
Angle-Adjust Arm + Axial Thigh	1156-0301-110	1156-0301-120	1156-0301-130
Angle-Adjust Arm + Fixed Thigh	1156-0302-110	1156-0302-120	1156-0302-130
Fixed Arm + Axial Thigh	1156-0101-110	1156-0101-120	1156-0101-130
Kidz Fixed Arm + Axial Thigh	1156-0201-110	1156-0201-120	1156-0201-130
Fixed Arm + Fixed Thigh	1156-0102-110	1156-0102-120	1156-0102-130
Kidz Fixed Arm + Fixed Thigh	1156-0202-110	1156-0202-120	1156-0202-130

Seat Rail

Each	Quick Release	Swing-Down	Fixed Mount
Angle-Adjust Arm + Axial Thigh	1156-0301-210	1156-0301-220	1156-0301-230
Angle-Adjust Arm + Fixed Thigh	1156-0302-210	1156-0302-220	1156-0302-230
Fixed Arm + Axial Thigh	1156-0101-210	1156-0101-220	1156-0101-230
Kidz Fixed Arm + Axial Thigh	1156-0201-210	1156-0201-220	1156-0201-230
Fixed Arm + Fixed Thigh	1156-0102-210	1156-0102-220	1156-0102-230
Kidz Fixed Arm + Fixed Thigh	1156-0202-210	1156-0202-220	1156-0202-230

Spex Thigh Support Hardware

Seat Pan

Each	Quick Release	Swing-Down	Fixed Mount
Fixed	1156-0002-110	1256-0002-120	1156-0002-130
Axial	1156-0001-110	1156-0001-120	1156-0001-130

Seat Rail

Each	Quick Release	Swing-Down	Fixed Mount
Fixed	1156-0002-210	1156-0002-220	1156-0002-230
Axial	1156-0001-210	1156-0001-220	1156-0001-230

Spex Thigh and Arm Support Pads

Thigh Support Pads

Code	Size	A (mm)	B (mm)	E (mm)	PER
1156-1010-400	10″	265	90	35	EA
1156-1012-400	12″	310	95	35	EA
1156-1014-400	14″	360	130	50	EA
1156-1016-400	16″	410	135	50	EA
1156-1018-400	18″	460	145	50	EA
1156-1020-400	20″	510	160	50	EA

Arm Supports Pads

Code	Size	A (mm)	B (mm)	PER
1156-5811-400	1 Narrow	40	250	EA
1156-5812-400	2 Narrow	50	300	EA
1156-5813-400	3 Narrow	60	350	EA
1156-5821-400	1 Wide	70	250	EA
1156-5822-400	2 Wide	80	300	EA
1156-5823-400	3 Wide	90	350	EA

For custom arm or thigh supports please contact us.

Specifications

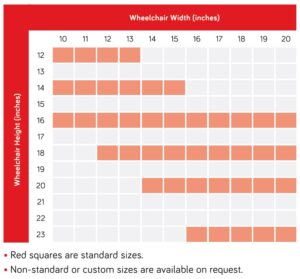

Sizing

Weight Capacity

Product Codes

The thickness of the back support is 10 cm. The Spex SuperShape Back Support is designed to be contoured and this measurement only reflects the thickness without any of this contouring. Therefore the back support thickness will likely be less than 10cm in some sections and more in others.

Weight Capacity

Back Support Size	10″-15″ (25.4-38 cm)	16″-20″ (41-51 cm)	21″+ (53 cm+)
Maximum Occupant Weight	200 lb (90 kg)	300 lb (136 kg)	Must use Heavy-Duty brackets 400 lb (180 kg)
Maximum Occupant Weight with Heavy-Duty brackets	300 lb (136 kg)	400 lb (180 kg)	Must use Heavy-Duty brackets 400 lb (180 kg)

W/C Width	Height	Back Support Code	Spare Cover	Incontinence Cover
10″	12″	1256-1012-0SS	1256-1012-0SS-C	1256-1012-0SS-I
	14″	1256-1014-0SS	1256-1014-0SS-C	1256-1014-0SS-I
	16″	1256-1016-0SS	1256-1016-0SS-C	1256-1016-0SS-I
11″	12″	1256-1112-0SS	1256-1112-0SS-C	1256-1112-0SS-I
	14″	1256-1114-0SS	1256-1114-0SS-C	1256-1114-0SS-I
	16″	1256-1116-0SS	1256-1116-0SS-C	1256-1116-0SS-I
12″	12″	1256-1212-0SS	1256-1212-0SS-C	1256-1212-0SS-I
	14″	1256-1214-0SS	1256-1214-0SS-C	1256-1214-0SS-I
	16″	1256-1216-0SS	1256-1216-0SS-C	1256-1216-0SS-I
13″	12″	1256-1312-0SS	1256-1312-0SS-C	1256-1312-0SS-I
	14″	1256-1314-0SS	1256-1314-0SS-C	1256-1314-0SS-I
	16″	1256-1316-0SS	1256-1316-0SS-C	1256-1316-0SS-I
	18″	1256-1318-0SS	1256-1318-0SS-C	1256-1318-0SS-I
14″	14″	1256-1414-0SS	1256-1414-0SS-C	1256-1414-0SS-I
	16″	1256-1416-0SS	1256-1416-0SS-C	1256-1416-0SS-I
	18″	1256-1418-0SS	1256-1418-0SS-C	1256-1418-0SS-I
	20″	1256-1420-0SS	1256-1420-00S-C	1256-1420-0SS-I
15″	14″	1256-1514-0SS	1256-1514-0SS-C	1256-1514-0SS-I
	16″	1256-1516-0SS	1256-1516-0SS-C	1256-1516-0SS-I
	18″	1256-1518-0SS	1256-1518-0SS-C	1256-1518-0SS-I
	20″	1256-1520-0SS	1256-1520-0SS-C	1256-1520-0SS-I
16″	16″	1256-1616-0SS	1256-1616-0SS-C	1256-1616-0SS-I
	18″	1256-1618-0SS	1256-1618-0SS-C	1256-1618-0SS-I
	20″	1256-1620-0SS	1256-1620-0SS-C	1256-1620-0SS-I
	23″	1256-1623-0SS	1256-1623-0SS-C	1256-1623-0SS-I
17″	16″	1256-1716-0SS	1256-1716-0SS-C	1256-1716-0SS-I
	18″	1256-1718-0SS	1256-1718-0SS-C	1256-1718-0SS-I
	20″	1256-1720-0SS	1256-1720-0SS-C	1256-1720-0SS-I
	23″	1256-1723-0SS	1256-1723-0SS-C	1256-1723-0SS-I
18″	16″	1256-1816-0SS	1256-1816-0SS-C	1256-1816-0SS-I
	18″	1256-1818-0SS	1256-1818-0SS-C	1256-1818-0SS-I
	20″	1256-1820-0SS	1256-1820-0SS-C	1256-1820-0SS-I
	23″	1256-1823-0SS	1256-1823-0SS-C	1256-1823-0SS-I
19″	16″	1256-1916-0SS	1256-1916-0SS-C	1256-1916-0SS-I
	18″	1256-1918-0SS	1256-1918-0SS-C	1256-1918-0SS-I
	20″	1256-1920-0SS	1256-1920-0SS-C	1256-1920-0SS-I
	23″	1256-1923-0SS	1256-1923-0SS-C	1256-1923-0SS-I
20″	16″	1256-2016-0SS	1256-2016-0SS-C	1256-2016-0SS-I
	18″	1256-2018-0SS	1256-2018-0SS-C	1256-2018-0SS-I
	20″	1256-2020-0SS	1256-2020-0SS-C	1256-2020-0SS-I
	23″	1208-2023-000	1218-2023-0SS-C	1256-2023-0SS-I

FAQ

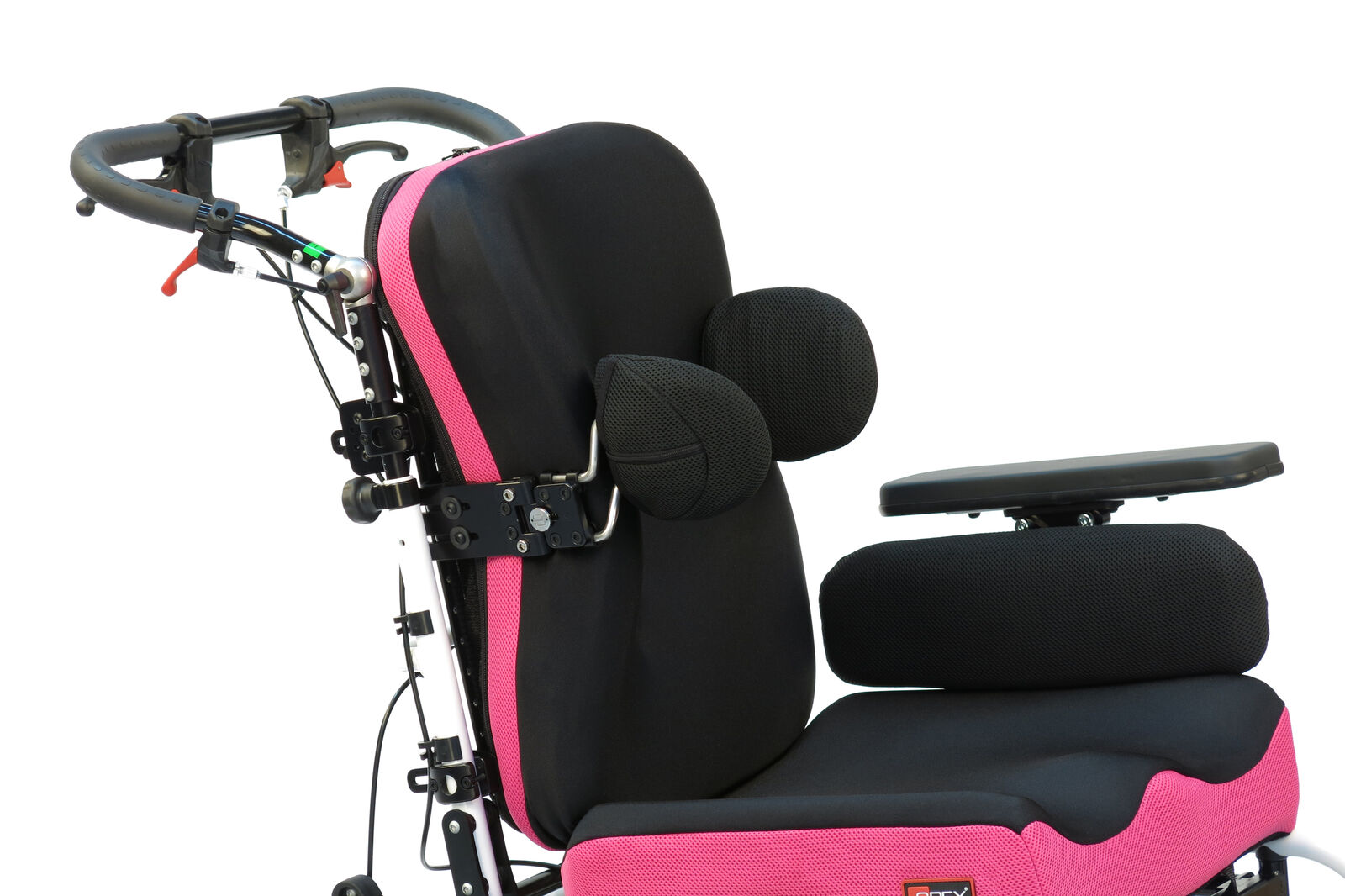

What colours are available to select from for my back support cover?

You can choose from Granite Grey, Ocean Blue, Royal Purple, Calypso Pink, Chilli Red, Mango Orange, Bumblebee Yellow, Leaf Green, or the standard Black, to brighten up your Spex cushion, back support, and head support!

Learn More!
