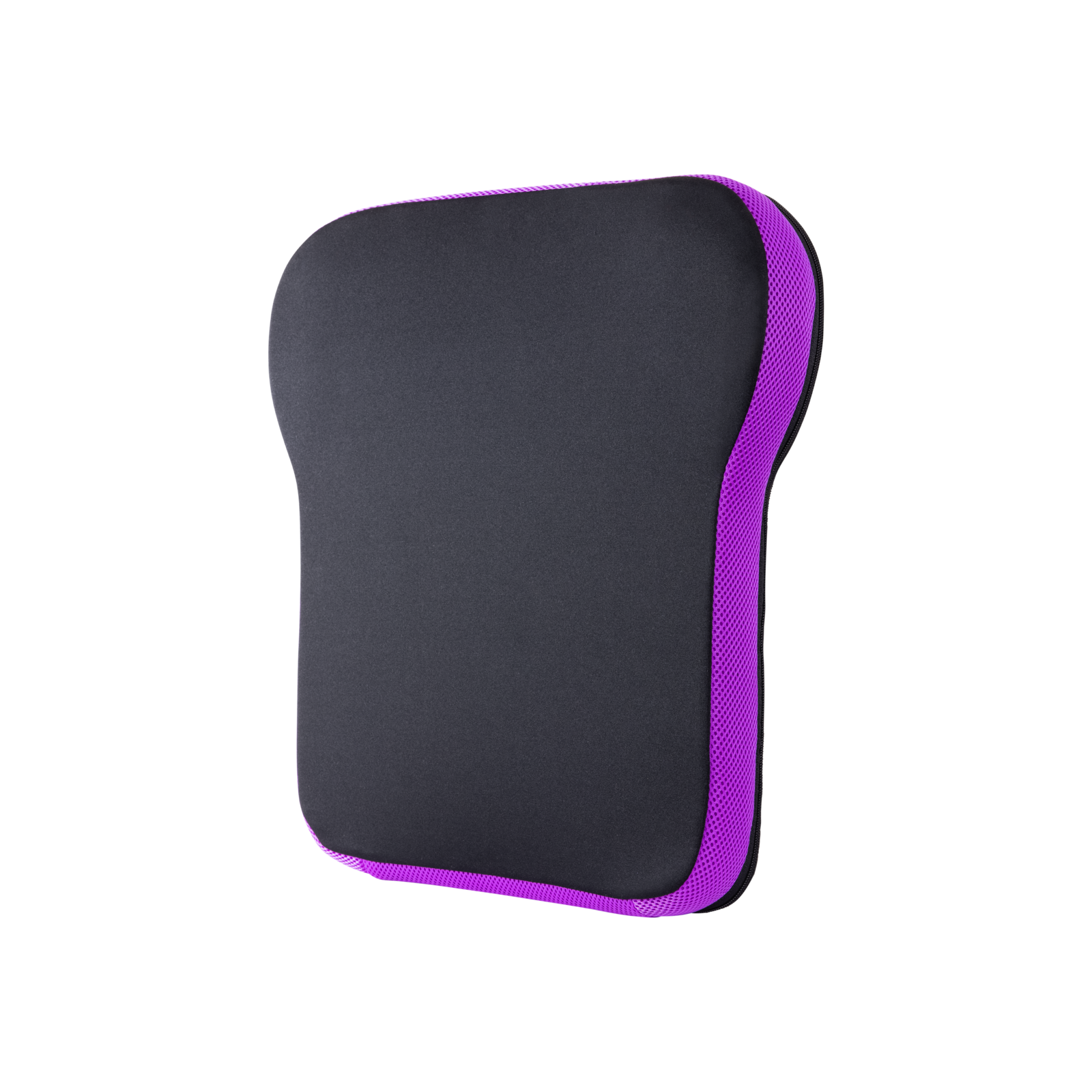

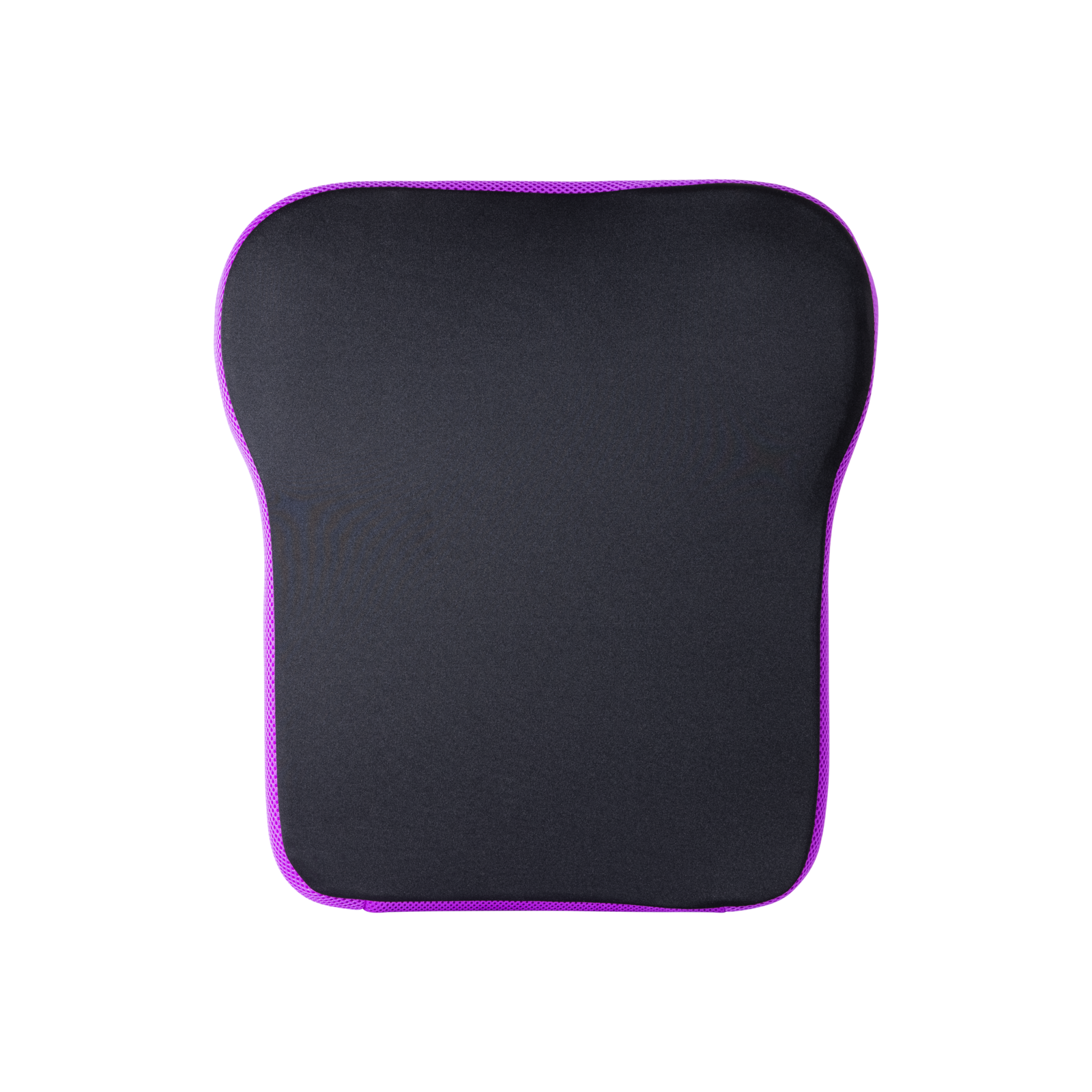

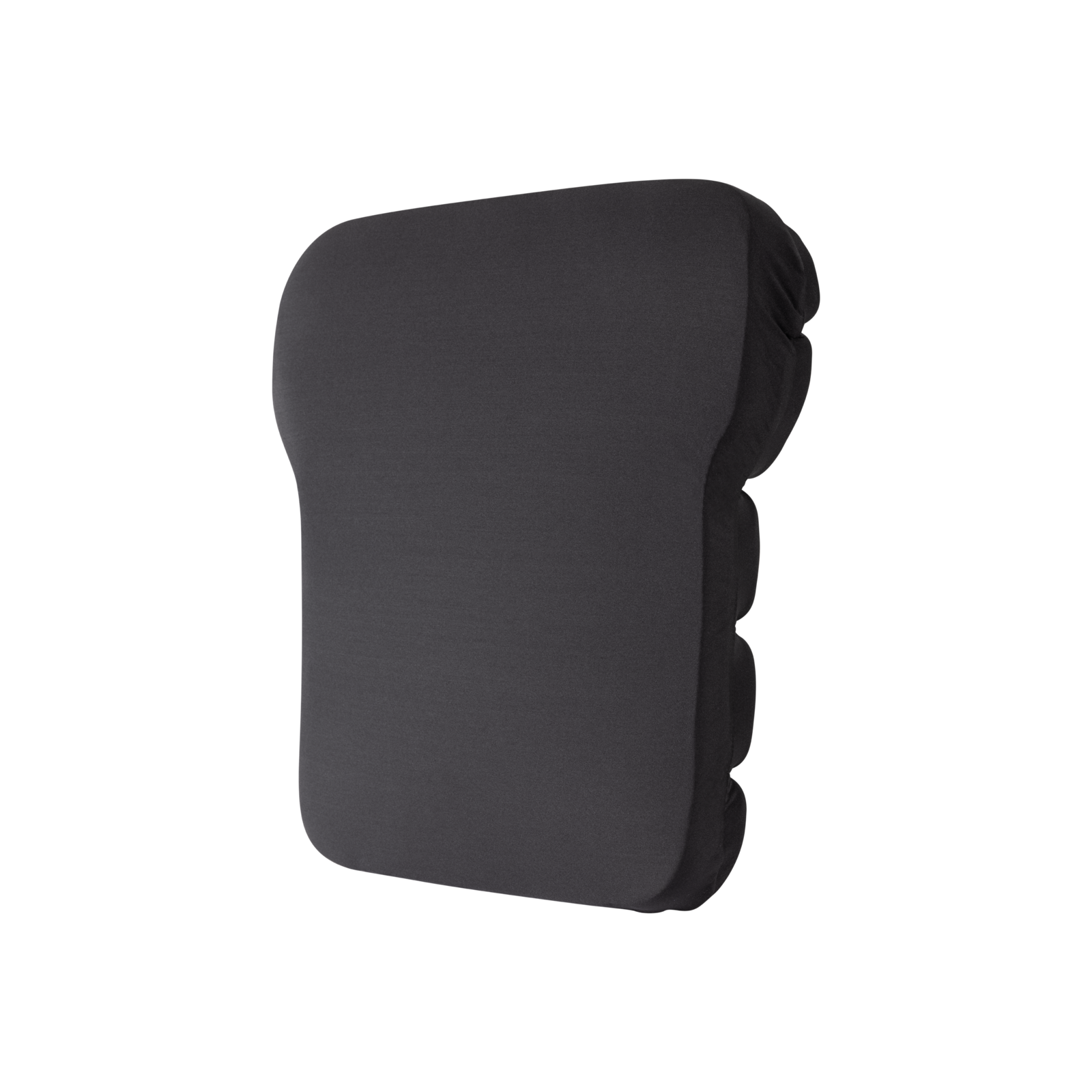

Easily solve upper torso positioning needs for most wheelchair users with the Spex Classic T Shape Back Support.
The T Shape Back Support incorporates the classic Spex contouring cube system to allow on-the-spot customisations for torso comfort and asymmetry needs, whilst also providing greater stability for the user’s upper body.
Greater stability in the trunk can allow for improved head and neck movements, and greater contact surface can aid with pressure distribution for comfort. The contouring and immersion ensures that individual body shape and comfort needs are easily responded to with the T Shape Back Support.

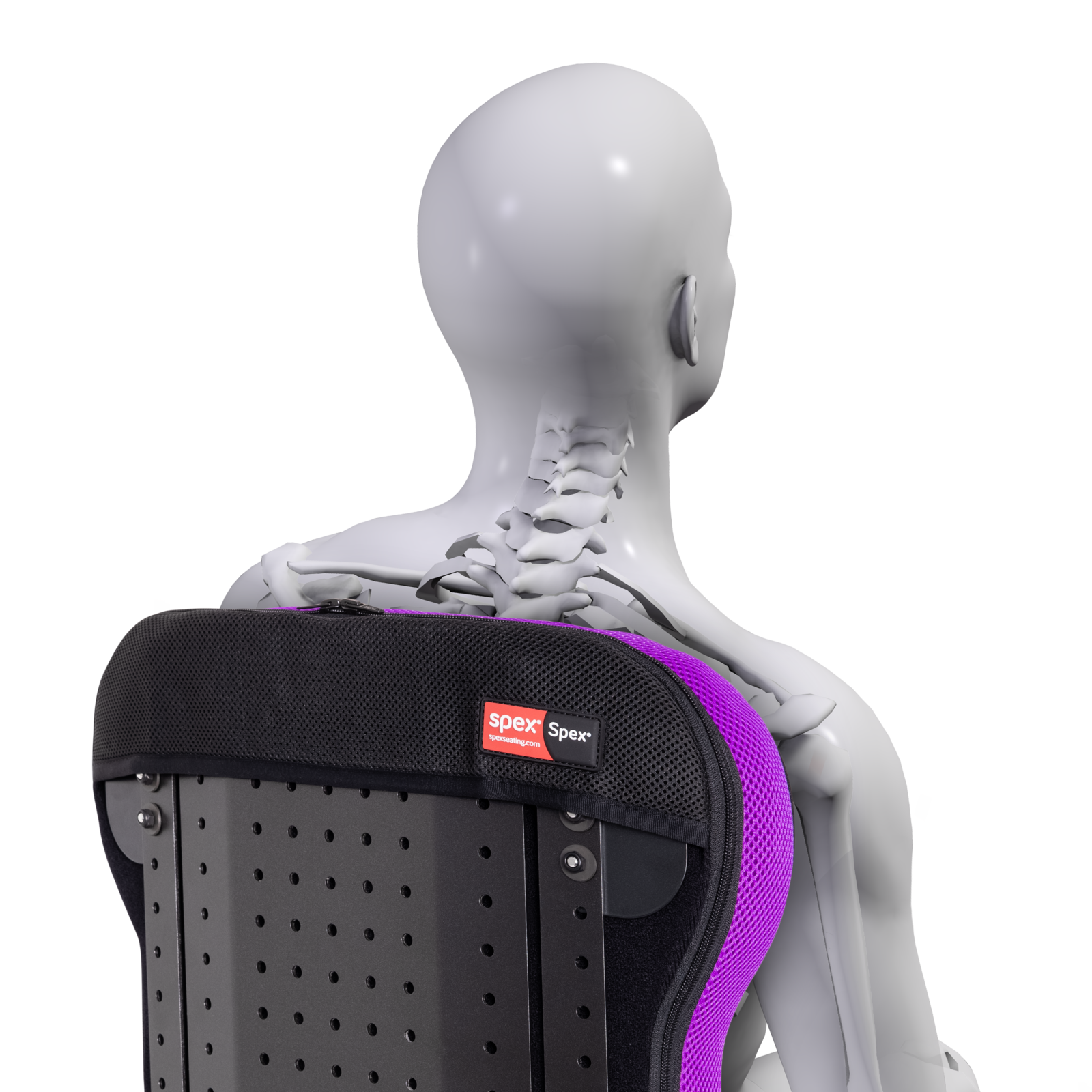

The T Shape provides superior upper back and shoulder support, and is especially useful in situations where the user requires tilt-in-space and their upper body and shoulders will have more contact with the contact surface of the back support.
- Superior upper back and shoulder support
- Effortless customisations
- On-the-spot adaptions for changing postural needs
- Instant results
- Cubes can be removed and added at any time

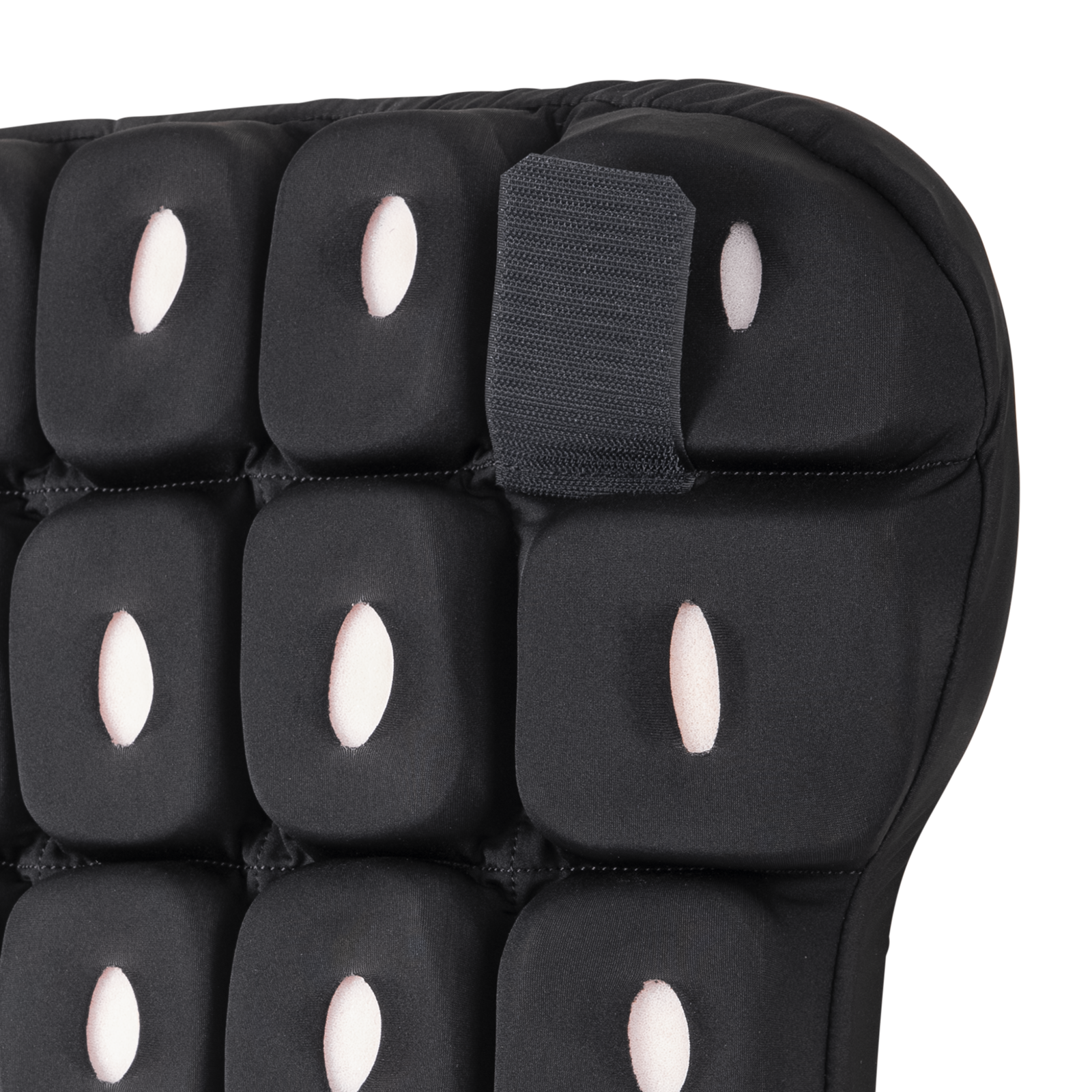

- Contouring doesn’t move or slip out of adjustment
- Additional contouring support wedges can be used to further enhance the degree of contouring for individual body shapes

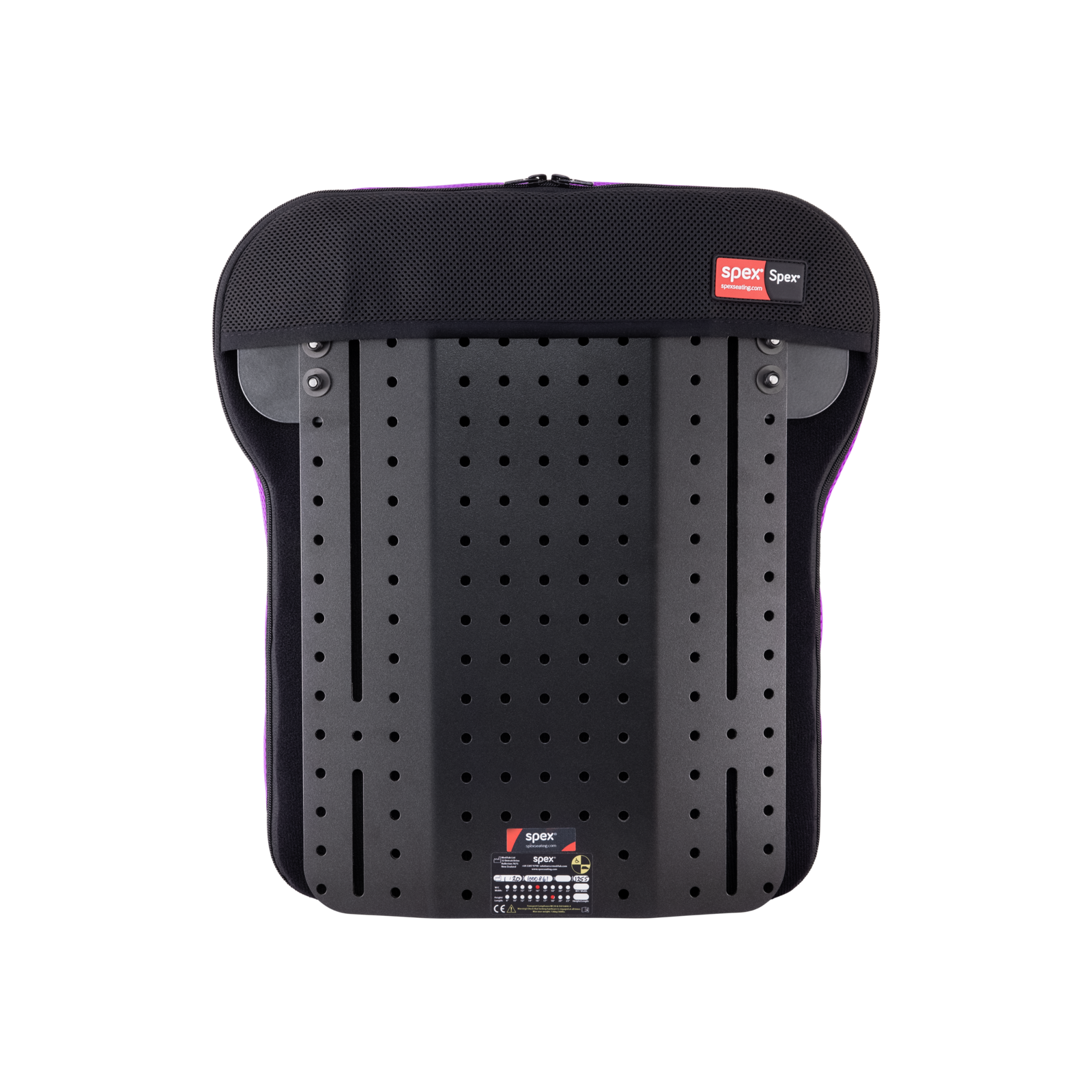

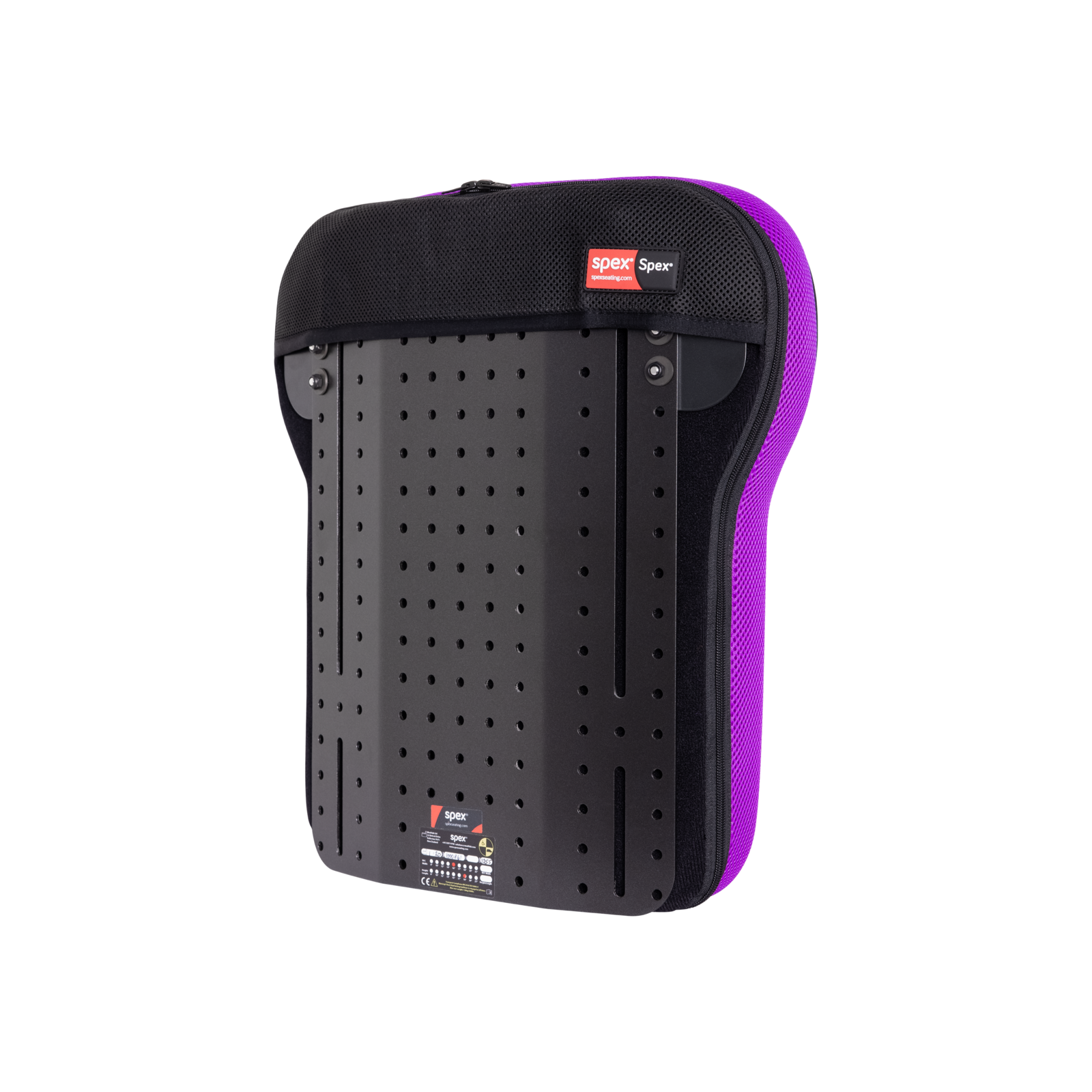

While the standard Classic Back Support style with its rectangle shape fits between the wheelchair canes, the T Shape sits in front of the wheelchair canes due to the additional shoulder support components.
Designed for the individual who:
- Requires a comfortable back support to reduce torso pain
- Requires spinal alignment and support
- Has skin breakdown/pressure care needs
- Has bony or protruding skeletal prominences
- Have changing postural needs
- Pertains a maladaptive or asymmetric posture
| For Mild Bony Prominences | For Immersion | For Asymmetry |
|---|---|---|
 |
 |
 |
|

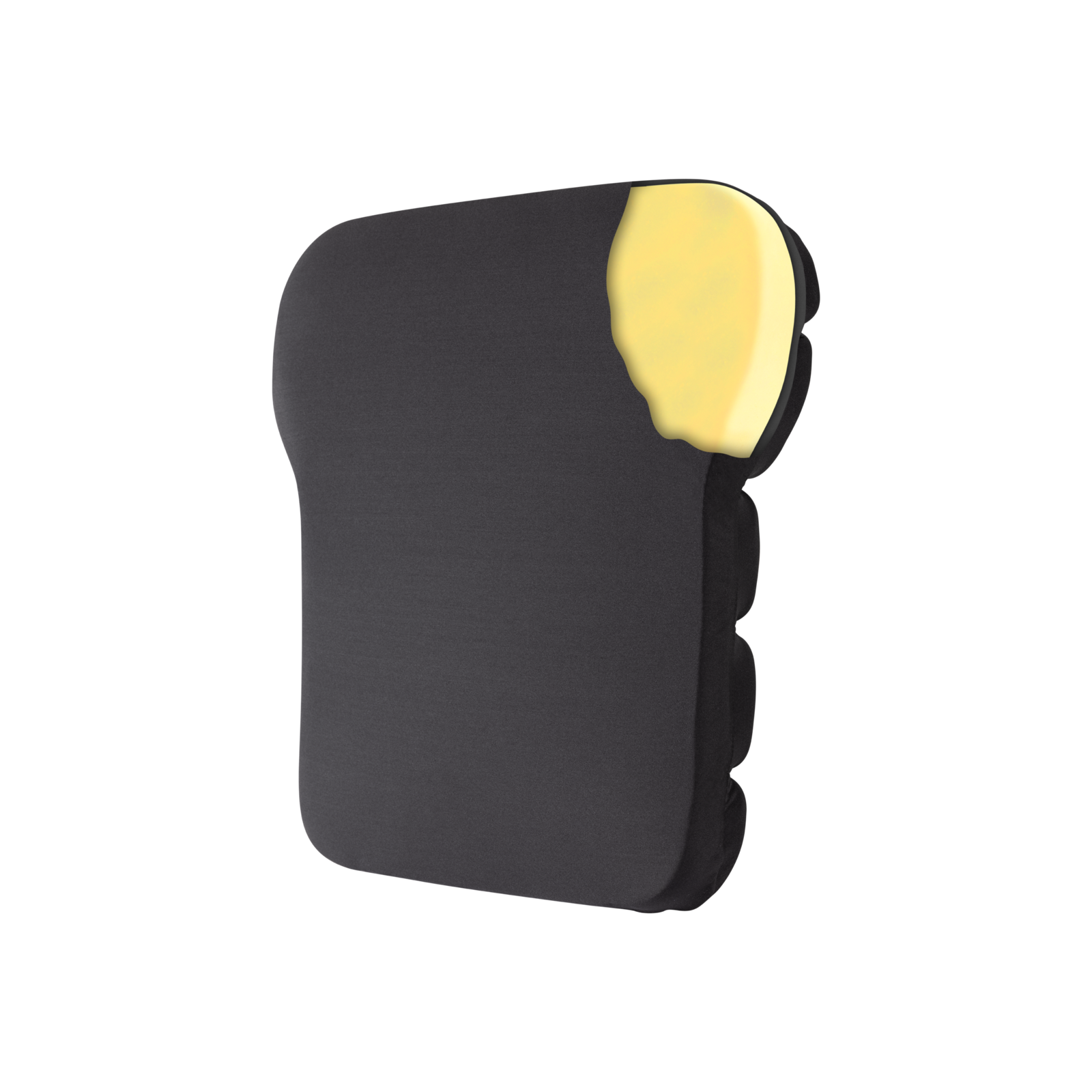

Without even adjusting the cube system, the Spex back support has slight contouring and integrates a comfortable pressure reducing foam surface layer to absorb mild bony prominences and asymmetries for uniform torso contact. |
For individuals that require immersion into the back support, simply adjust the cube contouring cell system to configure for a perfect fit and shape for the user’s back. |
For asymmetrical or maladaptive postures, the contour can be arranged to provide the matching shape required to support the user’s torso profile. |

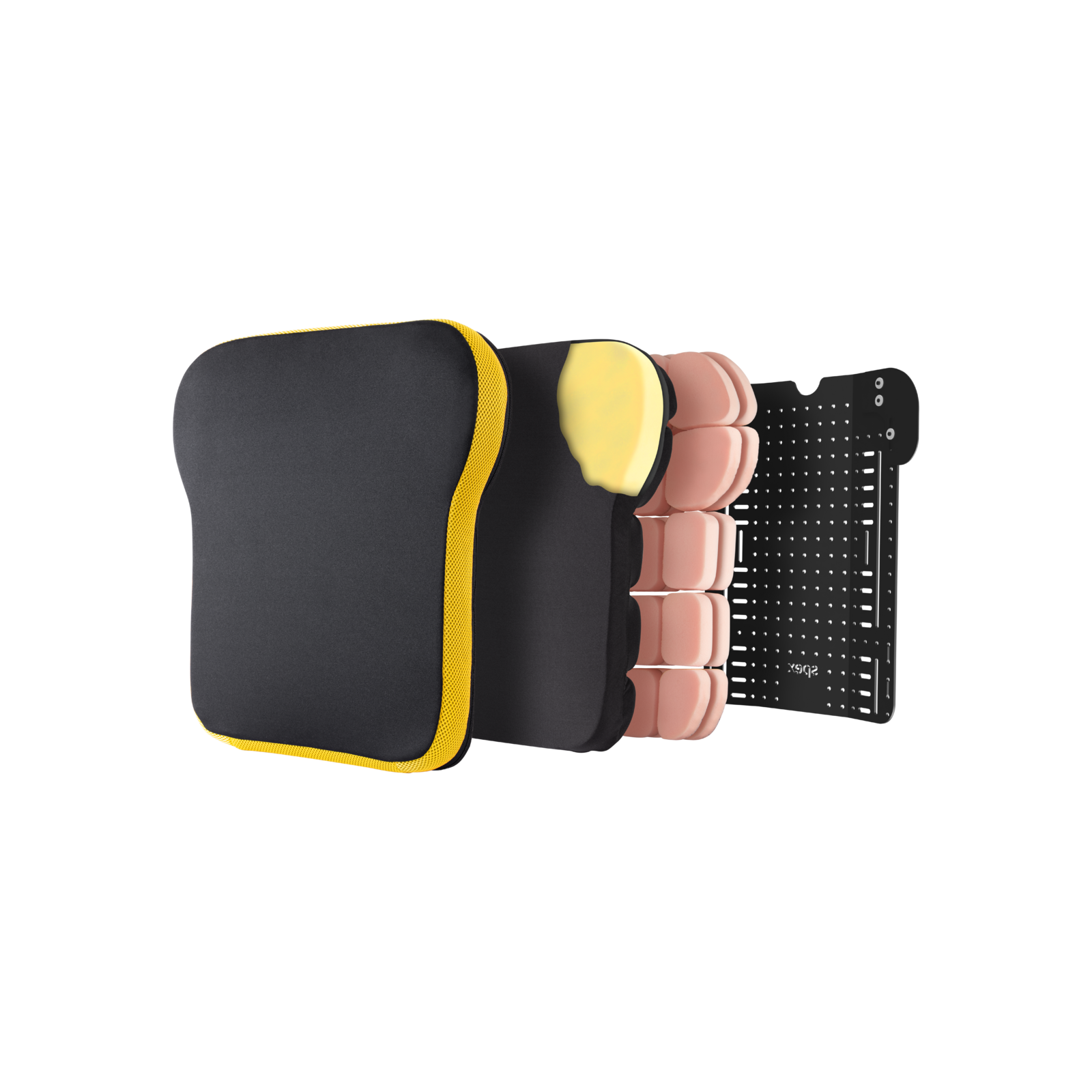

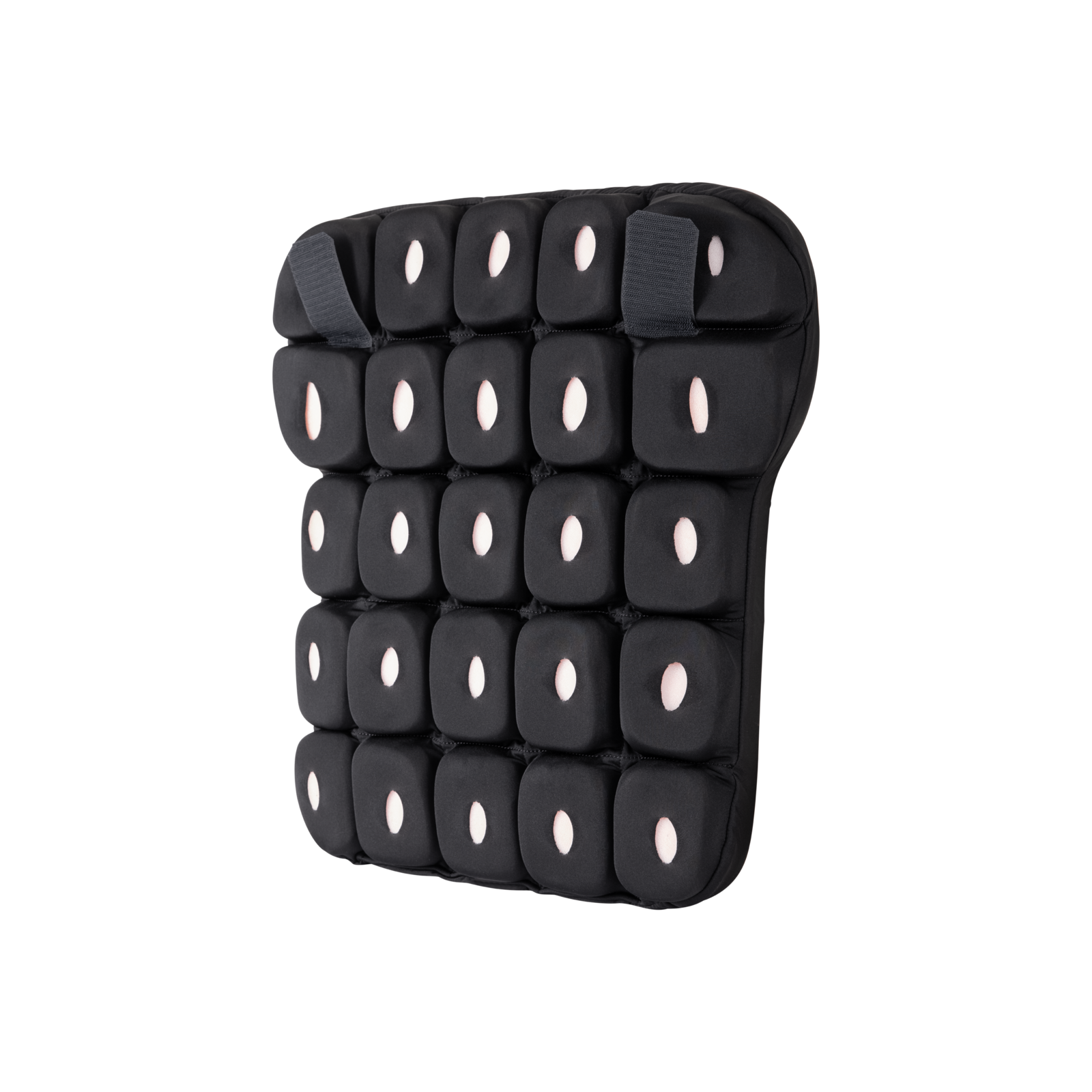

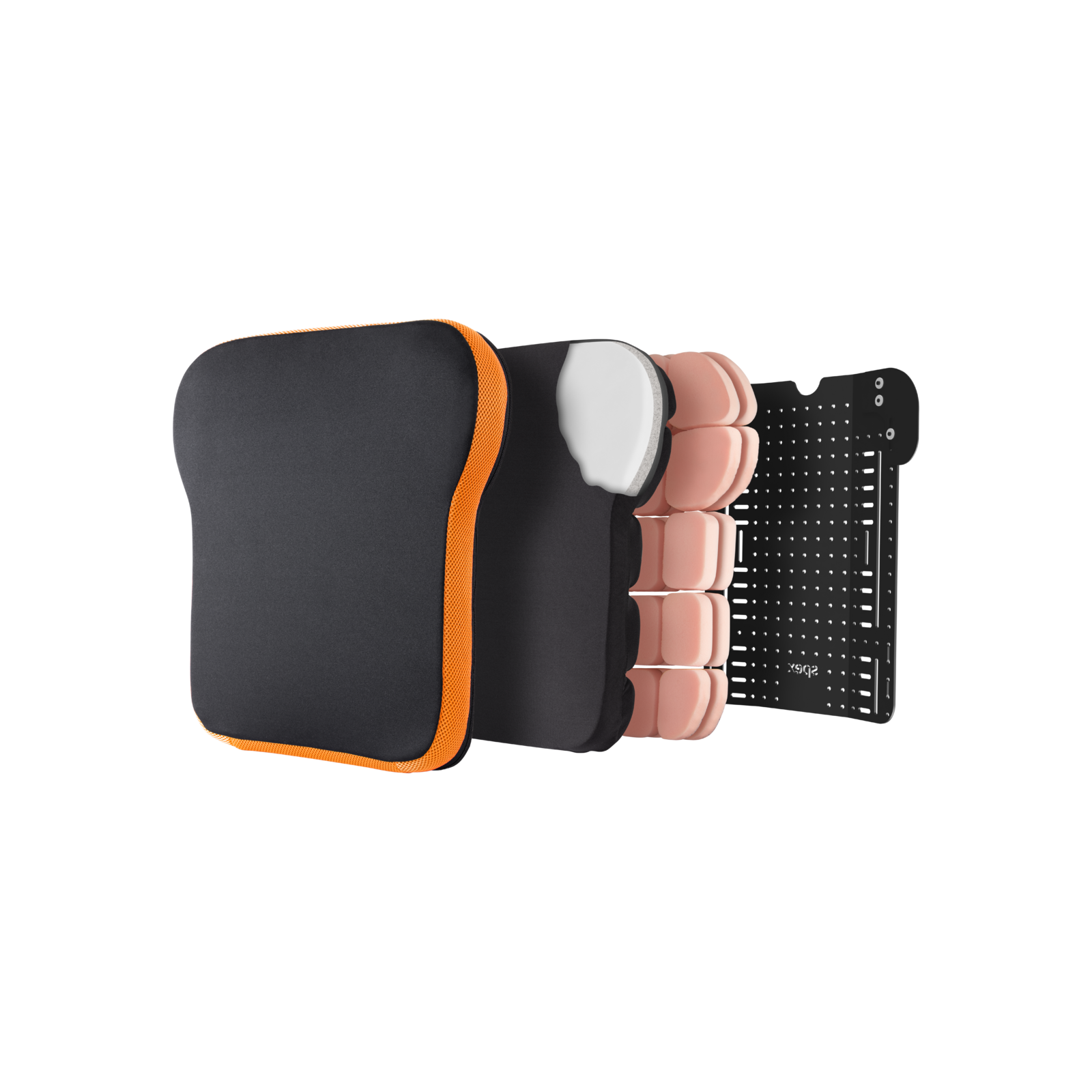

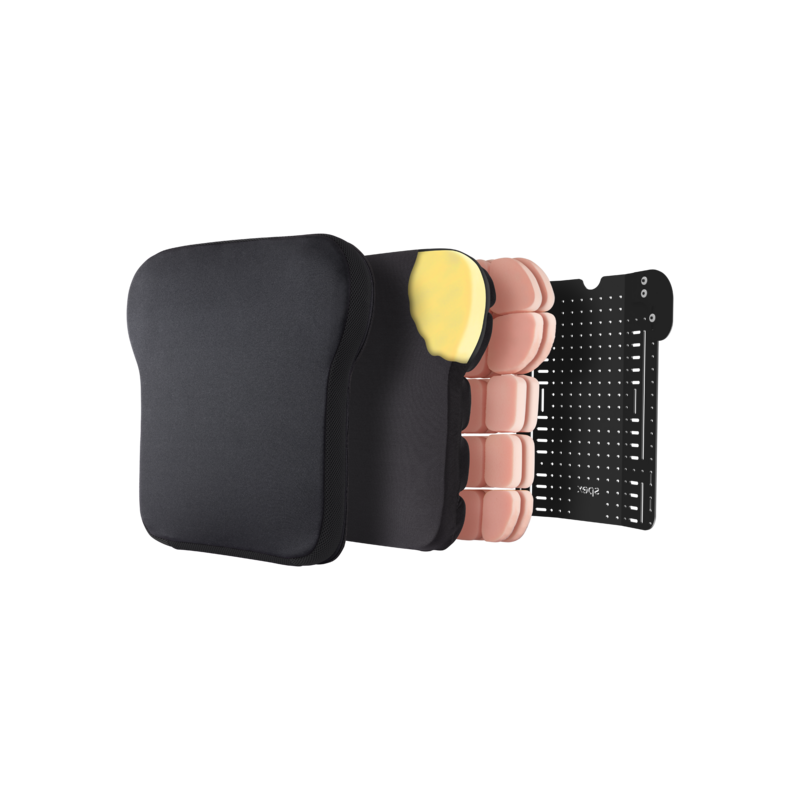

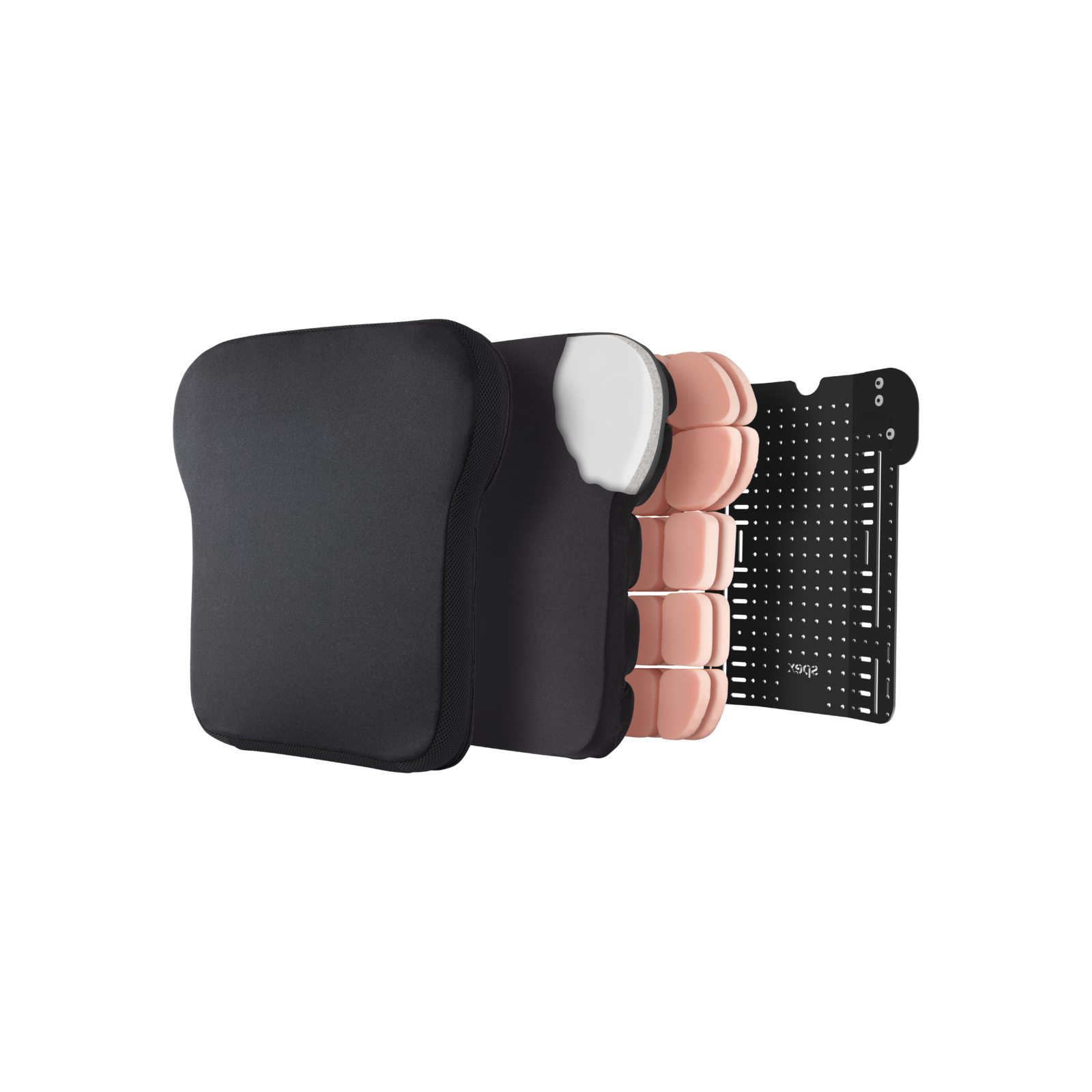

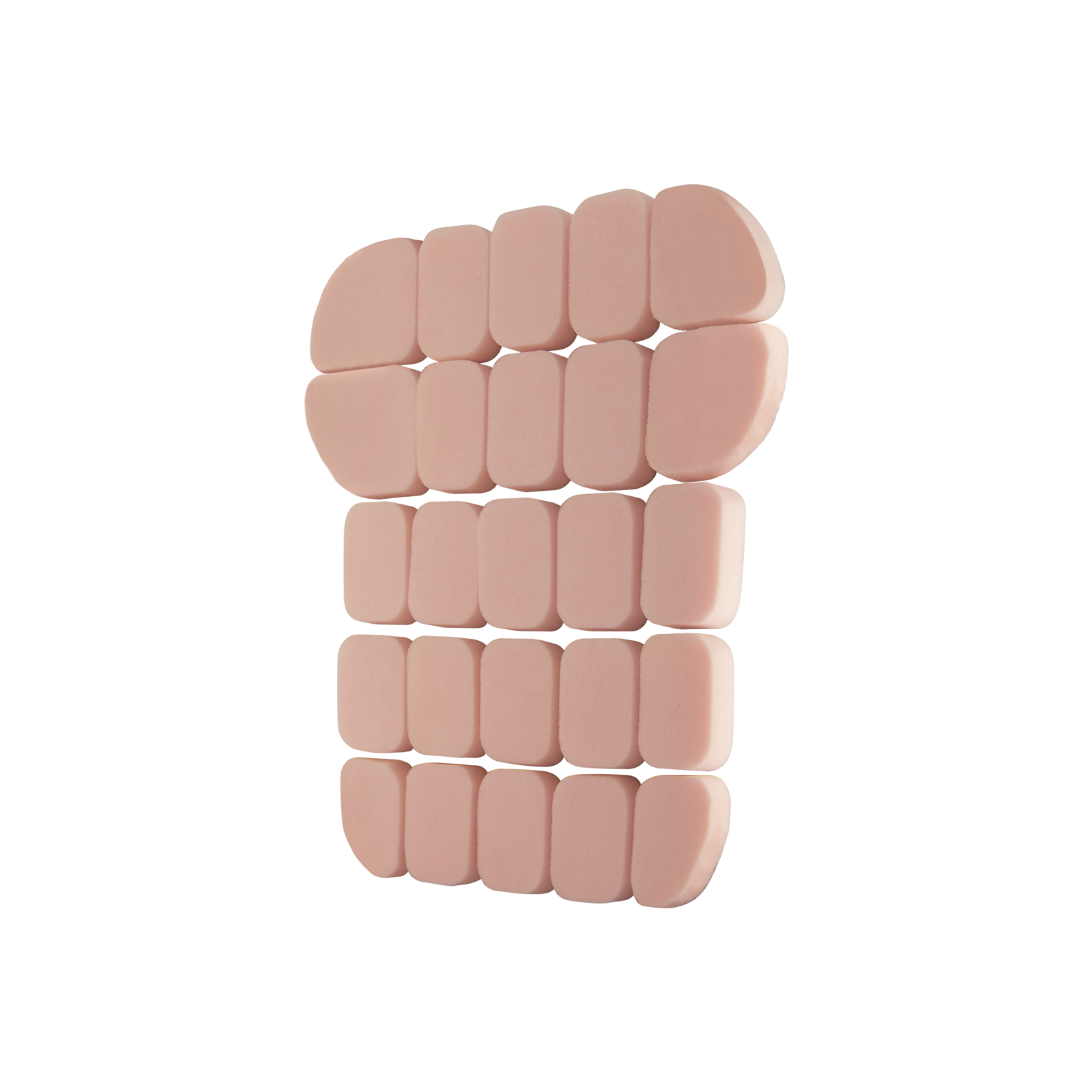

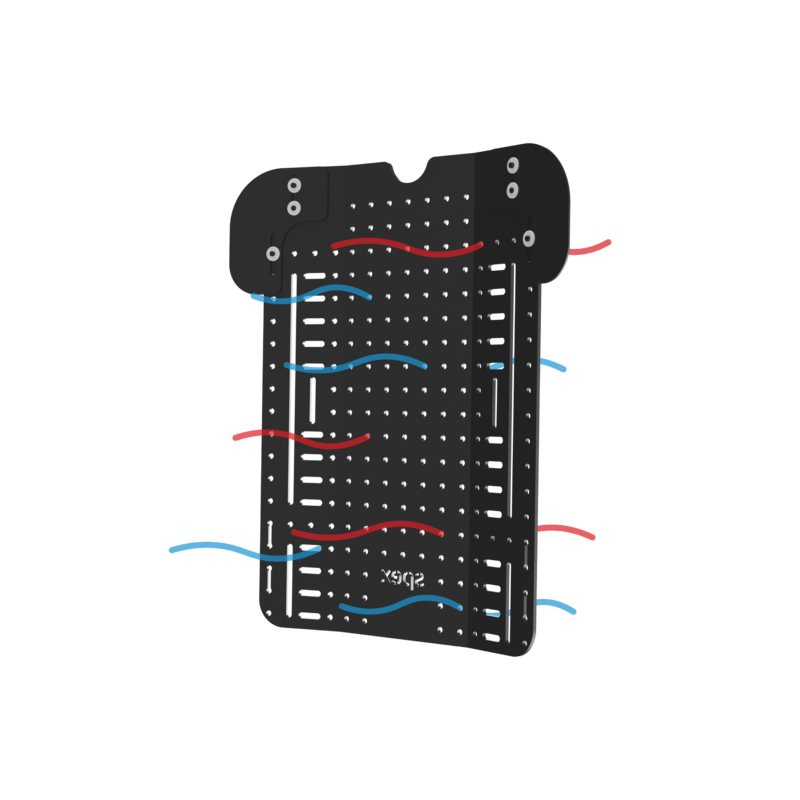

A special feature of the Spex back support is the adjustable contouring-cell cube system which incorporates into the upholstery unit of the backrest. Easy configurations are performed for asymmetrical trunk postures without the need for complicated custom/bespoke seating.

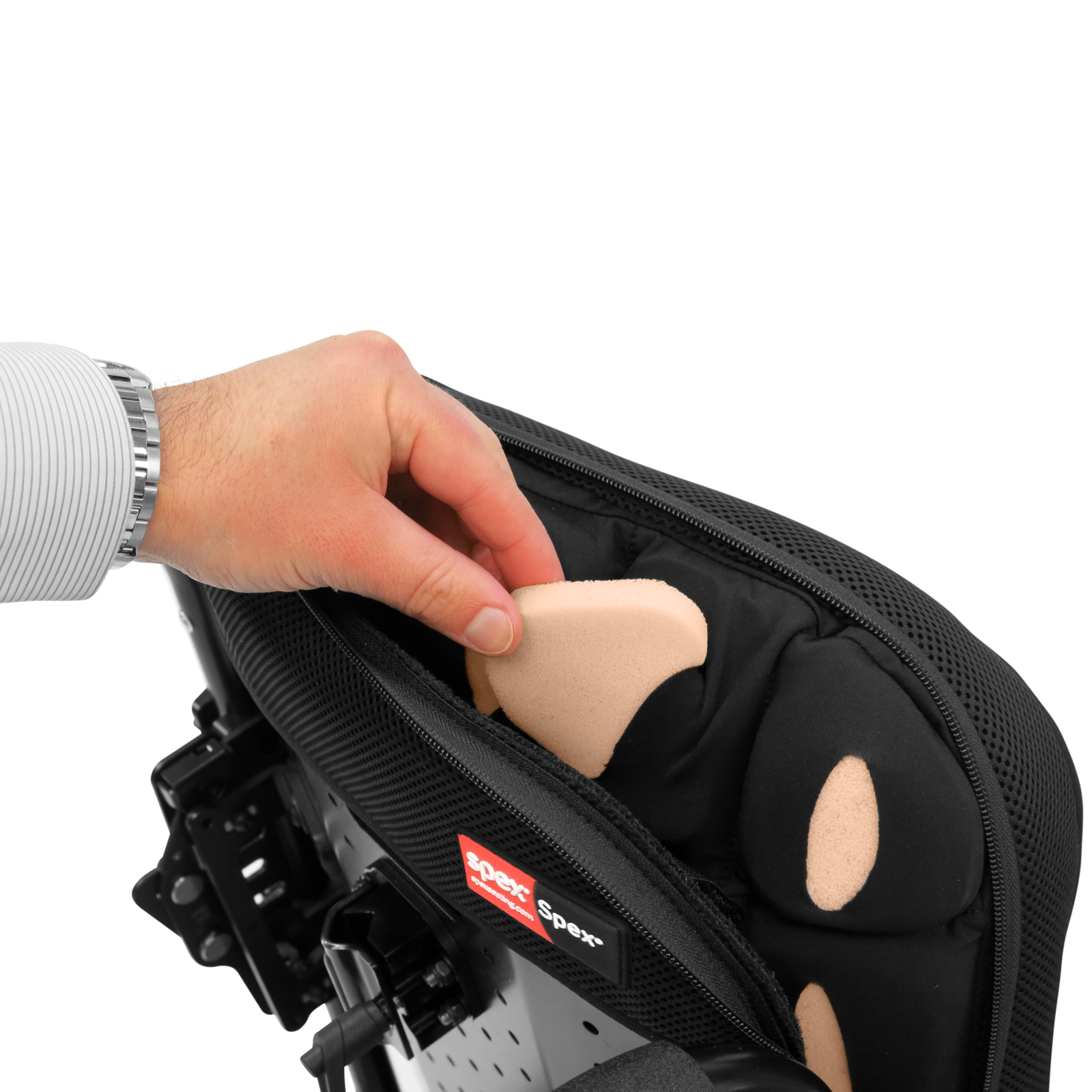

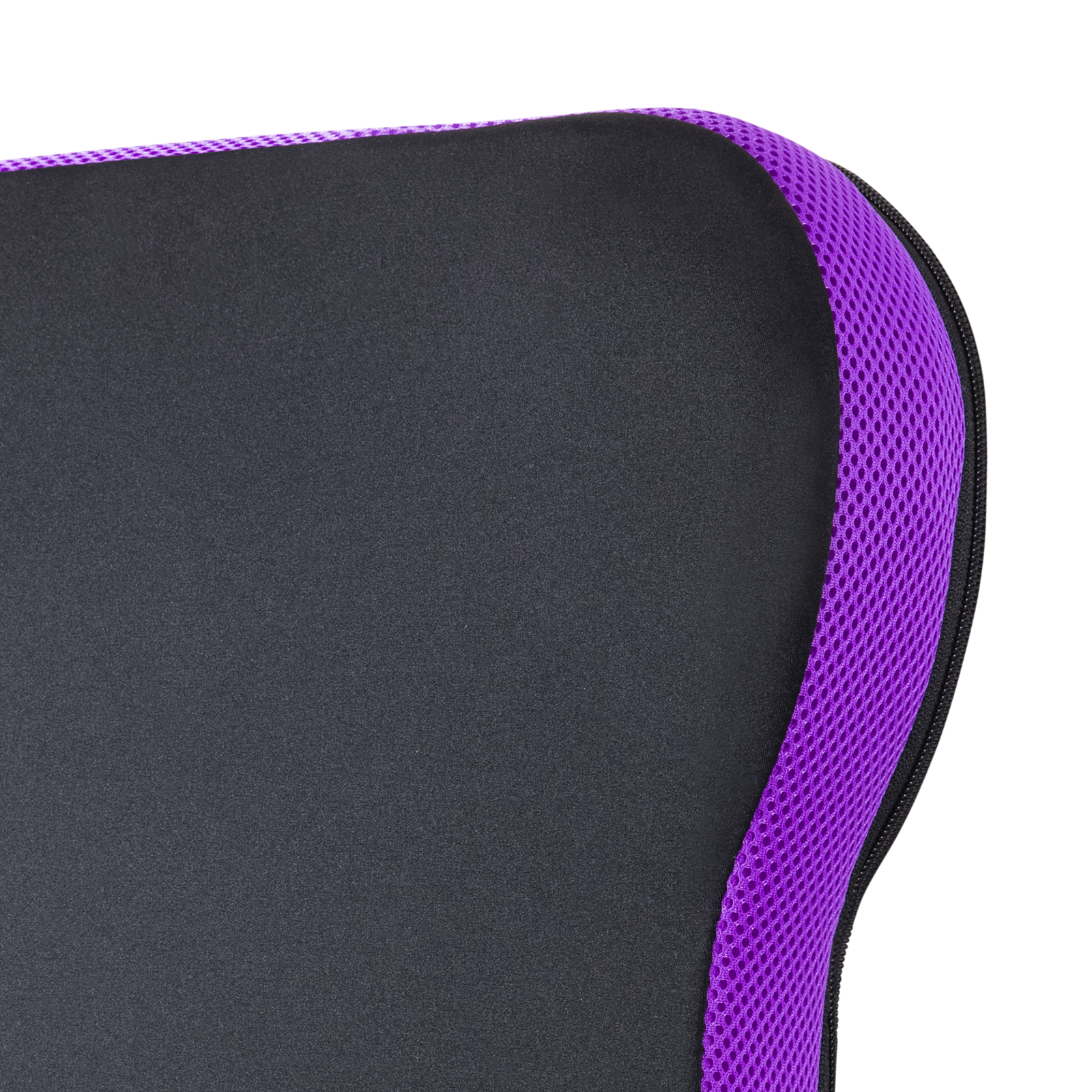

The cover un-zips from the top of the back support and remains fixed to the shell whilst you remove the inner upholstery unit. Changes to the contouring are made
on-the-spot for instant results.
Further postural enhancements to the degree and depth of contouring are achieved with the positioning kit of support wedges (included with every Spex back support).
Back Support Contouring Charts
Asymmetric Contour Wedge Kit
Contains four foam wedges to provide greater contouring.
Dimensions:
- 20 x 20 x 4cm
- 20 x 10 x 4cm
- 20 x 10 x 4cm
- 4 x 20 x 40cm
Product Code:
1209-2720-300
Spex Lateral Trunk Supports
Select Hardware
- Fixed Bracket
- Standard Swing-Away Bracket
- Axial Swing-Away Bracket
Select Bracket Upgrade
- Cane Mount
- DeepContour backrest bracket
- Extension for DeepContour (commonly used with SuperShape Backrest
Select Comfy-Cover
- Extended padding over mechanism to protect arms from metal hardware
- Clever release strap for operating the swing away movement
- Easy release for users who have limited hand function and need independent use to open the laterals for transfers
Spex Stylo Head Supports
| Circle | Comfort | Contour |
 |
 |
 |
| Unique minimal head support providing direct posterior support for users with good head control.
Available in two sizes: Circle 150 and Circle 250. |
General use head support pad suited for transit and travel.
Available in two sizes: Comfort 250 and Comfort 350. |
Contoured shaped pad for superior occipital and suboccipital support.
Available in two sizes: Contour 250 and Contour 350. |
| Standard Lateral | Extended Lateral | Adjustable Lateral |
 |
 |
 |
| One-piece lateral head support solution for moderate head positioning needs.
Available in two sizes: Paediatric and Adult. |
One-piece lateral head support solution for complex head positioning needs.
Available in two sizes: Paediatric and Adult. |
A superior adjustable lateral head control system with individualised ‘tuning’.
Available in two sizes: Adjustable Lateral 150 and Adjustable Lateral 250. |
Custom head supports are available – please contact us for more information.

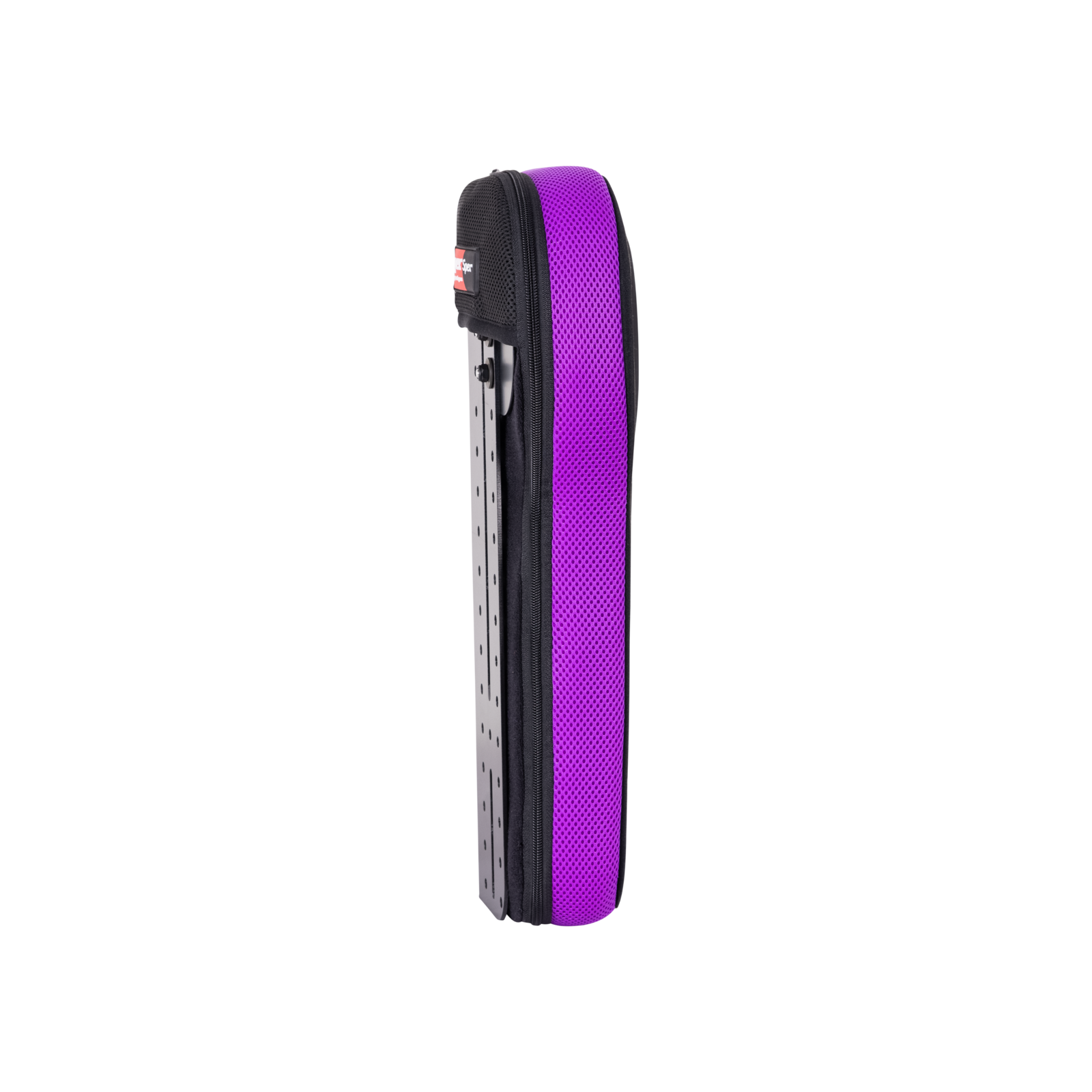

Thickness of the back support is 7 cm. The Spex Classic Back Support is designed to be contoured and this measurement only reflects the thickness without any of this contouring. Therefore the back support thickness will likely be less than 7cm in some sections and more in others.

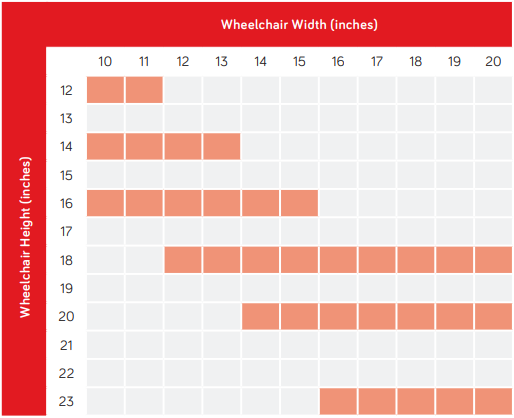

- Red squares are standard sizes
- Non-standard or custom sizes are available on request.

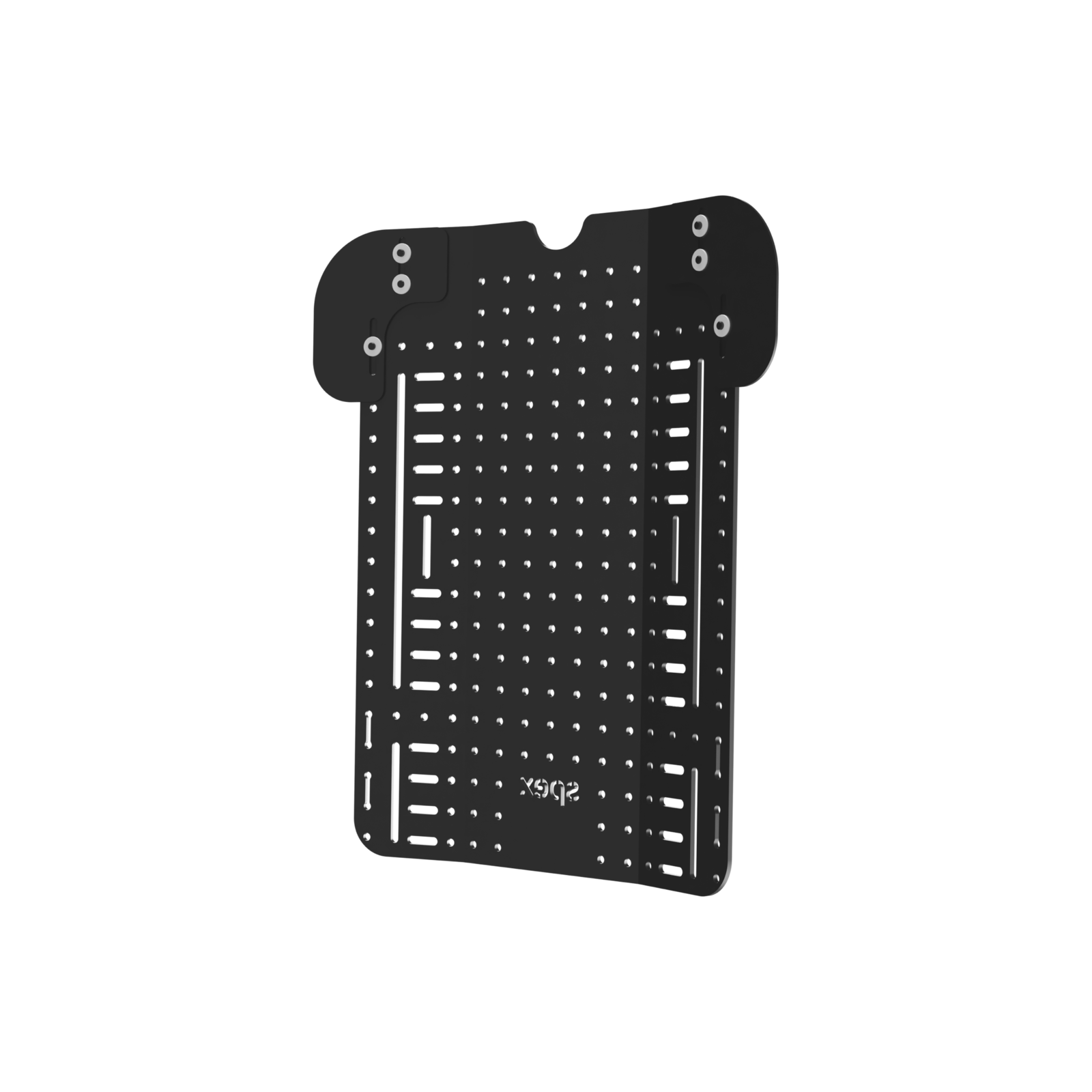

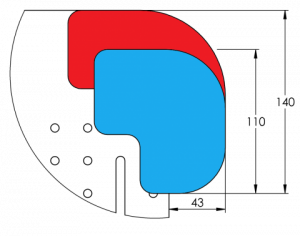

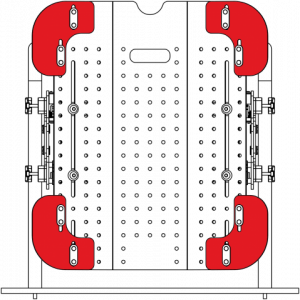

When ordering a T Shape or Surface back support, the standard plates used are shown below. Plates shown in blue = 10-15″ back support. Plates shown in red = 16″+ back support.
